B125
High Lumen Efficacy 100lm/W
Body - Die cast aluminum
Reflector - PMMA optical lens
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20 COB McA Step 3 220~240V
1 B 1 2 5 - B - 3 0 - 1 0 - 0 - A
Model B125 |
1 B 1 2 5 - B - 3 0 - 1 0 - 0 - A |
||||
|
Size |

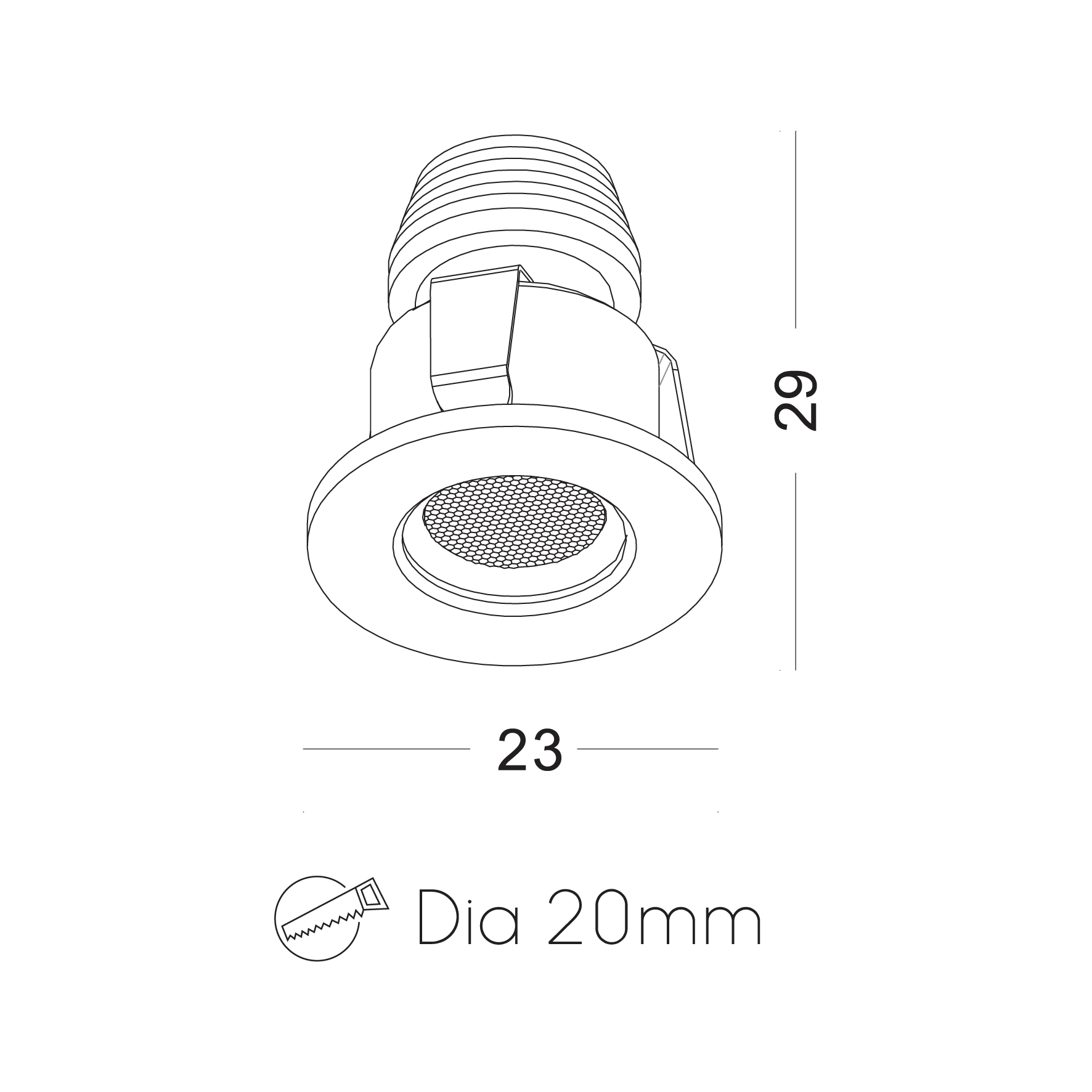

A Ø23 X 29mm / Cutout Ø20mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
10° |
20° | 30° |
|
|
|
Kelvin |
40 |
60 |
R |
G GREEN |
B BLUE |
|
Finishing |
Silver | Gray | Black |
Gold |
|
|
Wattage |
01 | ||||
