B131
High Lumen Efficacy 68lm/W
Body - Die cast aluminum
Diffuser - Tempered clear glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 06 COB McA Step 2&3 220~240V
1 0 B 1 3 1 - W - 2 7 - 2 9 - 0 - A
Model B131 |
1 0 B 1 3 1 - W - 2 7 - 2 9 - 0 - A |
||||
|
Size |

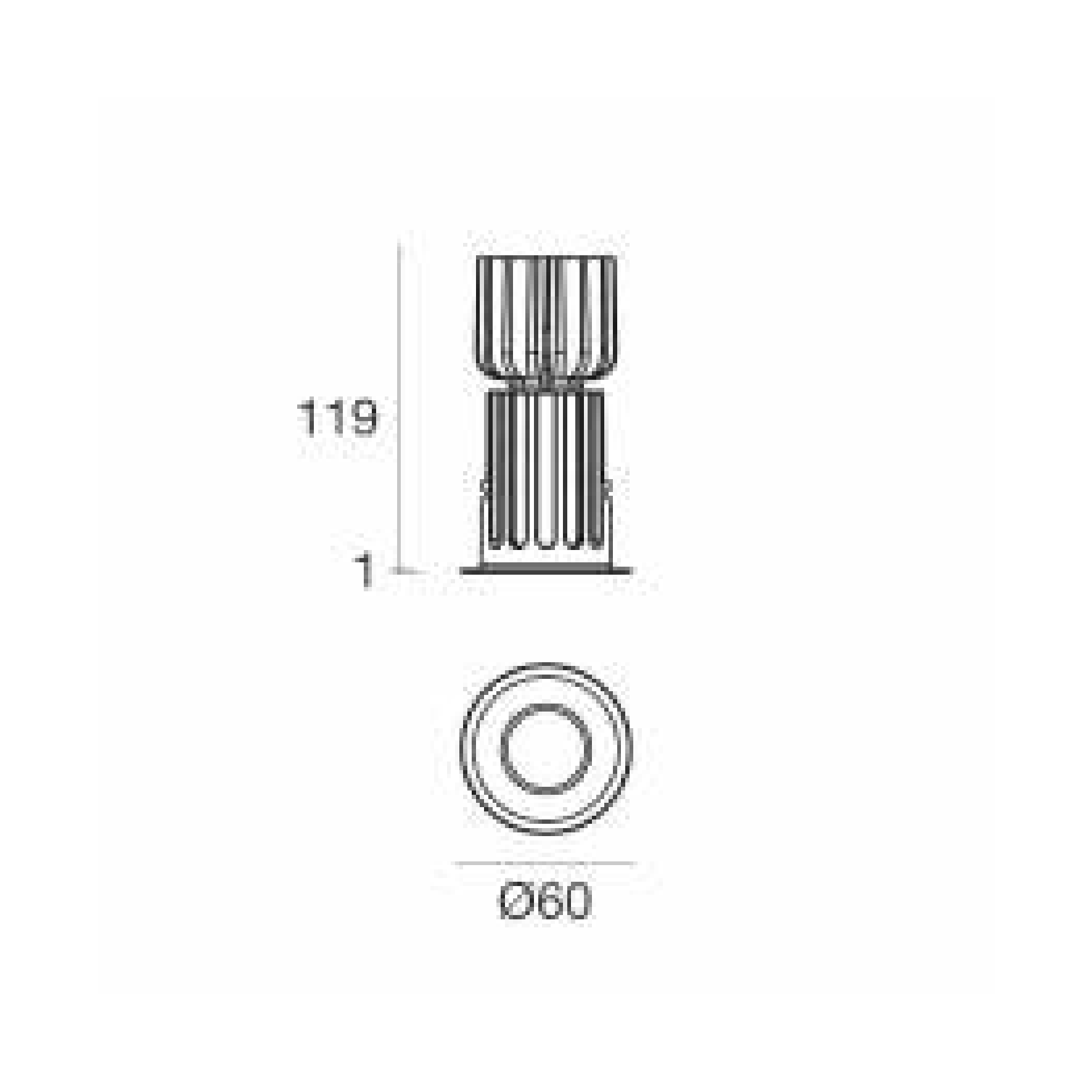

A Ø60 X 120mm / Cutout Ø80mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
29° |
47° |
|
||
|
Kelvin |
30 |
40 |
50 |
||
|
Finishing |
White | Black |
|
|
|
|
Wattage |
07 | 08 | 10 | ||
