B142
High Lumen Efficacy 100lm/W
Body - Die cast aluminum with polyester powder coated
Diffuser - Tempered clear glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 44 LED 220~240V
6B142-W-30-MBA-0-A
Model B142 |
6B142-W-30-MBA-0-A |
||||
|
Size |

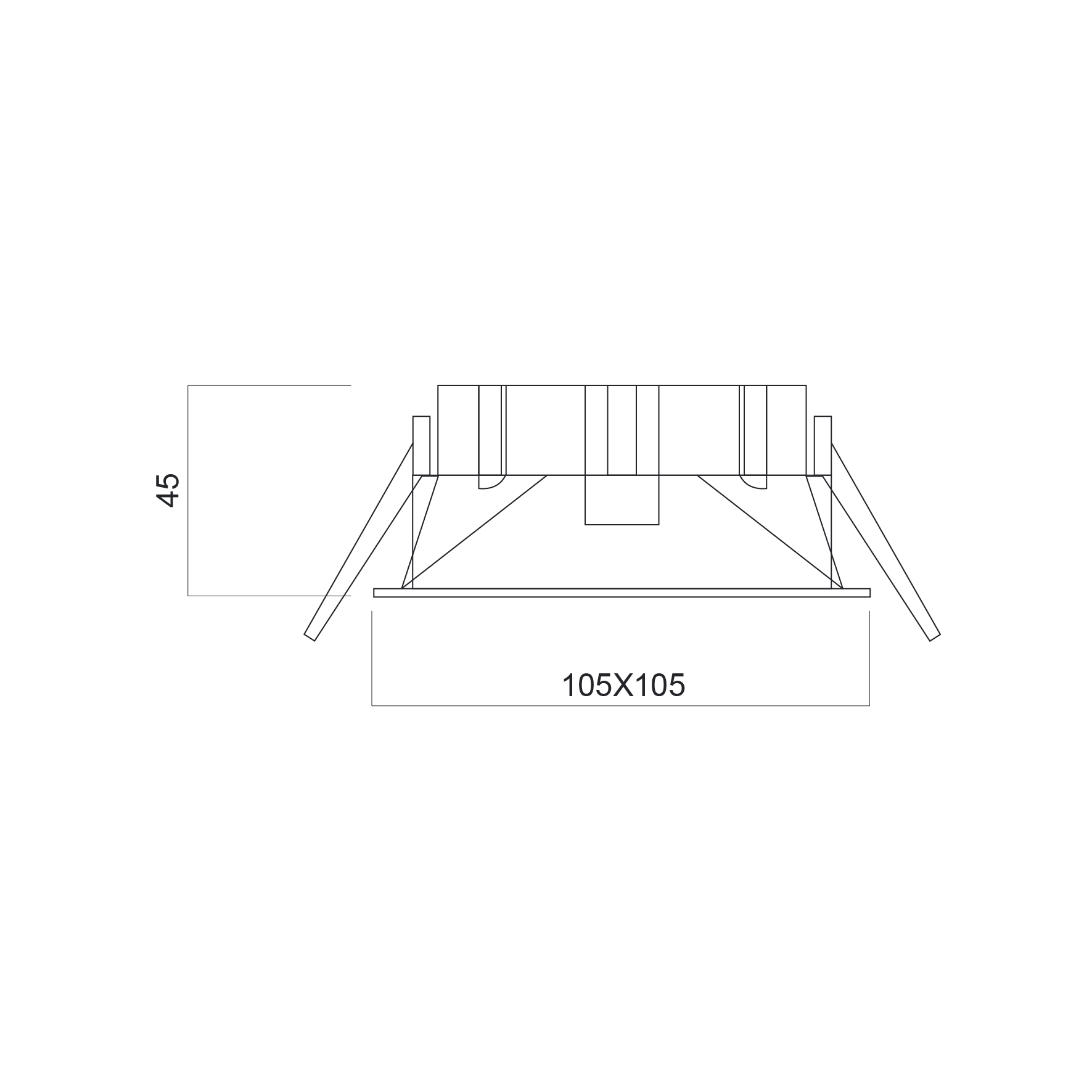

A 105 X 105 X H 45mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
Multi Beam Angle |
|
|||
|
Kelvin |
30 |
35 |
40 |
45 4500K |
60 6000K |
|
Finishing |
White | Silver | Chrome |
Gold |
Matt |
|
Wattage |
06 | 07 | 08 | 10 | 12 |
