B143
High Lumen Efficacy 100lm/W
Body - Die cast aluminum with polyester powder coated
Reflector - Prismatic aluminum
Diffuser - Tempered clear glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 44 LED 220~240V
8B143-W-30-20-0-A
Model B143 |
8B143-W-30-20-0-A |
||||
|
Size |

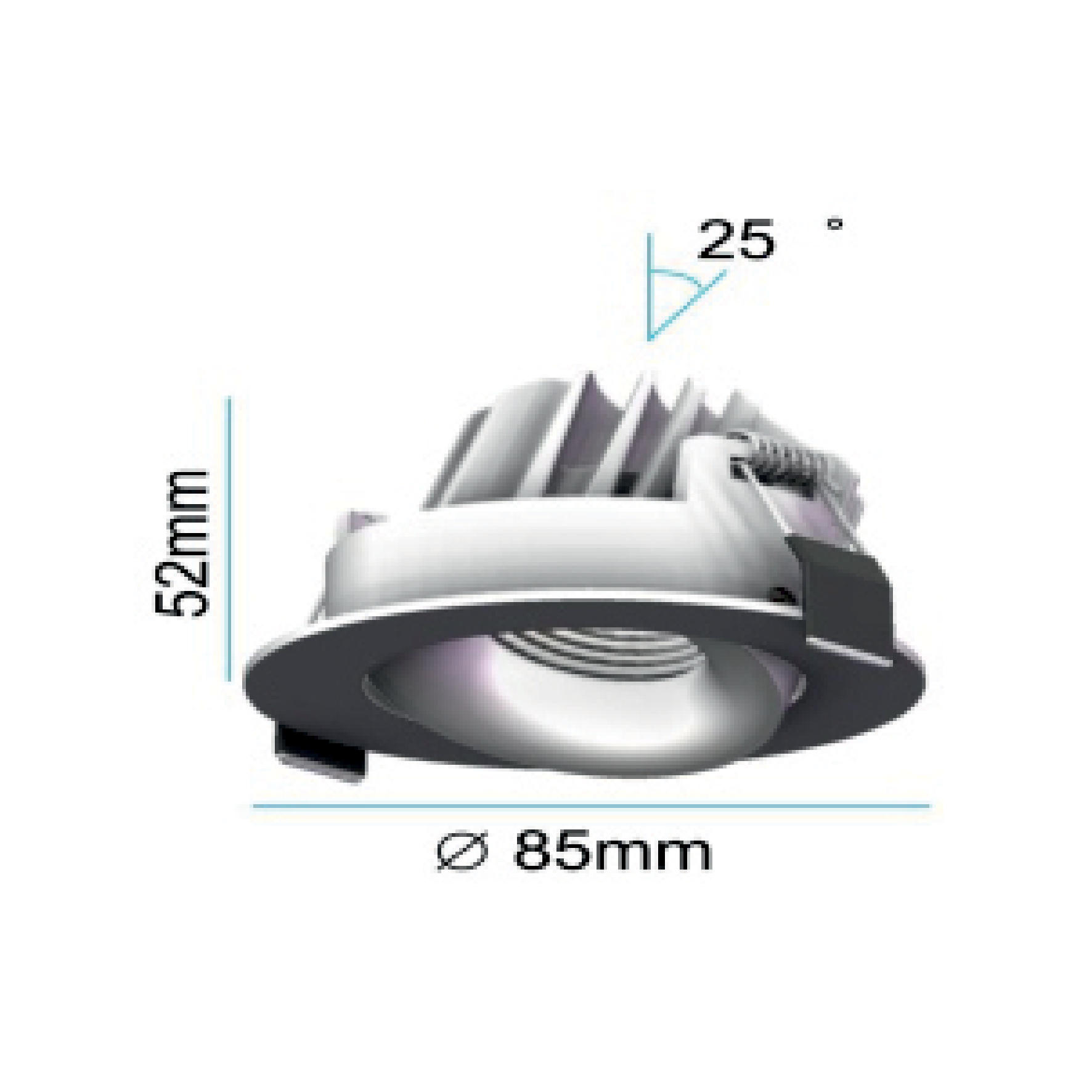

A Φ85 X 52mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
20° |
40° | 60° |
|
|
|
Kelvin |
27 |
30 |
40 |
||
|
Finishing |
White | Black | |||
|
Wattage |
08 | 10 | 12 | ||
