B601
High Lumen Efficacy
Body - Die cast extruded aluminum
Diffuser - Polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 08 SMD 3014 McA Step 3 12V
L C S 6 0 1 6 0 1 M U 2 0
Model B601 |
L C S 6 0 1 6 0 1 M U 2 0 |
||||
|
Size |

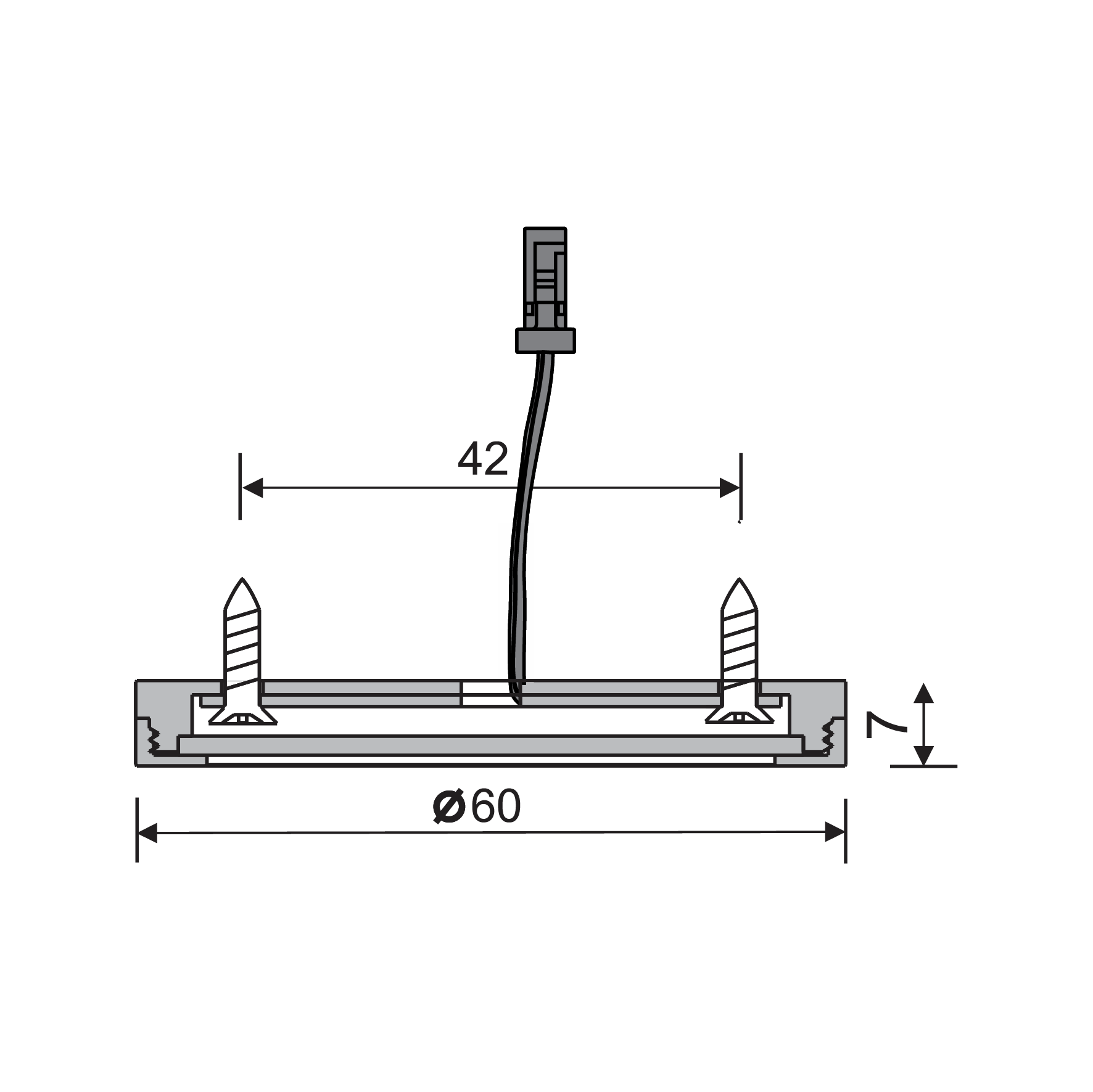

A Ø60 X 7mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
|
|
|
||
|
Kelvin |
27 |
30 |
40 |
50 5000K |
|
|
Finishing |
White |
Grey |
Black |
|
|
|
Wattage |
01 |
|
|
|
|
