D30
High Lumen Efficacy
Body - Die cast aluminum
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
LANDSCAPE, GARDEN AREAS, PATHWAYS
IP 65 IK 06 LED McA Step 3 DC 12V
3D30-B-27-360-0-A
Model D30 |
3D30-B-27-360-0-A |
||||||
|
Size |

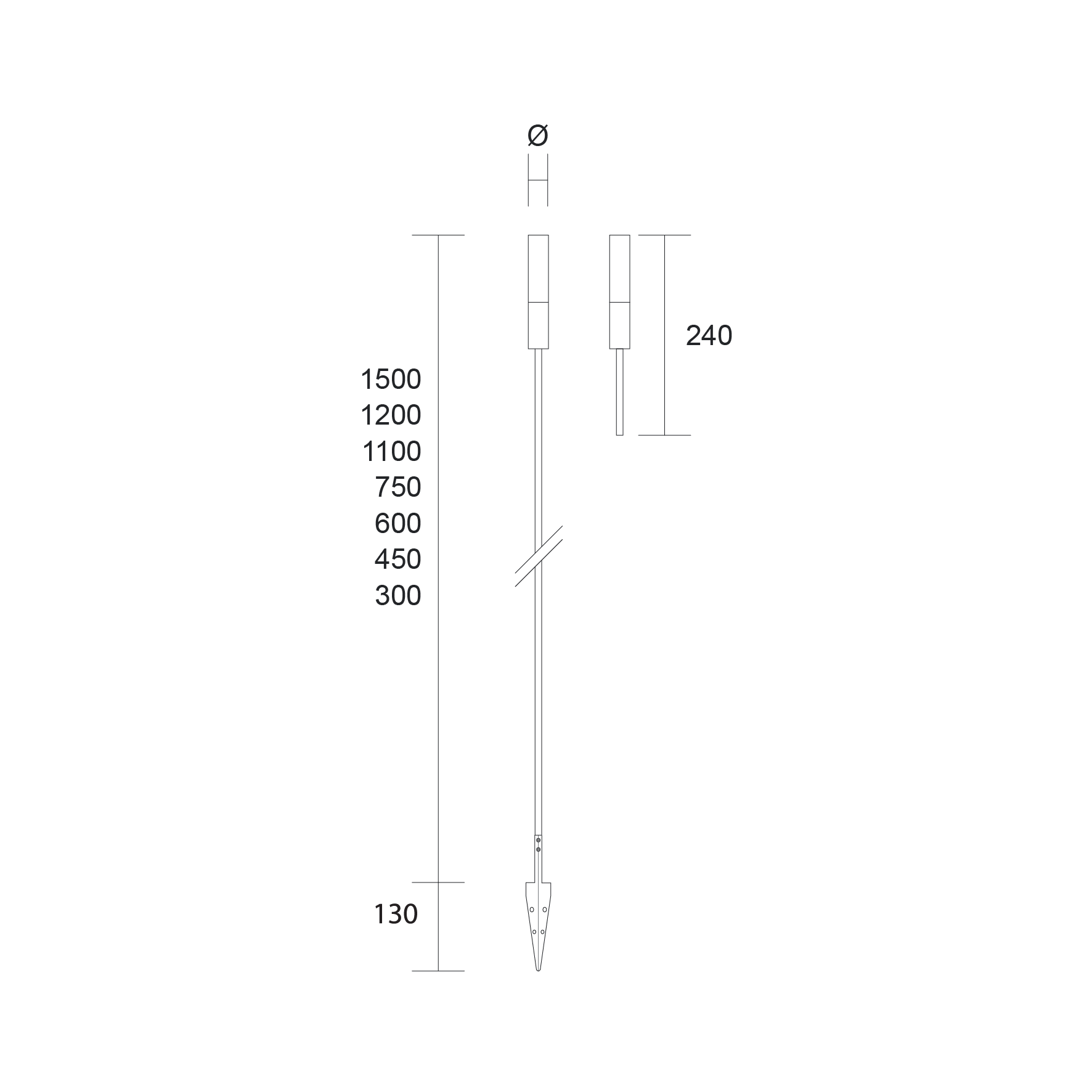

A Ø16 X 300~1500mm |
B |
|||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
||
|
Beam Angle |
360° |
|
|||||
|
Kelvin |
27 2700K |
40 4000K |
60 6000K |
AMB AMBER |
R RED |
G GREEN |
B BLUE |
|
Finishing |
Polycarbonate |
|
|||||
|
Wattage |
3 | ||||||
