E319
High Lumen Efficacy
Body - Thermos painted aluminum
Diffuser - New PMMA optic that provides uniform illumination over its
entire surface, with minimum thickness of the luminaire. UGR<19
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 54 IK 08 SMD McA Step 3 220~240V
2 5 E 3 1 9 - W - 3 0 - 1 8 0 - 0 - A
Model E319 |
2 5 E 3 1 9 - W - 3 0 - 1 8 0 - 0 - A |
||||
|
Size |

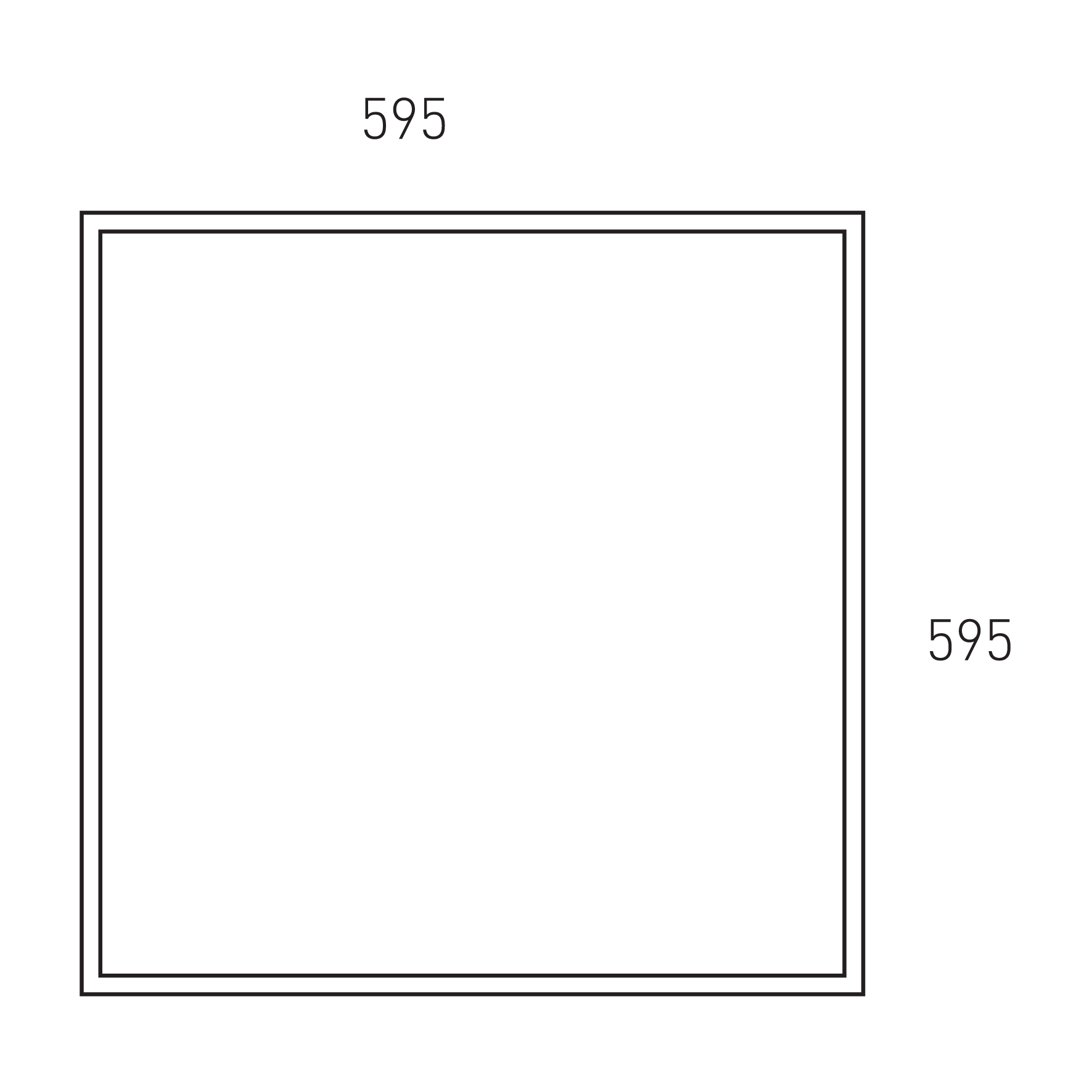

A 295 X 295 X 10+40mm |
B 595 X 295 X 10+40mm |
C 595 X 595 X 10+40mm |
D 595 X 595 X 10+40mm |
E 595 X 595 X 10+40mm |
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
180° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White |
|
|||
|
Wattage |
25 | 30 | 35 | 40 | 45 |
