E323
High Lumen Efficacy 110lm/W,
Body - Die cast aluminum
Diffuser - Polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20 IK 06 LED McA Step 3 220~240V
1 2 E 3 2 3 - B - 3 0 - 2 5 - 0 - A
Model E323 |
1 2 E 3 2 3 - B - 3 0 - 2 5 - 0 - A |
||||
|
Size |

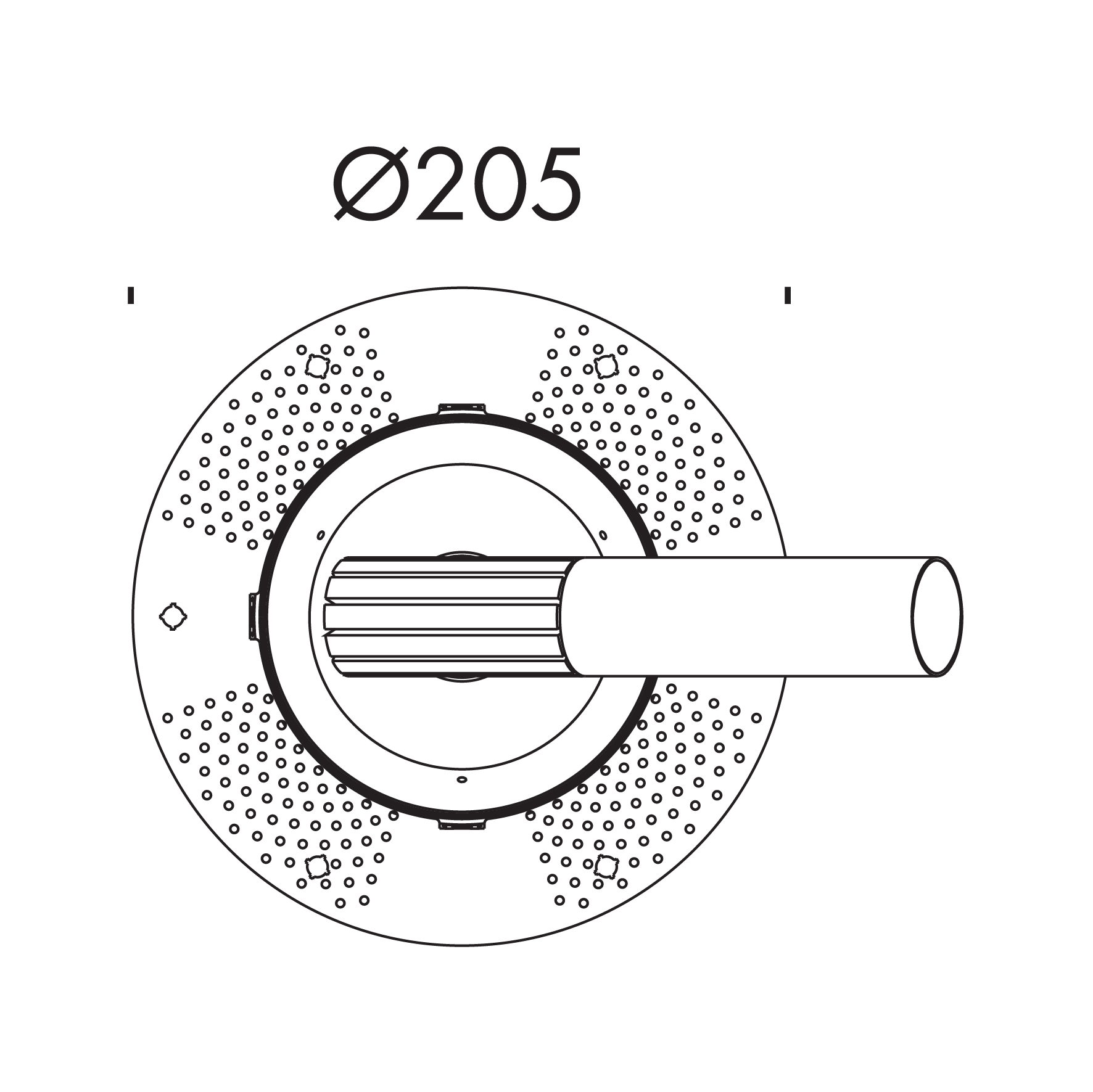

A Ø32 X 200mm Ø205 mm Top Plate |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
25° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
White | Black |
|
||
|
Wattage |
12 | 18 | |||
