E490
High Lumen Efficacy 100lm/W
Body - Die cast aluminum
Diffuser - Tempered Clear Glass with Aluminum Reflector
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20/44 LED 220~240V
4E490-W-27-98-0-A
Model E490 |
4E490-W-27-98-0-A |
|||||
|

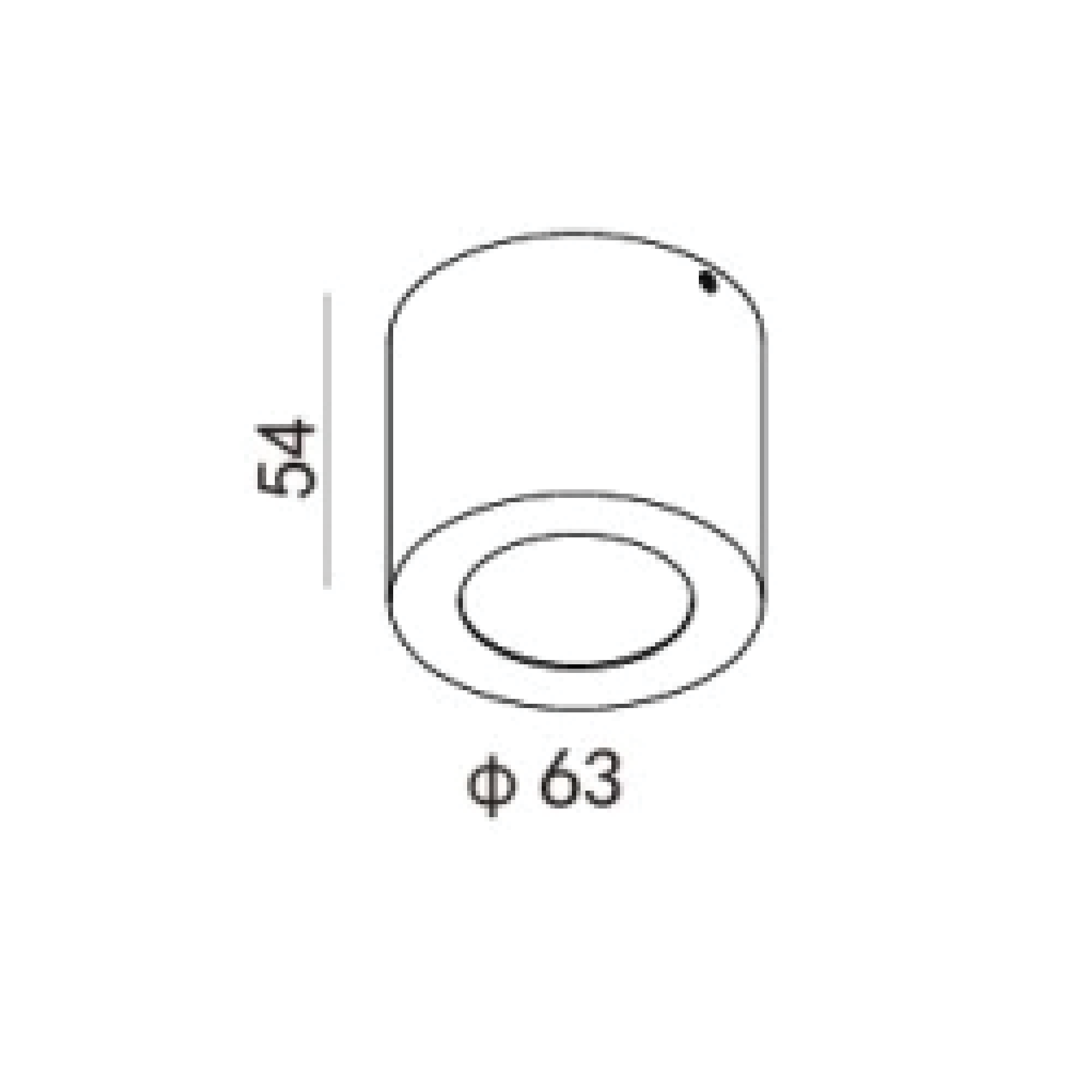

Size |
A Ø63 X 20mm |
B Ø63 X 22mm |
C Ø63 X 34mm |
D Ø63 X 36mm |
E Ø63 X 54mm |
F Ø63 X 56mm |
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
|
Beam Angle |
22° | 25° | 34° | 63° | 98° |
|
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
50 5000K |
||
|
Finishing |
White | Black |
|
|||
|
Wattage |
4 | 8 | ||||
