F21
High Lumen Efficacy
Body - Extruded Aluminum
Diffuser - PMMA Lens
Glowing Wire Test - 850°
Temperature - ta=-20 °C ~ ta max=65 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Facade Lights
IP 67 LED DC 24V
10F21-PC-RGB-120-0-A
Model F21 |
10F21-PC-RGB-120-0-A |
||||
|
Size |

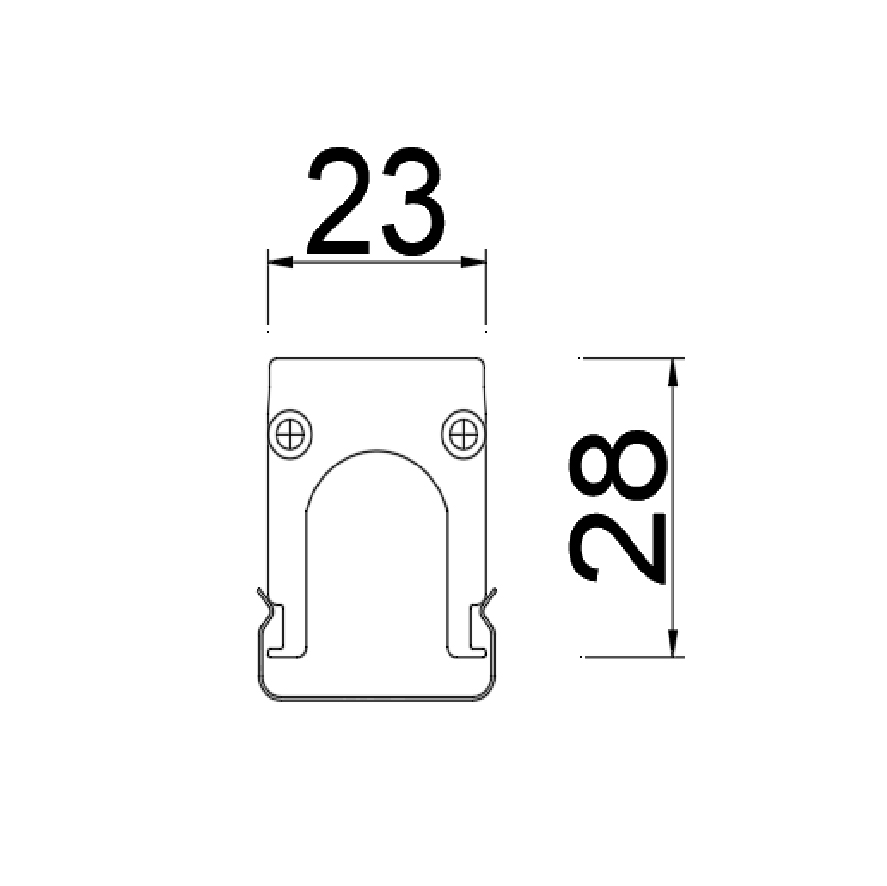

A W23 x H28 x L1000mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° |
|
|||
|
Kelvin |
Mono Color | RGB | RGBW | ||
|
Finishing |
Powder Coating |
|
|||
|
Wattage |
10 | 12 | 13 | 15 | (16 Pixels) |
