F25
High Lumen Efficacy
Body - Aluminum Alloy, White High Transmittance Acrylic
Diffuser - PMMA
Glowing Wire Test - 850°
Lifetime - 50000Hrs
Temperature - ta=-25 °C ~ ta max=55 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Facade Lights
IP 65 OSRAM DC 24V
12F25-G-RGB-180-0-A
Model F25 |
12F25-G-RGB-180-0-A |
||||
|

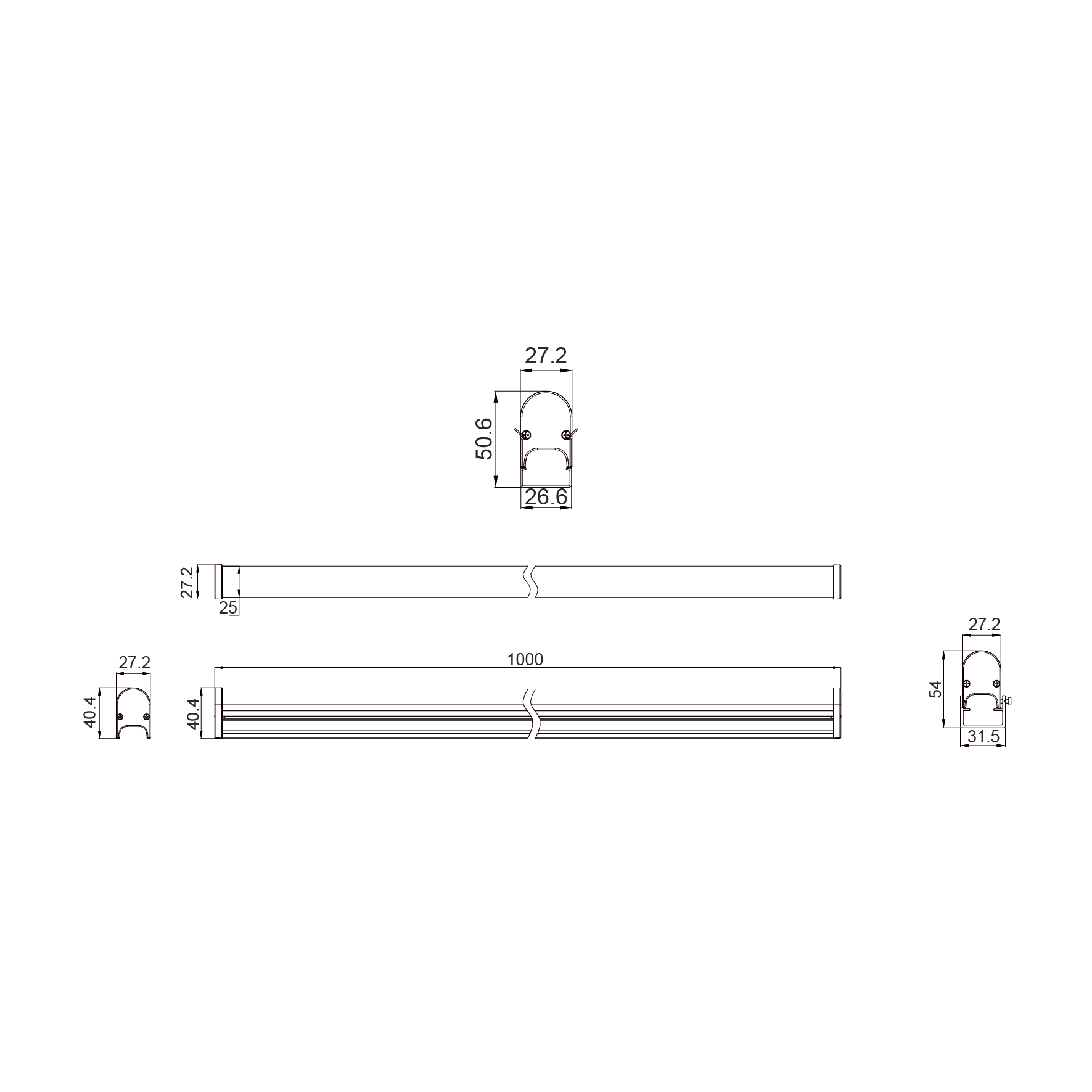

Size |
A W27.2 x H50.6 x L1000mm |
B W27.2 x H54 x L1000mm |
C W27.2 x H40.4 x L1000mm |
||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
180° |
|
|||
|
Kelvin |
30 3000K |
RGB | RGBW | Single | |
|
Finishing |
Grey |
|
|||
|
Wattage |
12 | 15 | |||
