G04
Body - Die Cast Aluminum
Diffuser - Transparent Glass
Glowing Wire Test - 850°
Temperature - ta=-20 °C ~ ta max=65 °C
Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 08 E27 McA Step 3 220~240V
E 2 7 G 0 4 - W - A
Model G04 |
E 2 7 G 0 4 - W - A |
||||
|
Size |

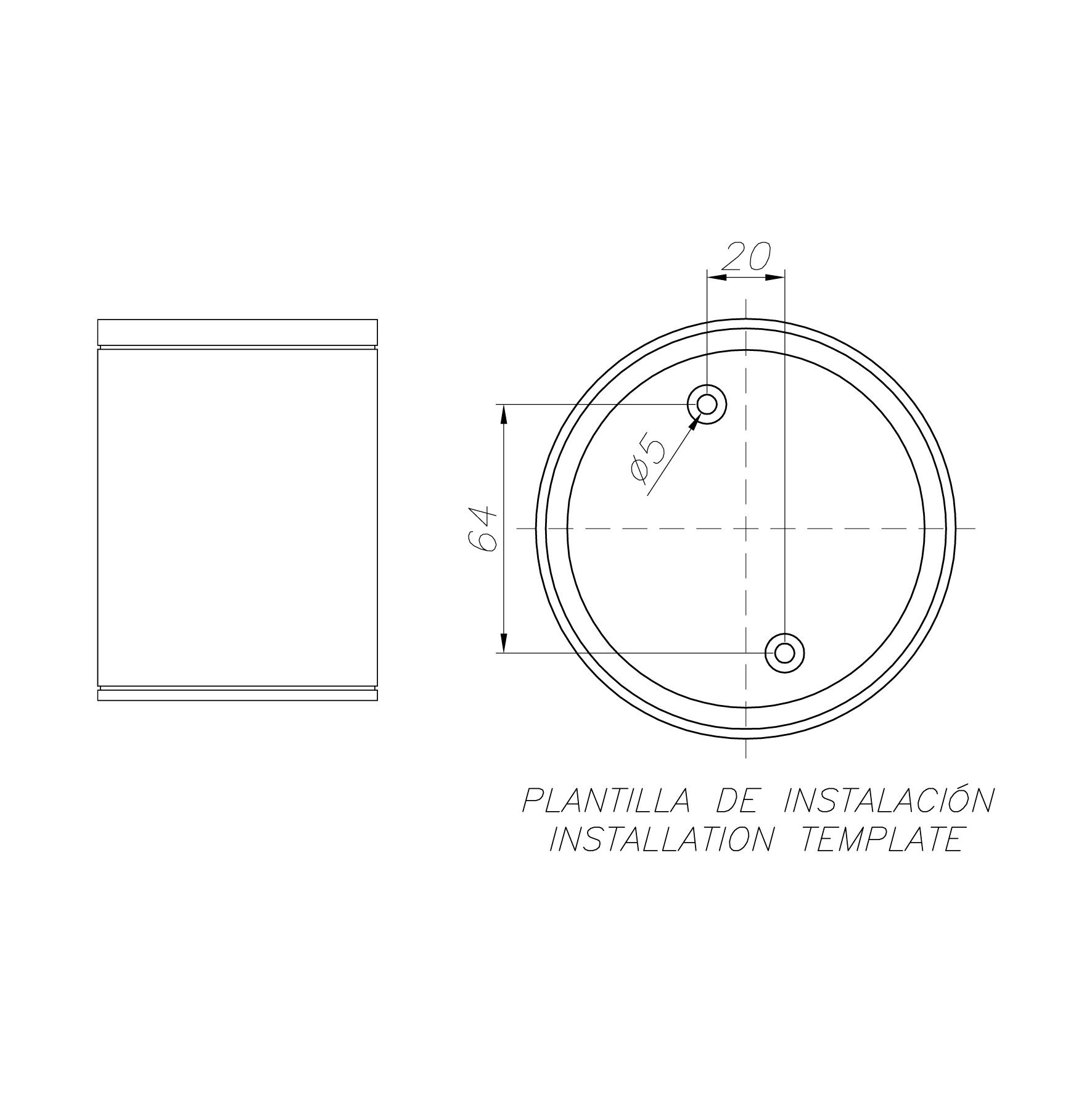

A Ø110 X 150mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
60° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
E27 | ||||
