G09
High Lumen Efficacy 190lm/W
Body - Die cast aluminum
Diffuser - Polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 40 IK 06 LED McA Step 3 220~240V
1 7 G 0 9 - W - 3 0 - 1 8 0 - 0 - A
Model G09 |
1 7 G 0 9 - W - 3 0 - 1 8 0 - 0 - A |
||||
|

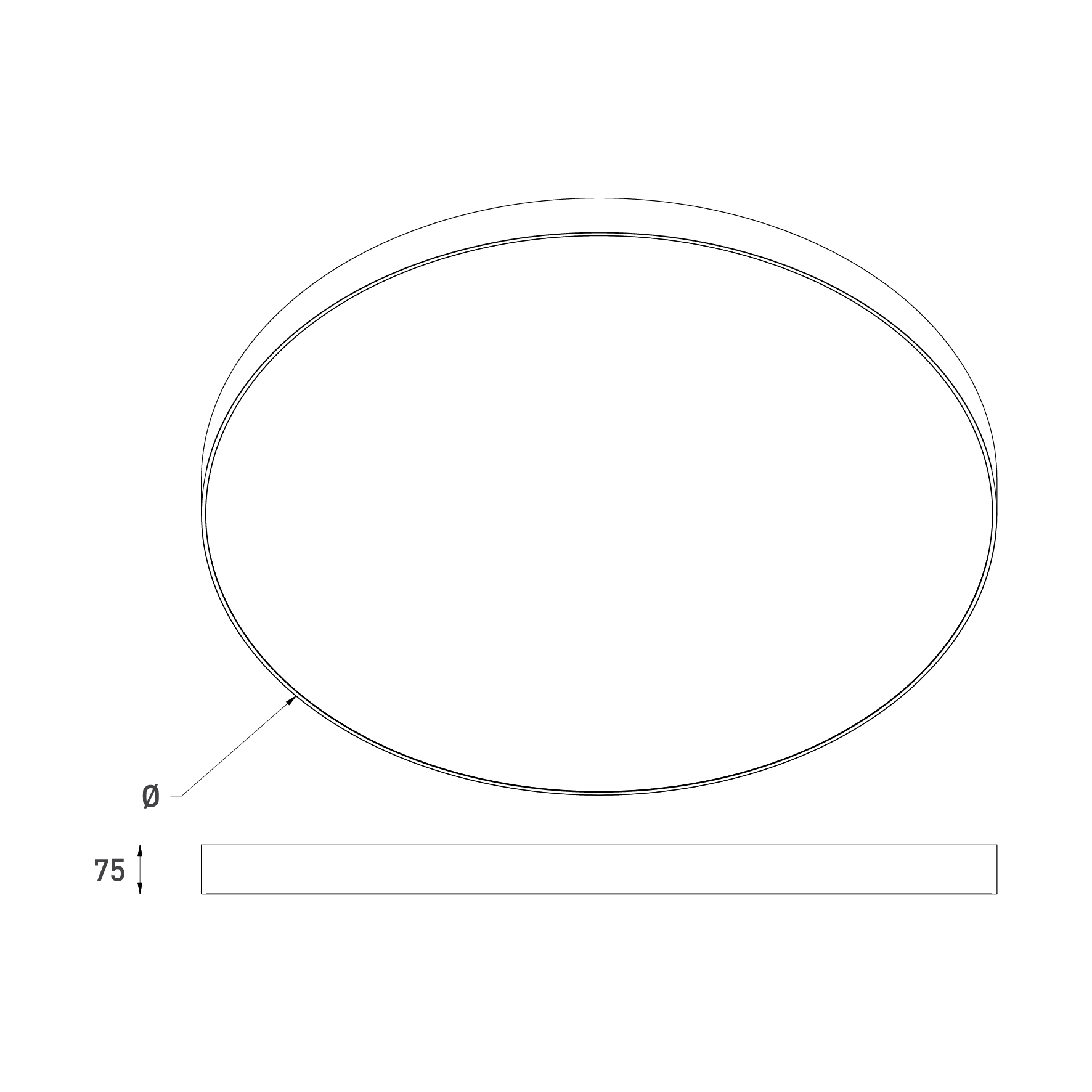

Size |
A Ø400 X 80mm |
B Ø600 X 80mm |
C Ø900 X 80mm |
D Ø1100 X 80mm |
|
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
16 | 28 | 56 | 100 | |
