G103
High Lumen Efficacy 90lm/W
Body - Injected molded thermo polycarbonate
Diffuser - Opal PMMA polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 SMD McA Step 3 220~240V
1 2 G 1 0 3 - W - 3 0 - 1 2 0 - 1 - A
Model G103 |
1 2 G 1 0 3 - W - 3 0 - 1 2 0 - 1 - A |
||||
|
Size |

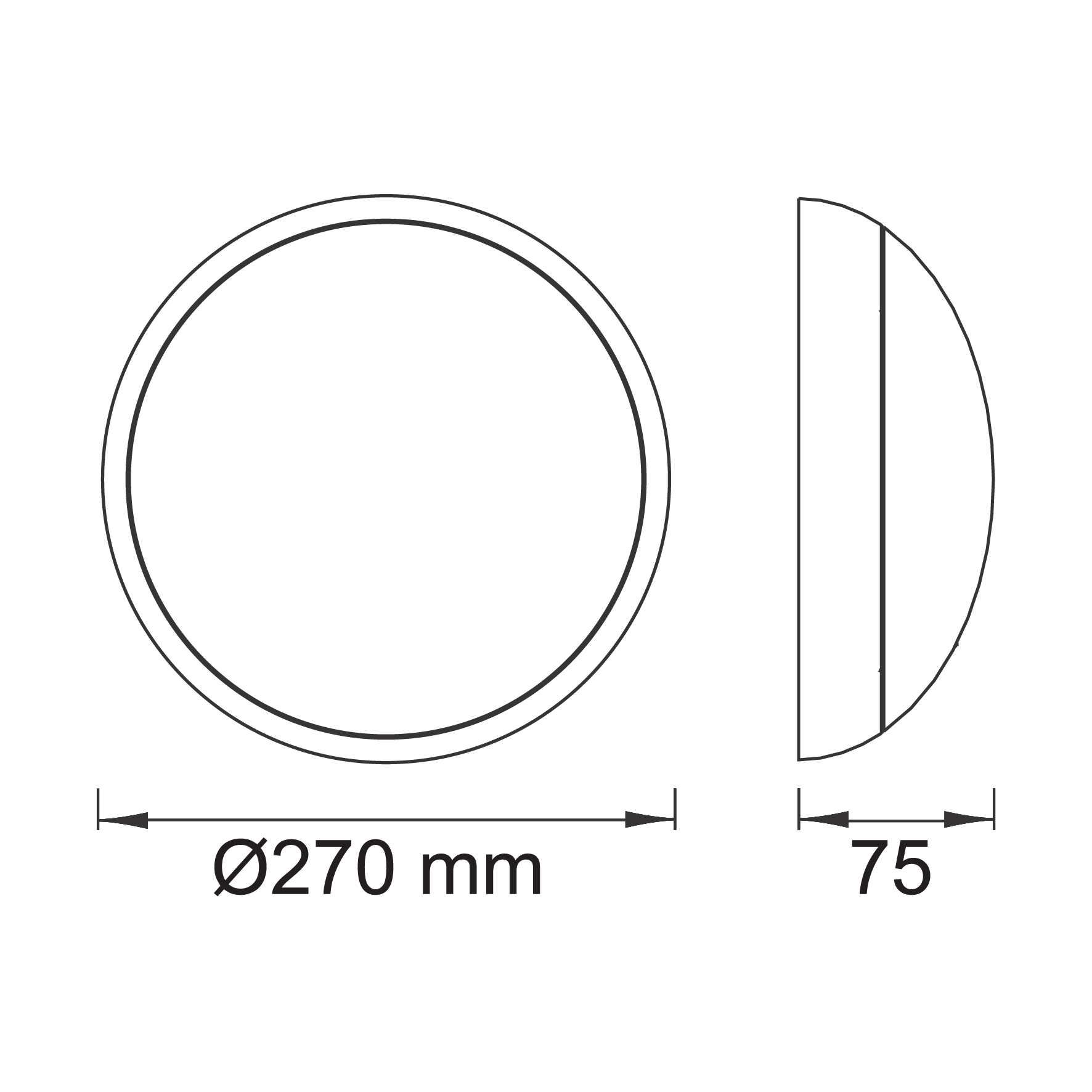

A Ø270 X 75mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
60° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
06 | 08 | 10 | 12 | |
