G16
High Lumen Efficacy 150lm/W
Body - Die cast aluminum
Diffuser - Tempered Clear Glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - IlI
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 66 IK 08 LED McA Step 3 220~240V
5 0 G 1 6 - W - 3 0 - 1 2 0 - 0 - A
Model G16 |
5 0 G 1 6 - W - 3 0 - 1 2 0 - 0 - A |
||||
|

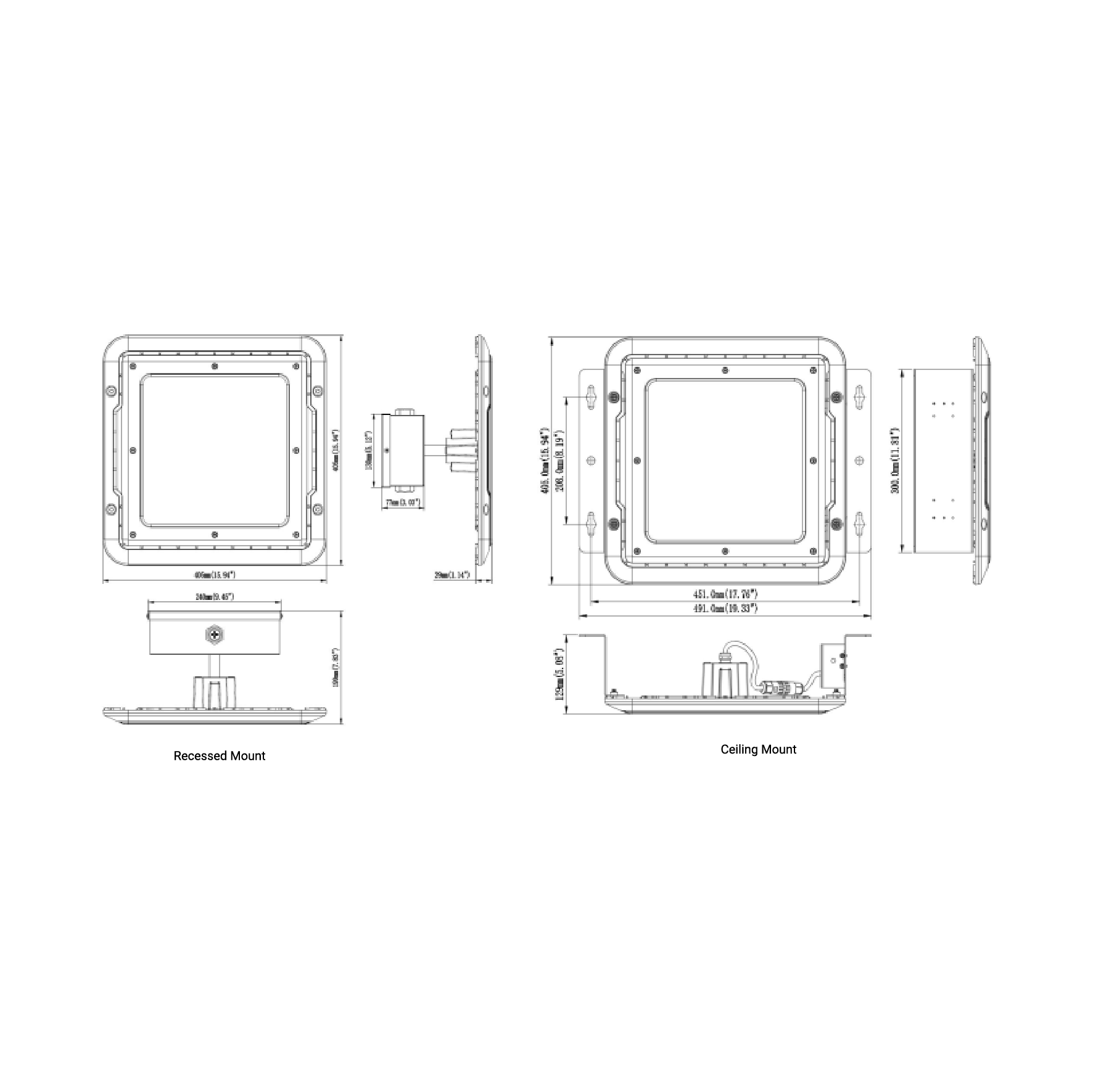

Size |
A 405 X 405 X 199mm (Recessed) |
B 491 X 405 X 129mm (Ceiling) |
|||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
50 | 100 | 120 | 150 | |
