G22
High Lumen Efficacy 100lm/W
Body - Iron
Diffuser - PC
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 44 IK 06 LED SMD 85~265V
40G22-W-30-120-0-A
Model G22 |
40G22-W-30-120-0-A |
||||
|
Size |

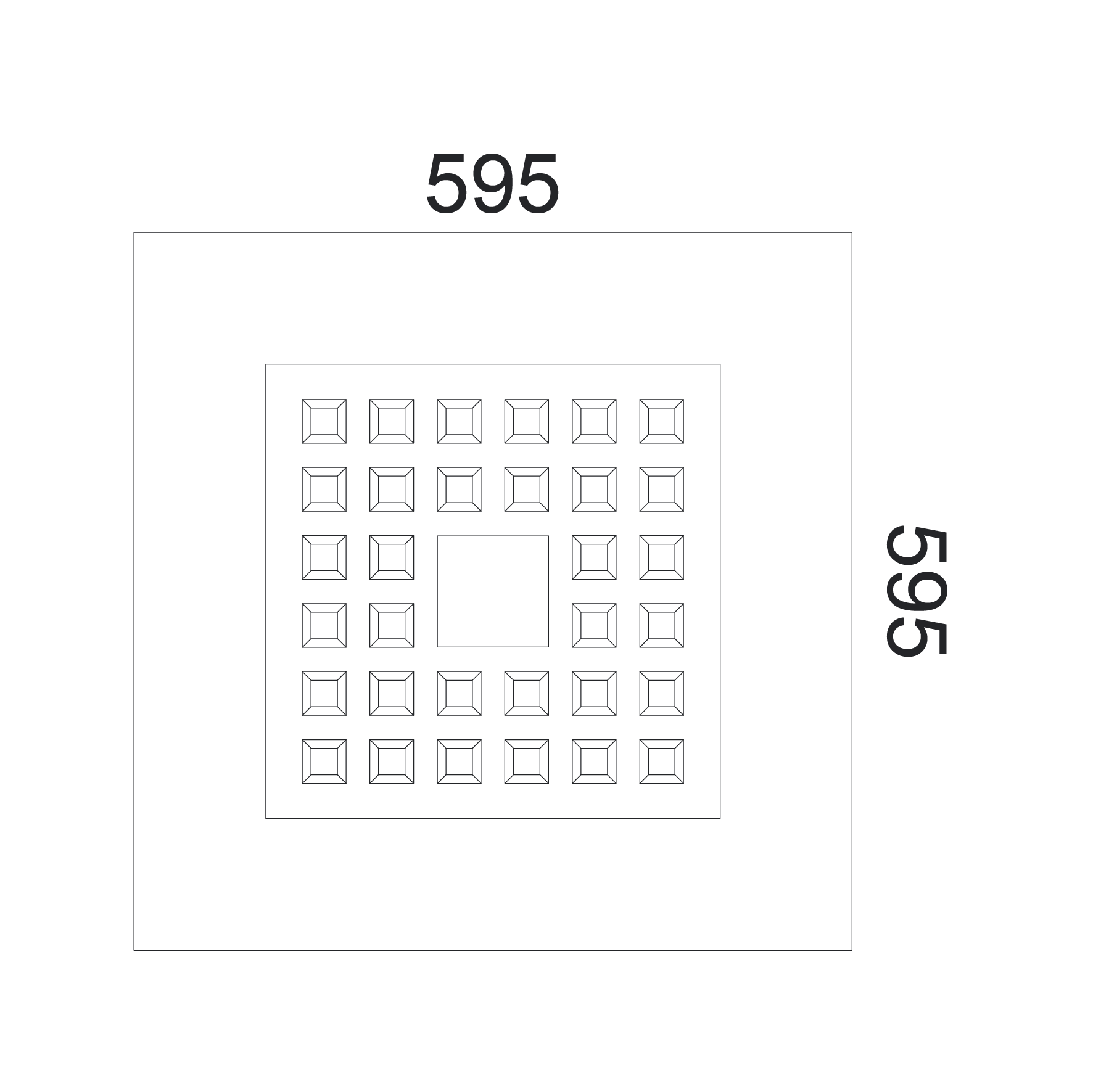

A 595 X 595mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
White |
|
|||
|
Wattage |
40 | ||||
