K34
High Lumen Efficacy 120lm/W Body - Die cast extruded aluminum Diffuser - Polycarbonate lens Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 40 IK 08 3030 SMD McA Step 3 120~277V
1 0 . 2 K 3 4 - B - 3 0 - 4 8 - 0 - A
Model K34 |
1 0 . 2 K 3 4 - B - 3 0 - 4 8 - 0 - A |
||||
|
Size |

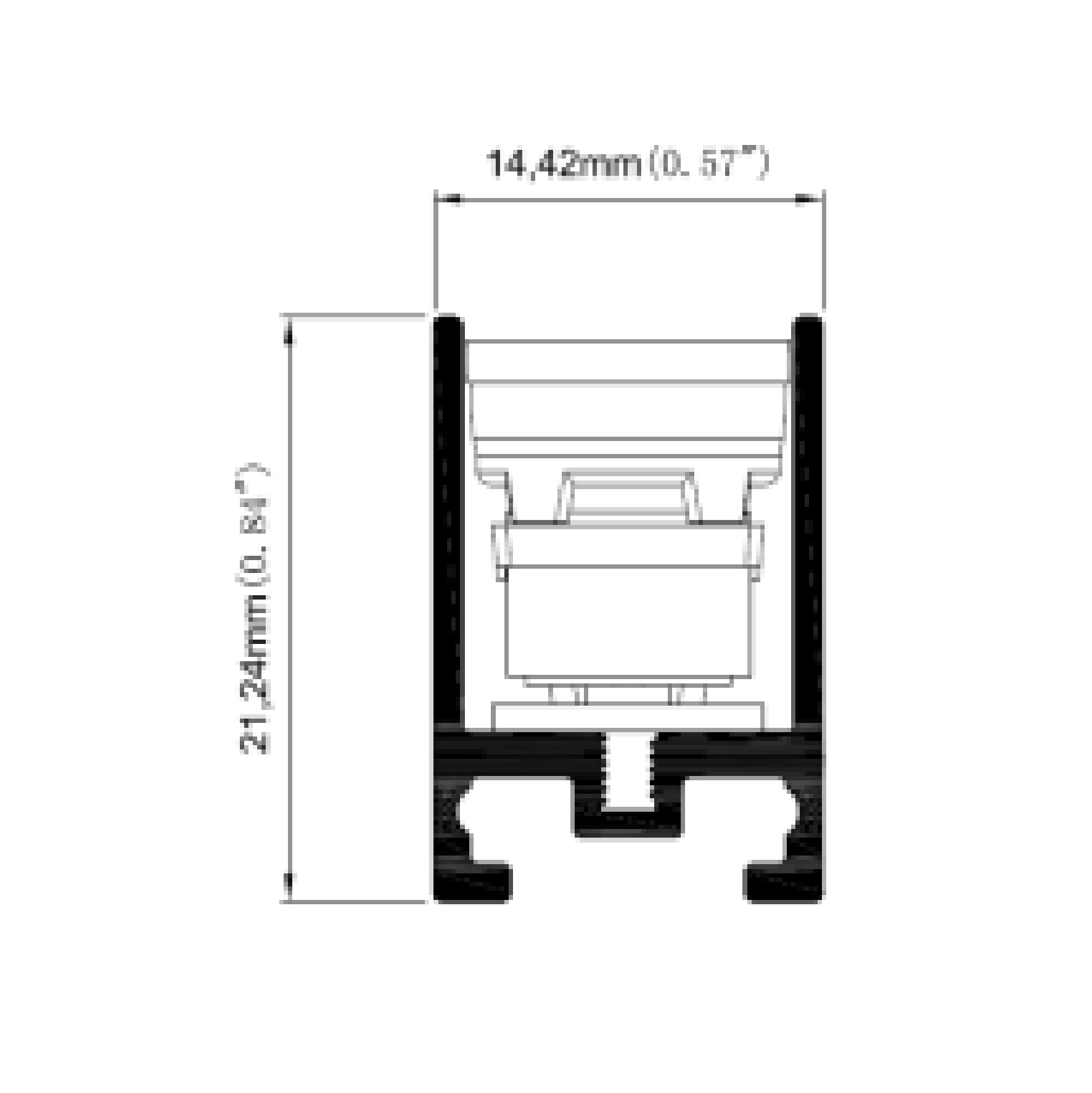

A 600 X 14 X 21mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
30° | 48° | |||
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
50 5000K |
|
|
Finishing |
Black | ||||
|
Wattage |
10.2 | ||||
