K40
High Lumen Efficacy 120lm/W Body - Full PU encapsulation, Waterproof Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
IP 67 IK 08 SMD 3014 / SMD 4040 McA Step 3 120~277V
6 K 4 0 - W - 3 0 - 1 2 0 - 0 - A
Model K40 |
6 K 4 0 - W - 3 0 - 1 2 0 - 0 - A |
||||
|
Size |

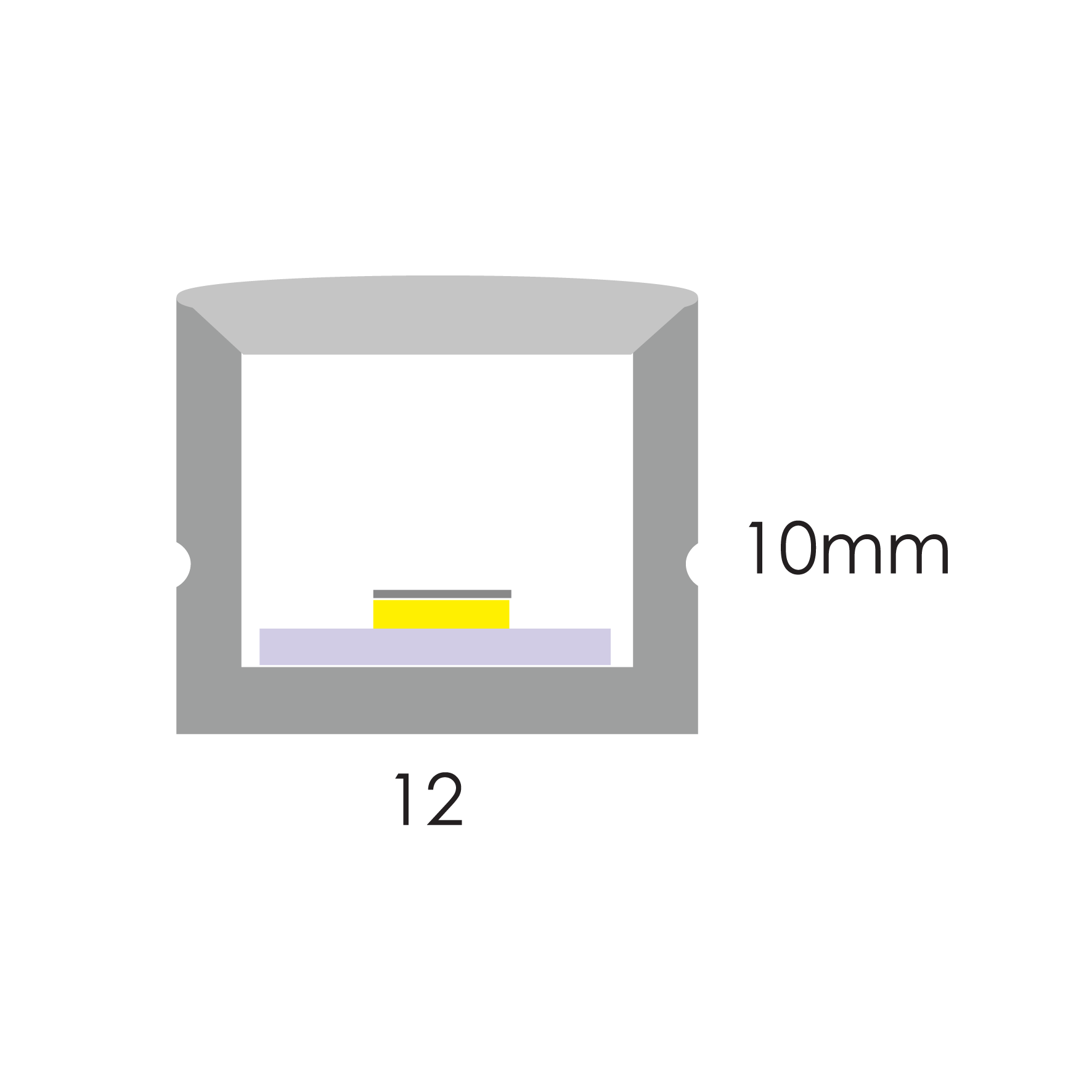

A 1000 X 12 X 10mm (Max 5m) |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
White | ||||
|
Wattage |
06 | 10 | |||
