K54
High Lumen Efficacy 120lm/W Body - Stainless Steel Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - I
The main body shell material is made of stretched aluminum, the surface
is anodized, anti-aging, anti-ultraviolet, lighttransmittance is 80%, anti-UV
radiation.RGBW,RGB,Monochrome and other light source combination to
meet more requirements.Imported material deffuser,uniform and soft light
effect,to ensure surface brightness.Minmized glare pollution,increese
visual confort. color resolution 16Bit,the picture more delicate and
smooth.Build-in electronic driver with over-temperature overload
protection
IP 65 IK 09 LED SMD McA Step 3 DC24V
1 2 K 5 4 A L U - R G B - 1 2 0 - A
Model K54 |
1 2 K 5 4 A L U - R G B - 1 2 0 - A |
||||
|

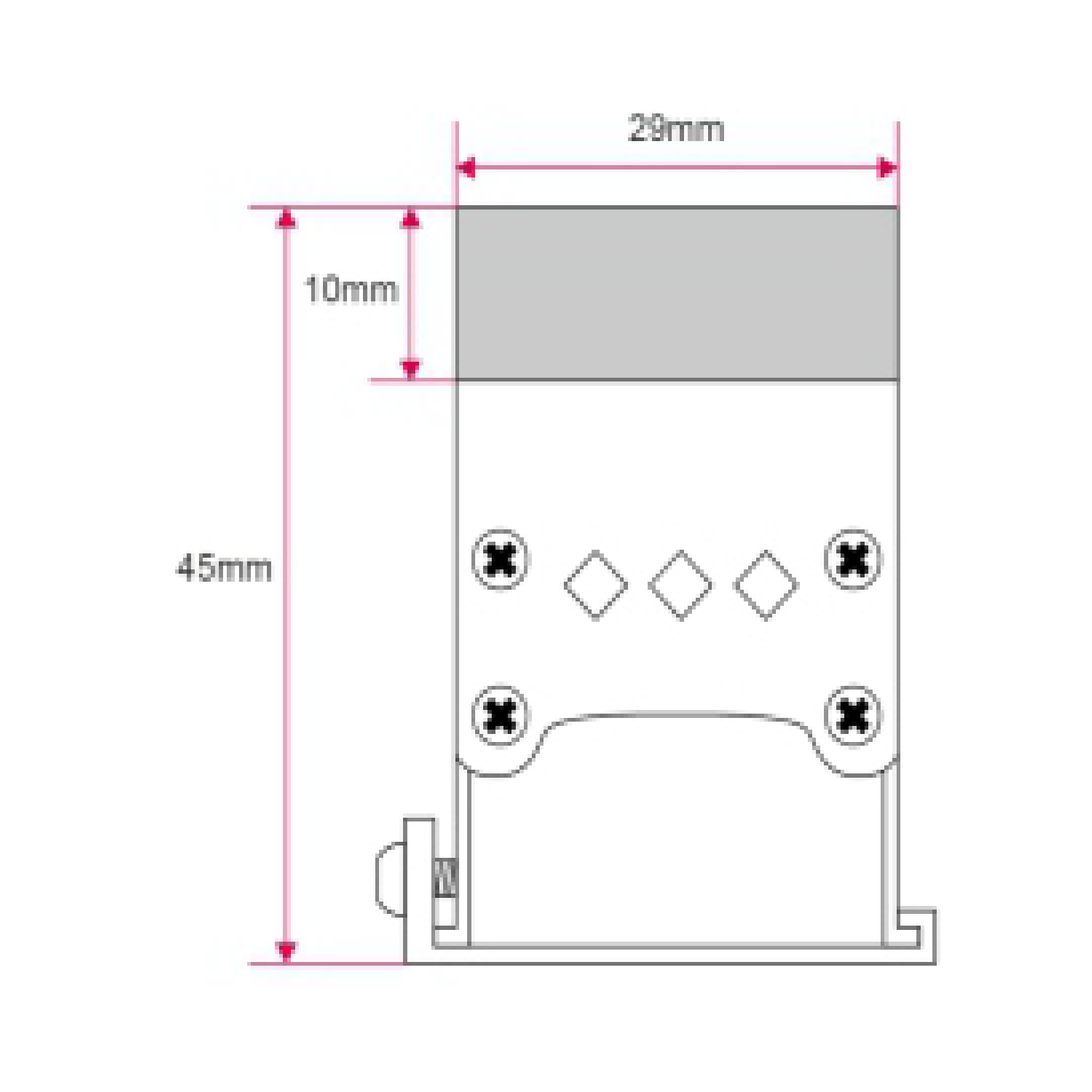

Size |
A 1000 x 29 x 45 mm |
B 500 x 29 x 45 mm |
C 250 x 29 x 45 mm |
||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
RGB | RGBW | ||
|
Finishing |
Aluminum | ||||
|
Wattage |
03 | 06 | 12 | ||
