K56
High Lumen Efficacy Body - Extruded aluminum Diffuser - Polycarbonate PMMA or Acrylic Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - I
The main body shell material is made of stretched aluminum, the surface
is anodized, anti-aging, anti-ultraviolet, lighttransmittance is 80%, anti-UV
radiation.RGBW,RGB,Monochrome and other light source combination to
meet more requirements.Imported material deffuser,uniform and soft light
effect,to ensure surface brightness.Minmized glare pollution,increese
visual confort. color resolution 16Bit,the picture more delicate and
smooth.Build-in electronic driver with over-temperature overload
protection
IP 40 IK 05 LED SMD McA Step 3 DC24V
8 K 5 6 - A L U - 3 0 - 1 8 0 - 0 - A
Model K56 |
8 K 5 6 - A L U - 3 0 - 1 8 0 - 0 - A |
||||
|

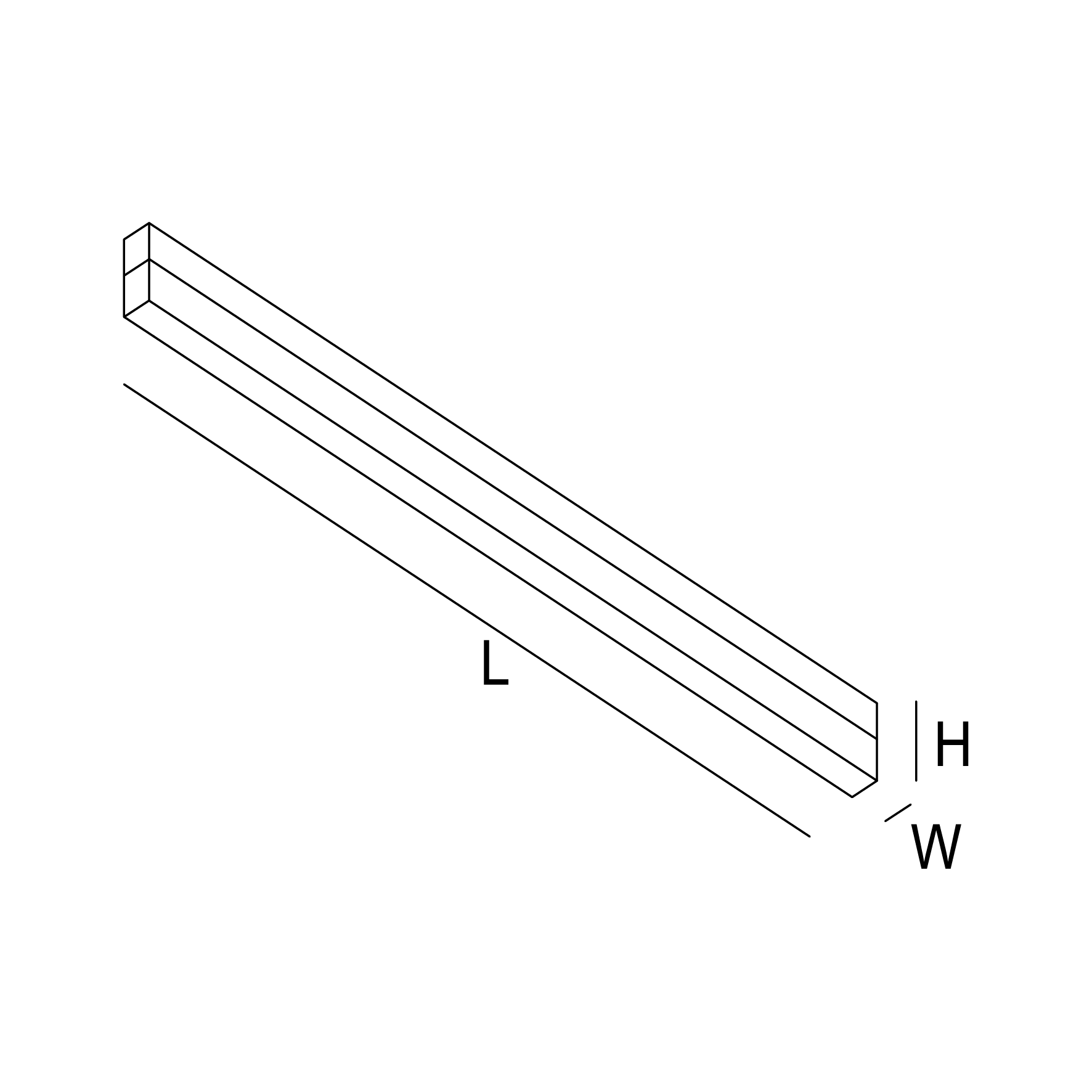

Size |
A 565 x 36 x 76 mm |
B 845 x 36 x 76 mm |
C 1125 x 36 x 76 mm |
D 1405 x 36 x 76 mm |
|
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
100° | 120° | 180° | ||
|
Kelvin |
30 3000K |
60 6000K |
RGB | RGBW | |
|
Finishing |
Aluminum | ||||
|
Wattage |
08 | 11 | 14 | 24 | |
