K81
High Lumen Efficacy Body - Die cast aluminum Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20 IK 06 COB McA Step 3 DC 48V
5 K 8 1 - B - 3 0 - 1 5 - 0 - A
Model K81 |
5 K 8 1 - B - 3 0 - 1 5 - 0 - A |
||||
|

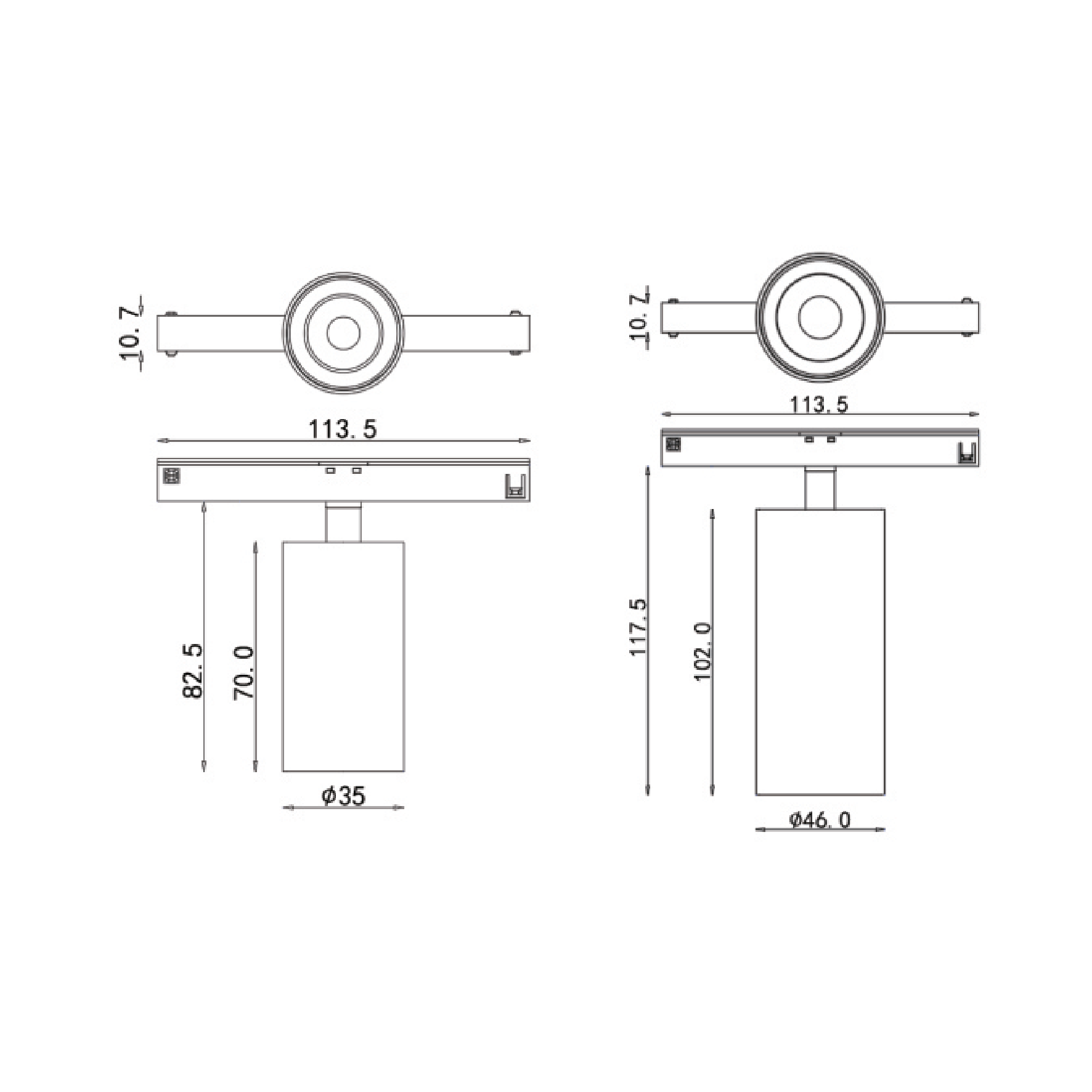

Size |
A Dia 35 X 70mm |
B Dia 46 X 102mm |
|||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
15° | 24° | 36° | ||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
||
|
Finishing |
White | Black | |||
|
Wattage |
05 | 10 | |||
