K85
High Lumen Efficacy 100lm/W Body - Die cast aluminum Diffuser - Polycarbonate lens Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - III
FIELDS OF APPLICATION
1. Retail Lighting Solutions
2. Museum and Art Gallery Illumination
3. Accent Lighting for Residential Spaces
4. Restaurant and Hospitality Lighting
5. Office and Workspace Illumination
6. Exhibition and Trade Show Displays
7. Display Cases and Shelving Lighting
8. Track Lighting for Boutiques
9. Track Lighting for Galleries
10. Showroom Lighting Design
11. Track Lighting for Jewelry Stores
12. Track Lighting in Commercial Spaces
13. Customizable Recessed Track Lights
14. Track Lighting for Interior Design
15. LED Track Lighting for Retail Displays
IP 20 IK 06 COB McA Step 3 220~240V
1 0 K 8 5 - B - 3 0 - 1 5 - 0 - A
Model K85 |
1 0 K 8 5 - B - 3 0 - 1 5 - 0 - A |
||||
|
Size |

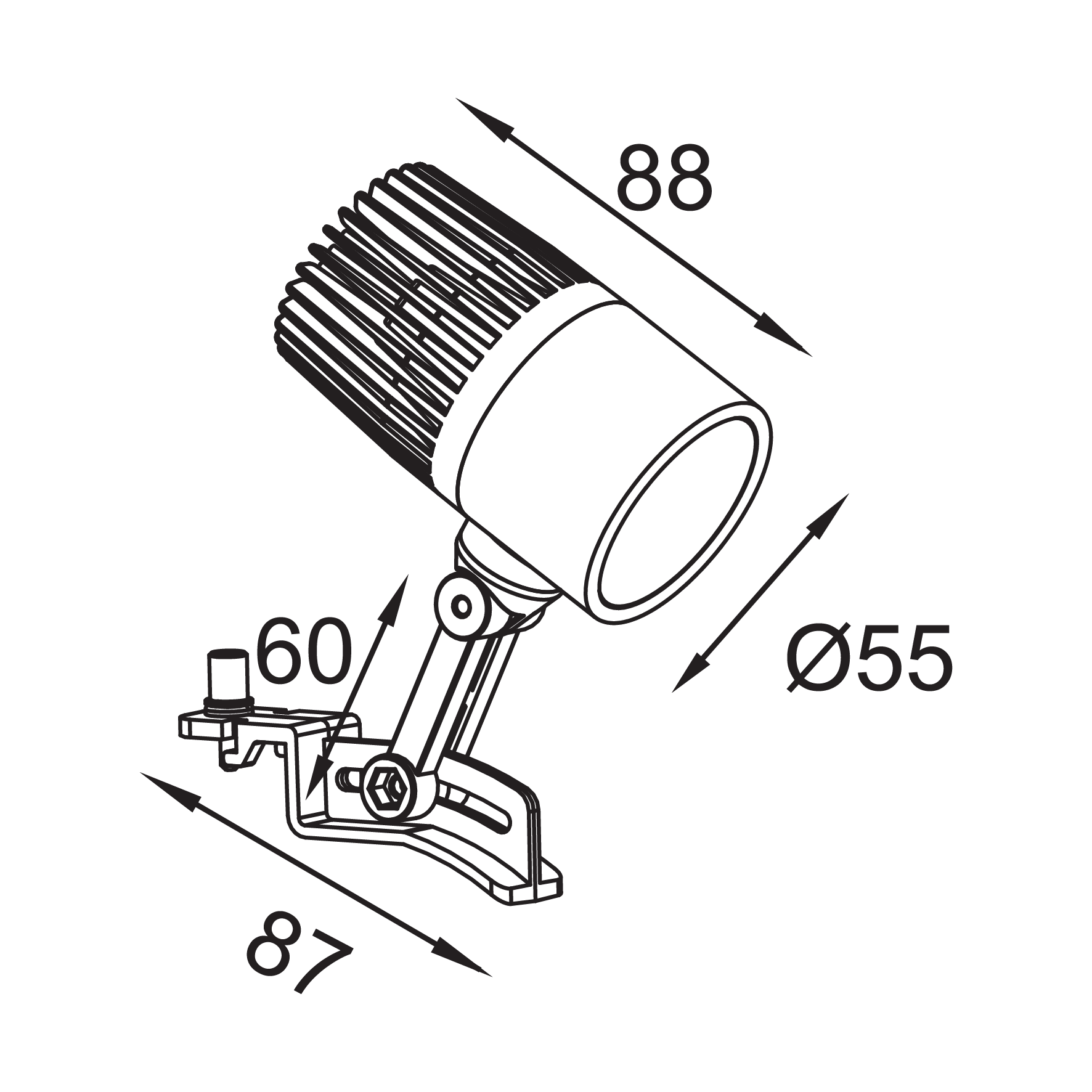

A Ø55 X 88mm |
B Ø65 X 110mm |
C Ø80 X 125mm |
D Ø93 X 123mm |
|
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
15° | 24° | 38° | ||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
||
|
Finishing |
Sand White | Sand Black | |||
|
Wattage |
10 | 15 | 30 | 40 | |
