K93
High Lumen Efficacy 86lm/W Body - Die Cast Aluminum Reflector - PMMA Optical lens Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - III
The Construct line offers flexible lighting solutions across all specifications to meet various demands. With surface, pendant, and recessed mounting options, this lighting system allows for specific customization, from residential applications like kitchens, foyers, and offices to commercial applications like art galleries, retail stores, and reception areas. An effortless approach, this perfect solution maximizes lighting creativity.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20 IK 06 COB McA Step 4 220~240V
7 K 9 3 - B - 2 7 - 1 4 - 0 - A
Model K93 |
7 K 9 3 - B - 2 7 - 1 4 - 0 - A |
||||
|
Size |

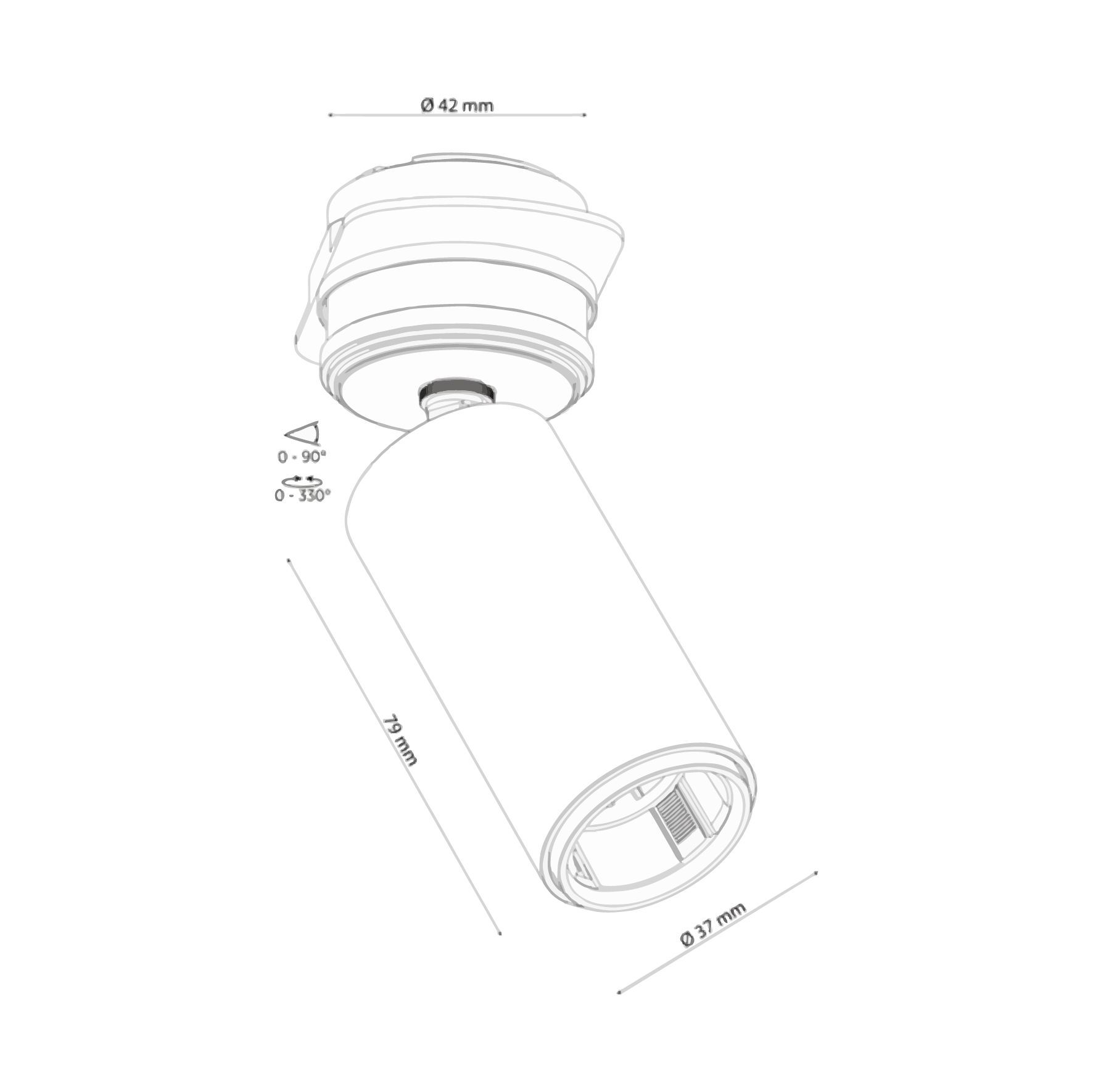

A Ø35 X 100mm Cutout Ø45 |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
14° | ||||
|
Kelvin |
27 2700K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
White | Black | |||
|
Wattage |
07 | ||||
