K94
High Lumen Efficacy Body - PVC Body Glowing Wire Test - 650° Temperature - ta=20 °C ~ ta max=50 °C Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 08 SMD McA Step 3 DC 24V
4 . 8 K 9 4 - W - 3 0 - 1 2 0 - 0 - A
Model K94 |
4 . 8 K 9 4 - W - 3 0 - 1 2 0 - 0 - A |
||||
|
Size |

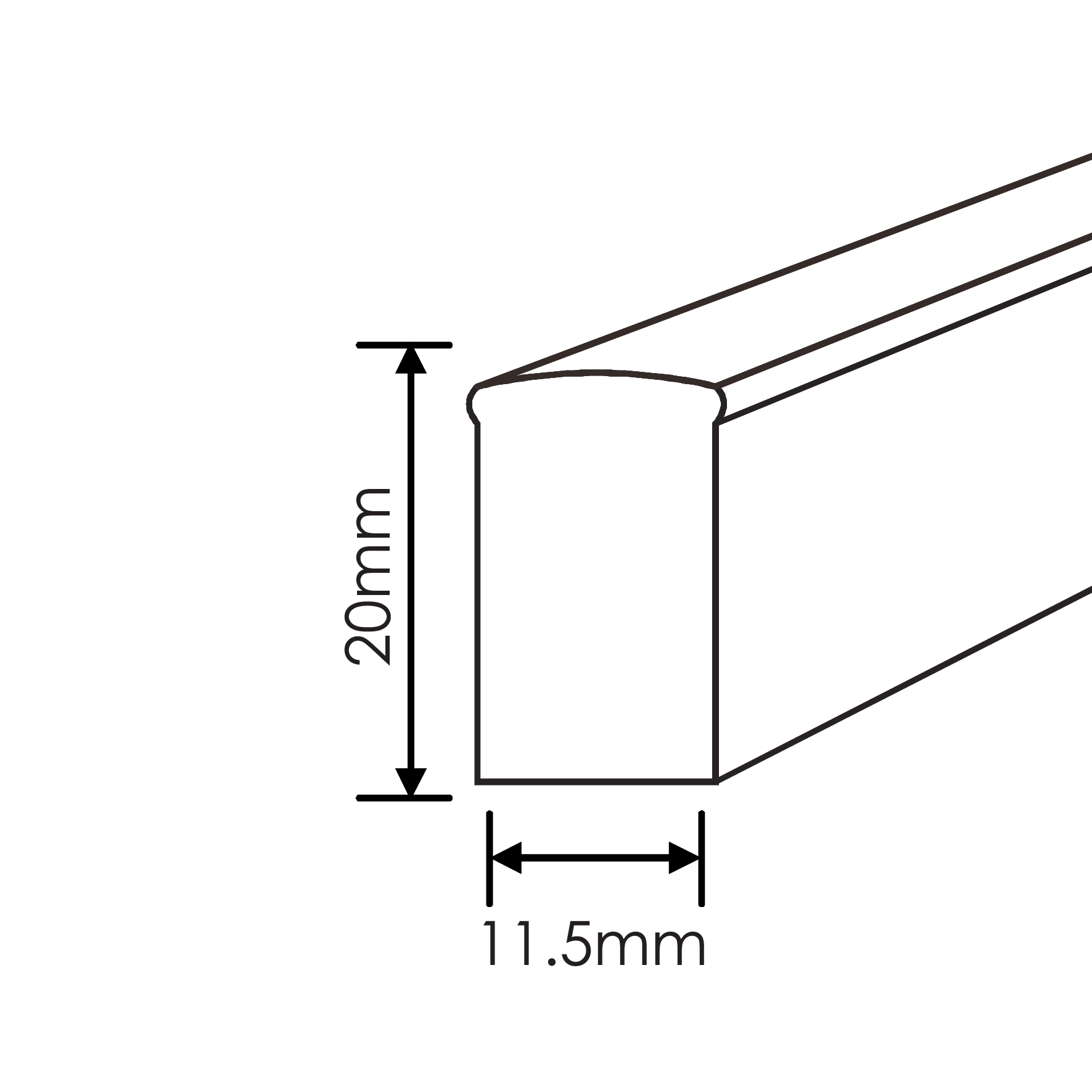

A 11.5 X 20 X 10000mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
Finishing |
White | ||||
|
Wattage |
4.8 | 9.6 | 12 | 14.4 | |
