L75
High Lumen Efficacy
Body - Die cast aluminum alloy
Diffuser - Opal or Clear Polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Areas
IP 67 IK 10 COB McA Step 3 220~240V
3 L 7 5 - B - 3 0 - 3 0 - 0 - A
Model L75 |
3 L 7 5 - B - 3 0 - 3 0 - 0 - A |
||||
|
Size |

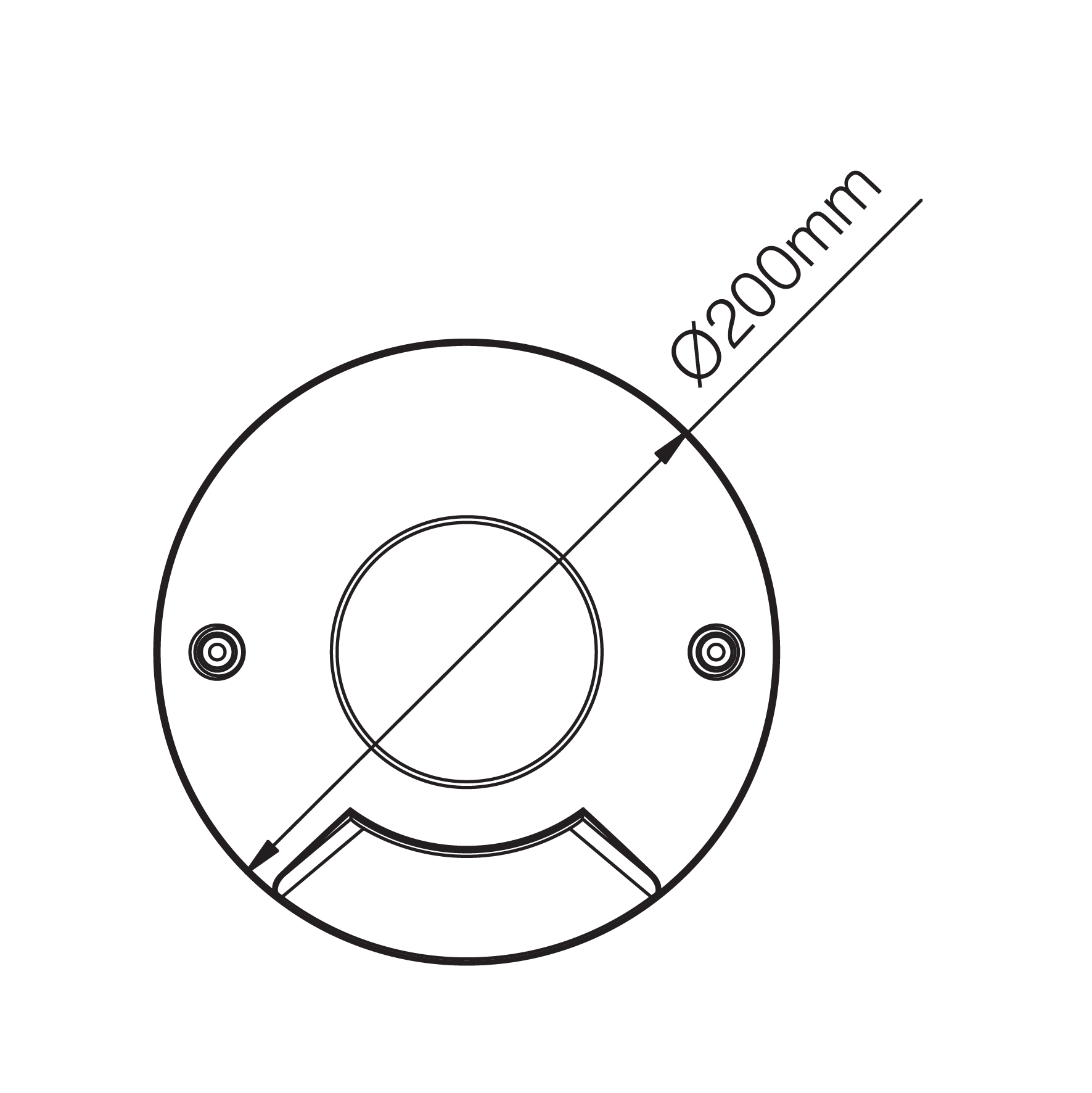

A Ø200 X 42H mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
30° | ||||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
Stainless Steel |
|
|||
|
Wattage |
03(1x3) | 06(2X3) | 12(4x3) | ||
