L83
High Lumen Efficacy 90lm/W
Body - High-quality stainless steel
Diffuser - Clear tempered glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Swimming Pool Areas
IP 68 IK 08 COB McA Step 3 220~240V
1 8 L 8 3 - S S - 3 0 - 3 0 - 0 - A
Model L83 |
1 8 L 8 3 - S S - 3 0 - 3 0 - 0 - A |
||||||
|
Size |

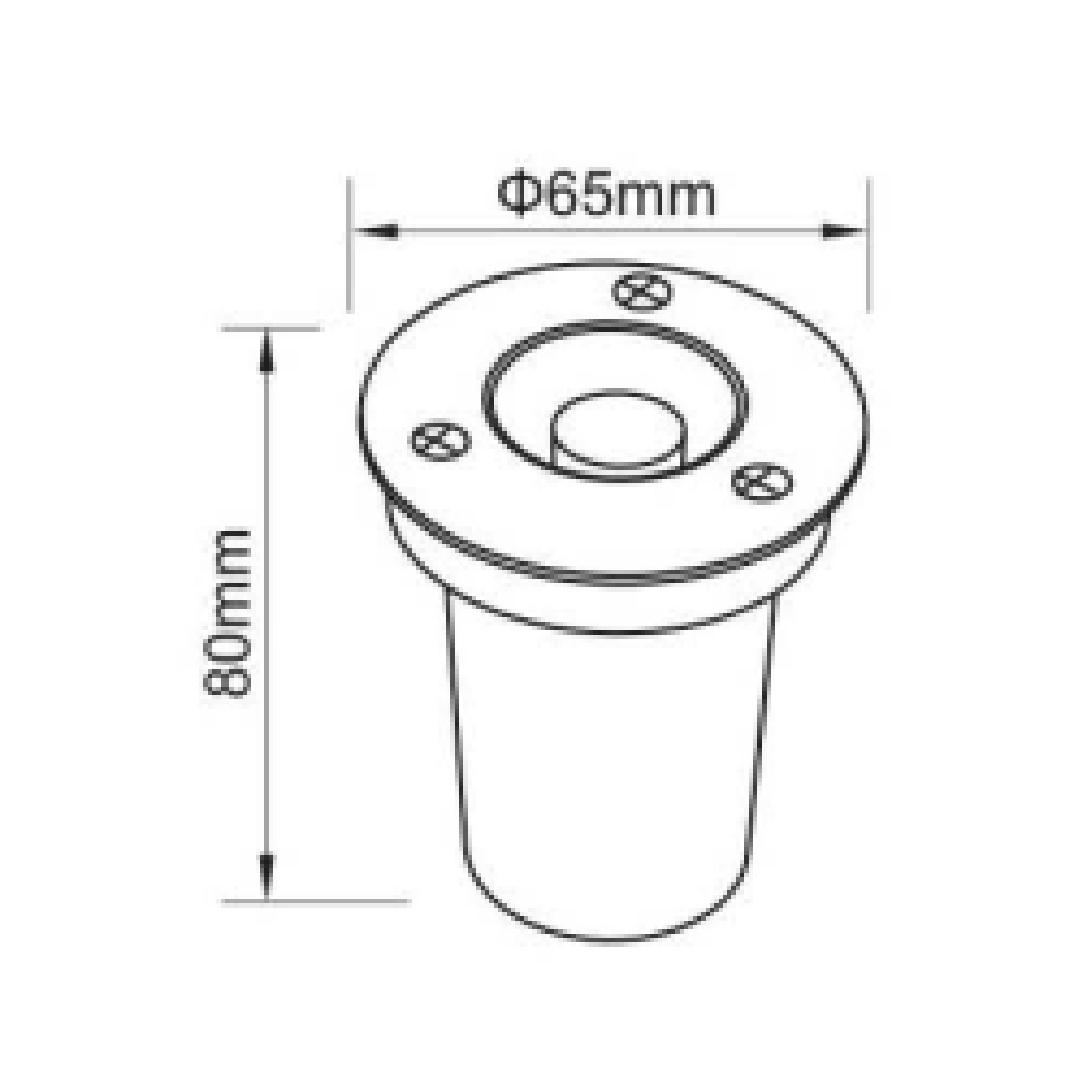

A Ø65 X 80H mm |
B Ø80 X 90H mm |
C Ø100 X 90H mm |
D Ø120 X 90H mm |
E Ø150 X 90H mm |
||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
||
|
Beam Angle |
30° | ||||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
GR Green |
BL Blue |
RD RED |
RGB RGB |
|
Finishing |
Stainless Steel | ||||||
|
Wattage |
03 | 06 | 09 | 12 | 18 | ||
