L86
High Lumen Efficacy 120lm/W
Body - Die Cast Aluminum
Diffuser - Clear pc optical lens
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Wall Washer
IP 65 IK 10 COB McA Step 3 220~240V
1 2 0 L 8 6 - G R - 3 0 - 3 - 0 - A
Model L86 |
1 2 0 L 8 6 - G R - 3 0 - 3 - 0 - A |
||||
|
Size |

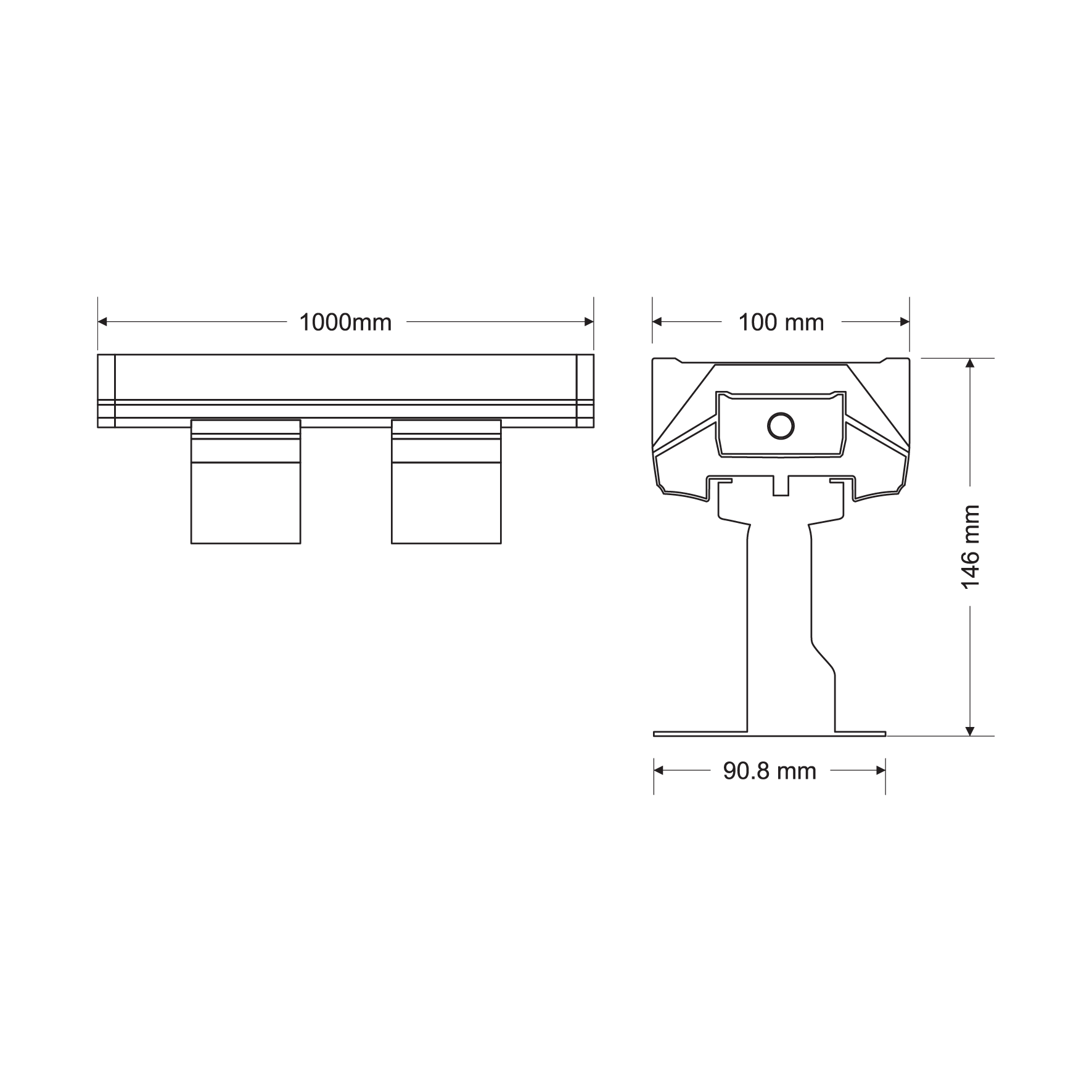

A 1000 X 100 X 55H mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
3° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
GR Green |
BL Blue |
|
Finishing |
Stainless Steel |
|
|||
|
Wattage |
120 | ||||
