L90
High Lumen Efficacy 110lm/W
Body - Stainless steel 316
Diffuser - Temepered Glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Areas
IP 68 IK 10 COB McA Step 3 DC 24V
6 X 2 L 9 0 - S S - 3 0 - 3 0 - 0 - A
Model L90 |
6 X 2 L 9 0 - S S - 3 0 - 3 0 - 0 - A |
||||
|
Size |

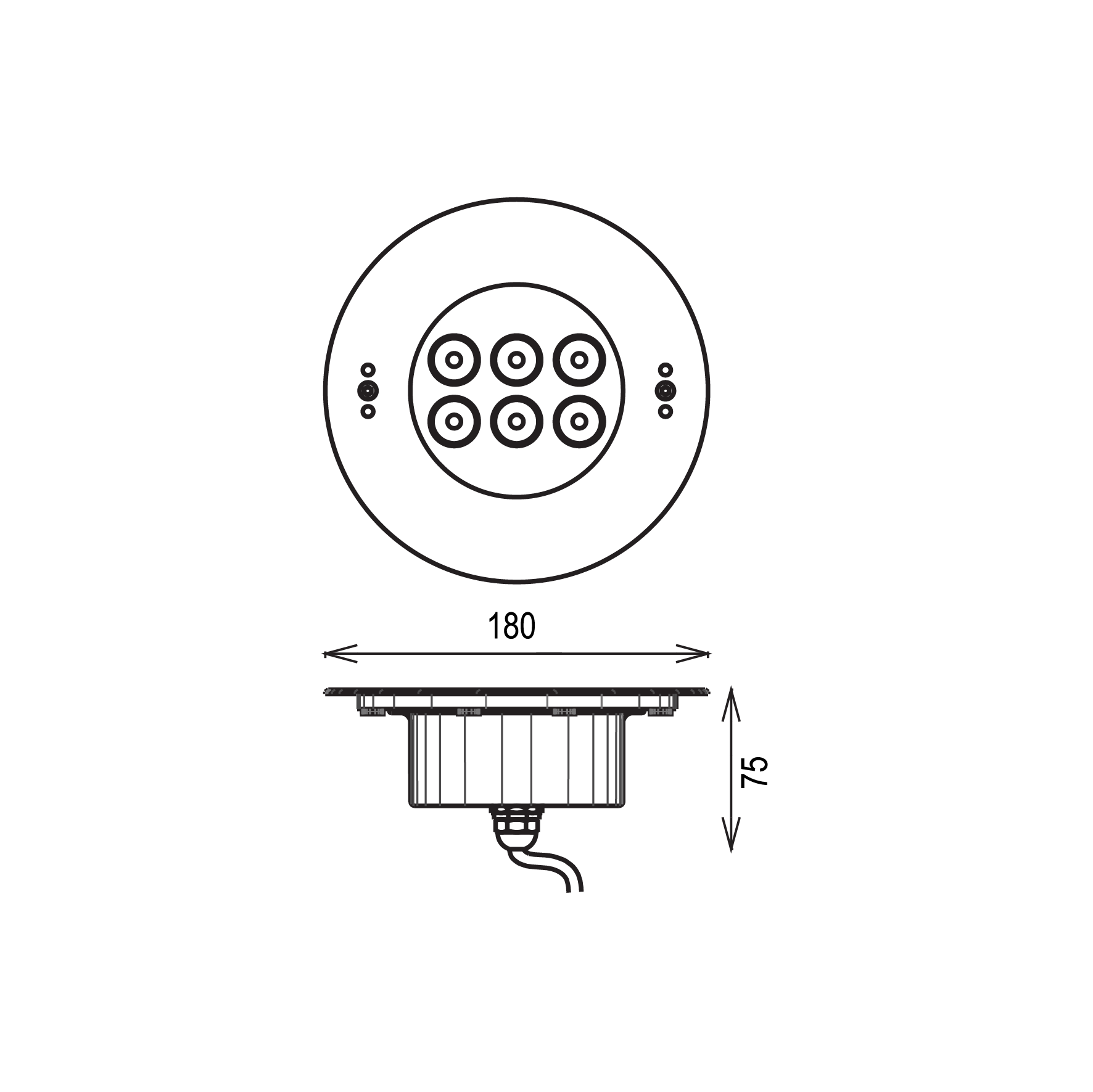

A Ø180 X 122mm Cutout - 157x122mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
30° | ||||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
Stainless Steel |
|
|||
|
Wattage |
6x2 | ||||
