L92
High Lumen Efficacy 12lm/W
Body - Stainless steel 316
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Areas
IP 66/68 IK 07 350mA/500mA
1L92-SS-30-90-0-A
Model L92 |
1L92-SS-30-90-0-A |
||||
|

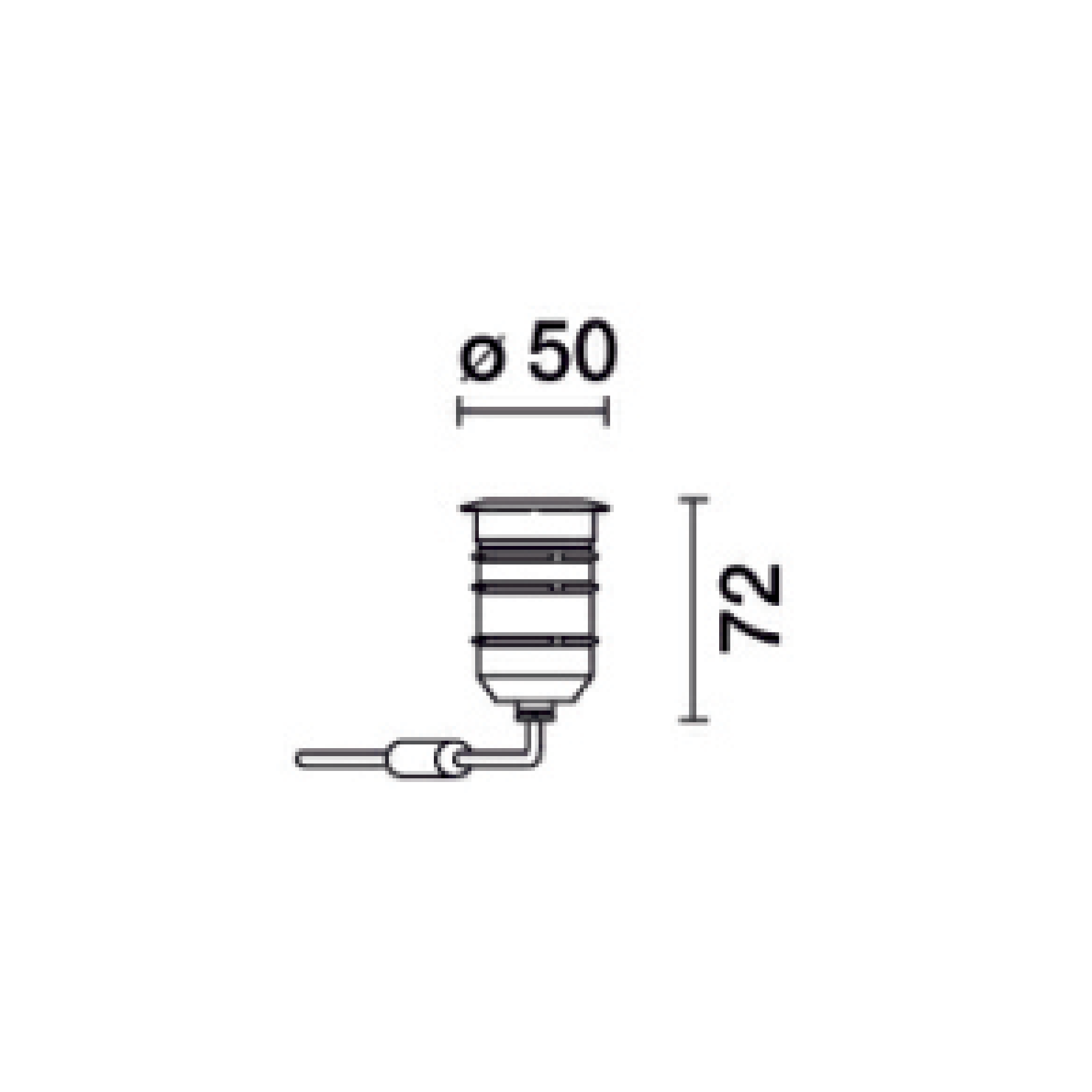

Size |
A Ø50 X 72mm |
B Ø80 X 72mm |
|||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
90° | ||||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
Stainless Steel |
|
|||
|
Wattage |
1 | 3 | 4.2 | ||
