L93
High Lumen Efficacy 120lm/W
Body - Entirely Made of Stainless Steel 316Ti
Diffuser - Toughened Safety Tempered Glass
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Areas
IP 67 IK 07 LED AC220~240V/DC24V
12L93-SS-30-15-0-A
Model L93 |
12L93-SS-30-15-0-A |
|||||
|

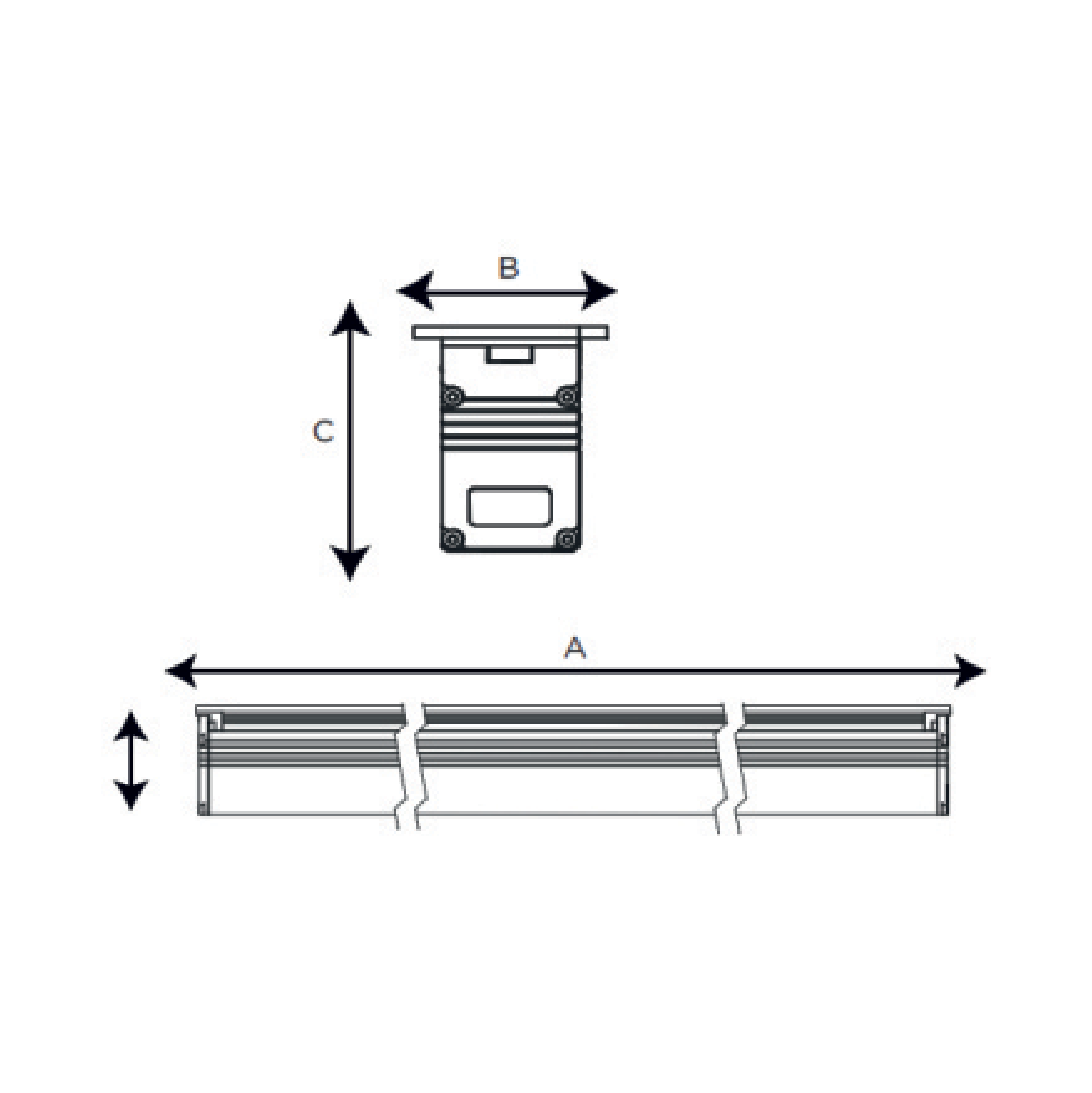

Size |
A A500 X B90 X C70mm |
B A1000 X B90 X C70mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
|
Beam Angle |
15° | 24° | 36° | 45° | 60° | 110° |
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
||
|
Finishing |
Black |
|
||||
|
Wattage |
12 | 18 | 24 | 36 | 40 | 50 |
