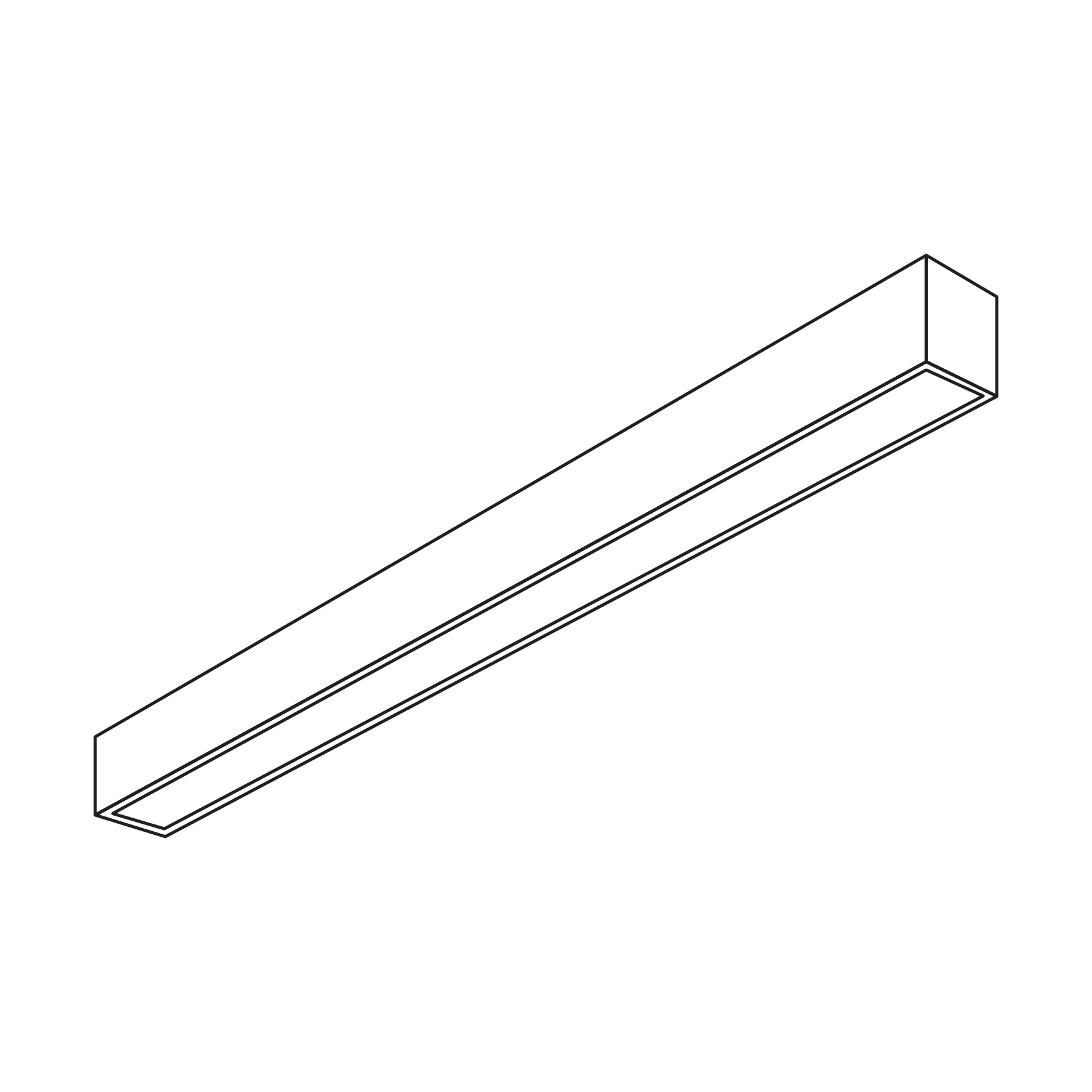

P149
High Lumen Efficacy 130lm/W
Body - Extruded aluminum with polycarbonate diffuser
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 44 IK 08 LED McA Step 3 220~240V
3 5 X 1 5 P 1 4 9 - A L U - 3 0 - 1 2 0 - 0 - A
Model P149 |
3 5 X 1 5 P 1 4 9 - A L U - 3 0 - 1 2 0 - 0 - A |
||||
|
Size |
A 1205 X 80 X 70 H |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
Aluminum | ||||
|
Wattage |
DOWN 35 x UP15 | ||||
