Q22
High Lumen Efficacy 23lm/W Chip - Die Cast Aluminum Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
All Outdoor Areas
IP 67 IK 08 SMD McA Step 4 220~240V
47Q22-W-60-20-0-A
Model Q22 |
47Q22-W-60-20-0-A |
||||
|
Size |

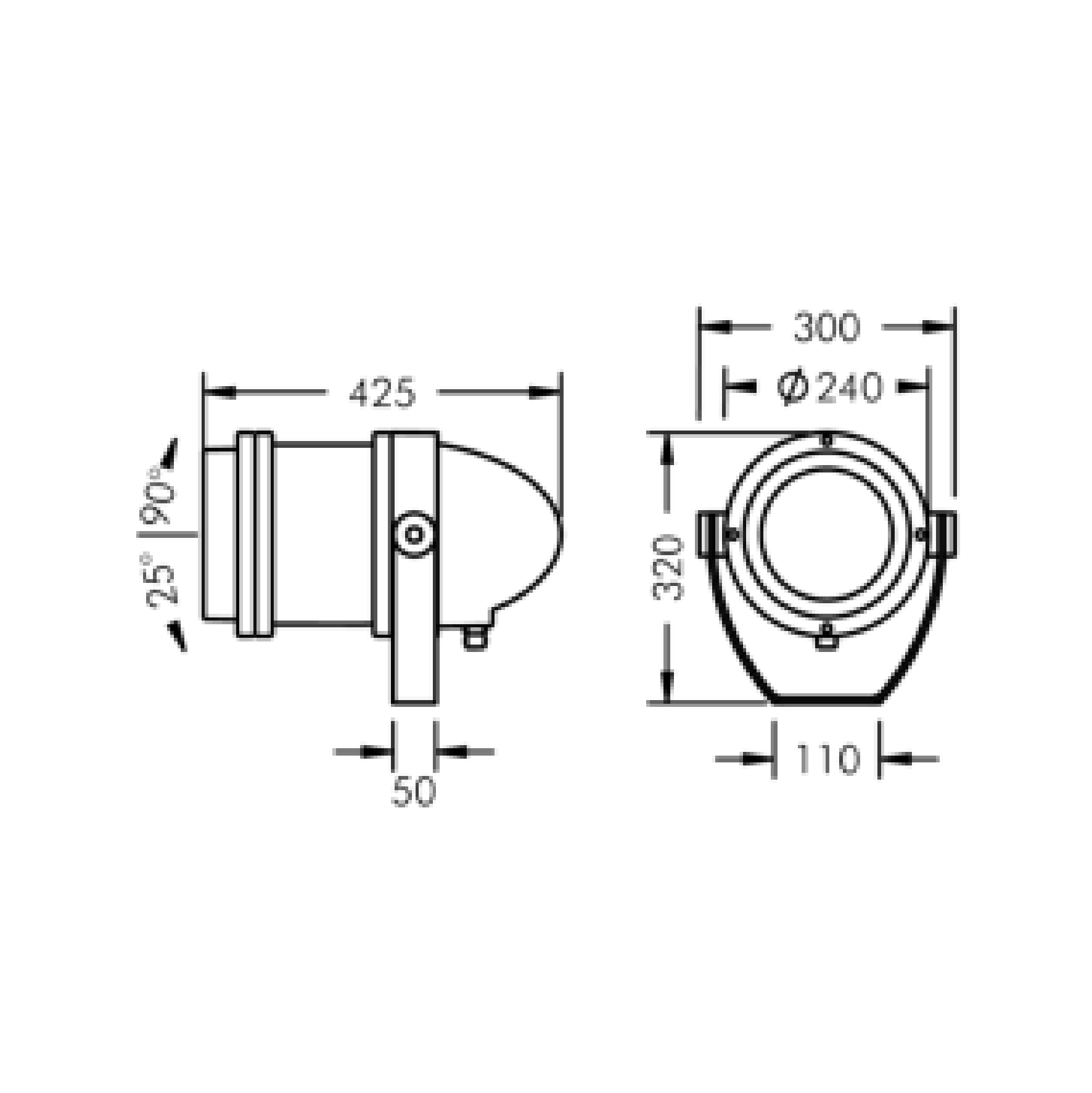

A Ø240 X H425mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
20° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
47 | ||||
