Q28
High Lumen Efficacy 120lm/W Housing - Die Cast Aluminum Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
All Outdoor Areas
IP 67 IK 10 LED McA Step 3 300mA
9Q28-B-30-36-0-A
Model Q28 |
9Q28-B-30-36-0-A |
||||
|
Size |

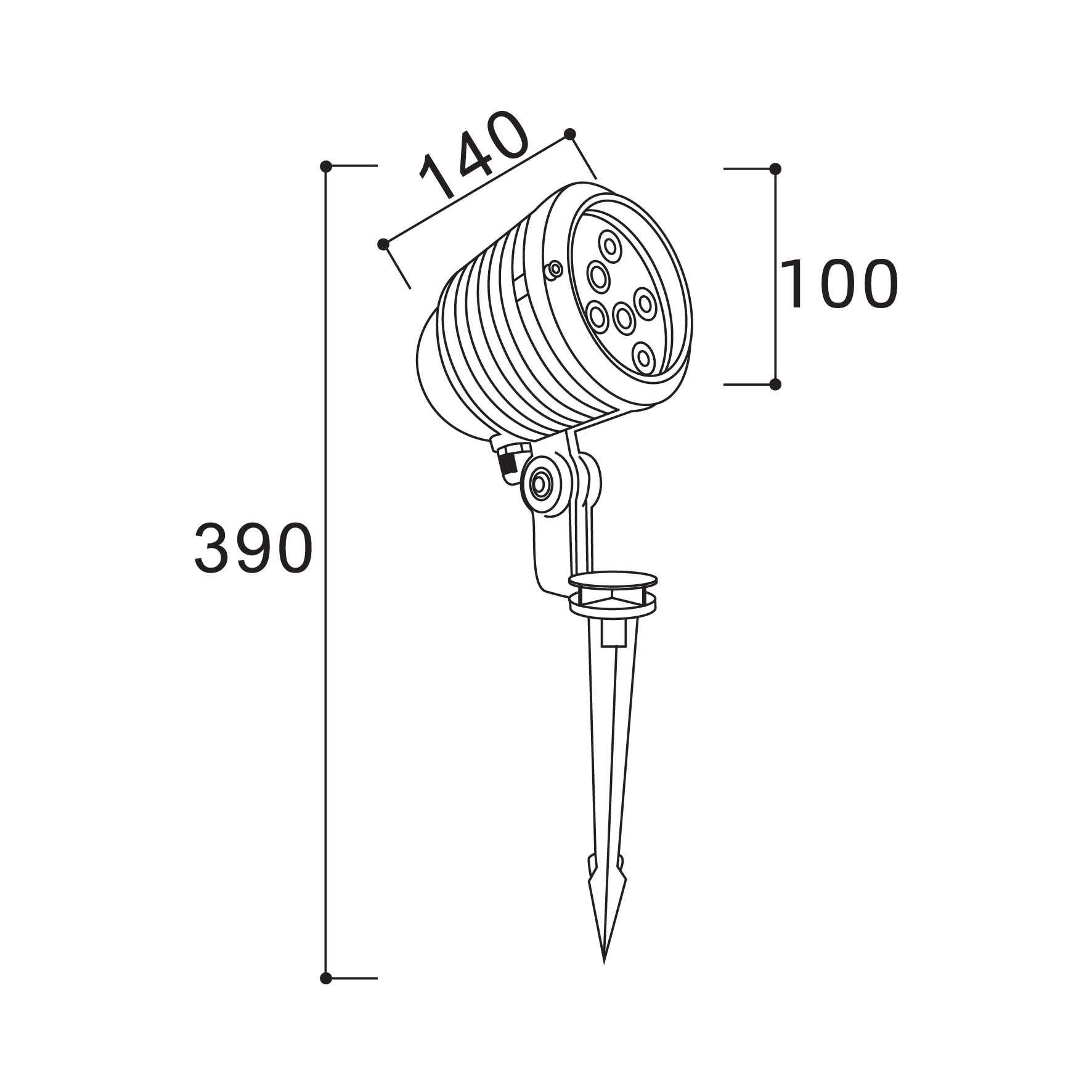

A L100 x W140 x H390 |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
36° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
09 | ||||
