Q31
High Lumen Efficacy 100lm/W Housing - Die Cast Aluminum Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
All Outdoor Areas
IP 65 IK 10 LED McA Step 3 DC24V
2X6Q31-B-30-40-0-A
Model Q31 |
2X6Q31-B-30-40-0-A |
||||
|
Size |

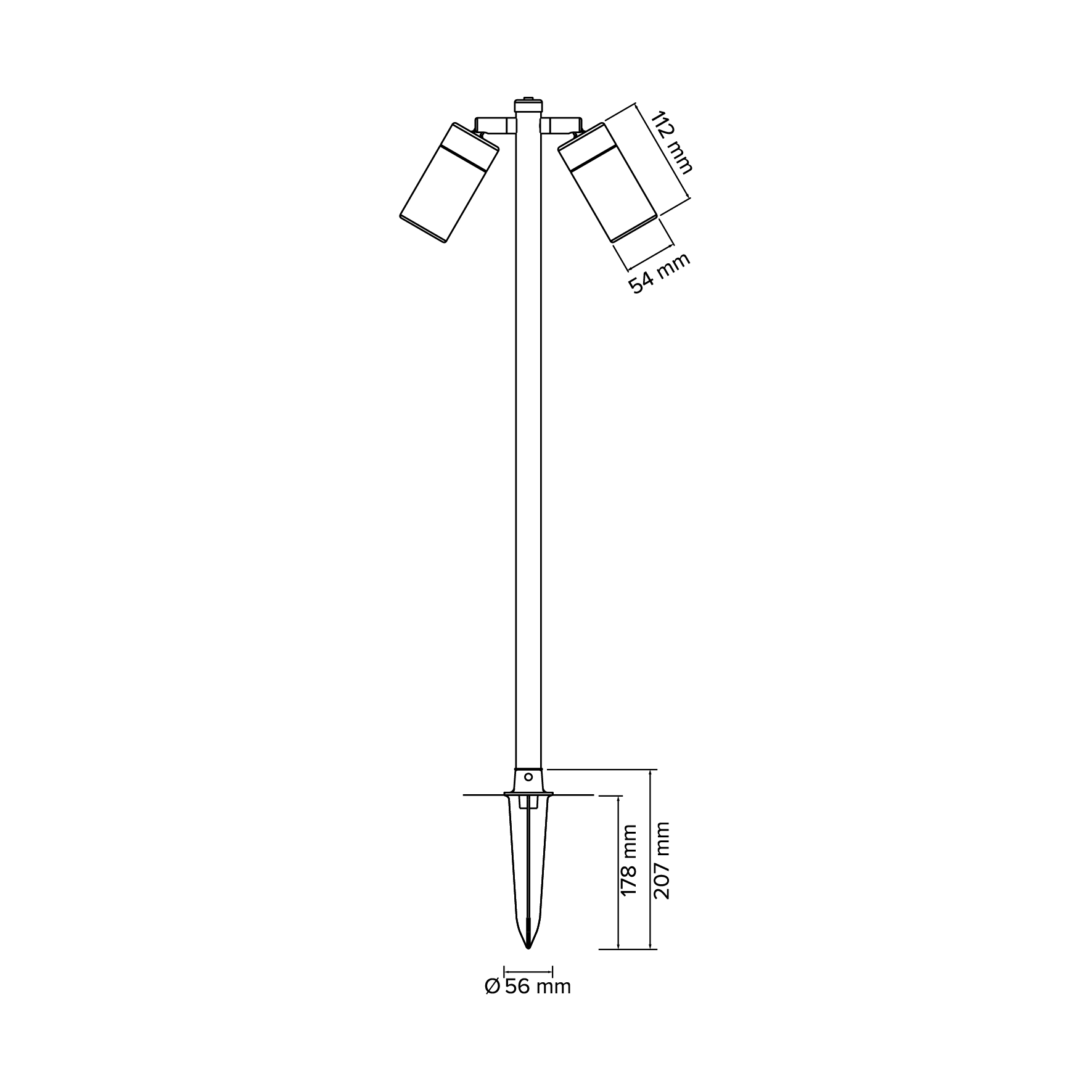

A Ø54 X 684mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
40° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black |
|
|
|
Wattage |
2X6 | ||||
