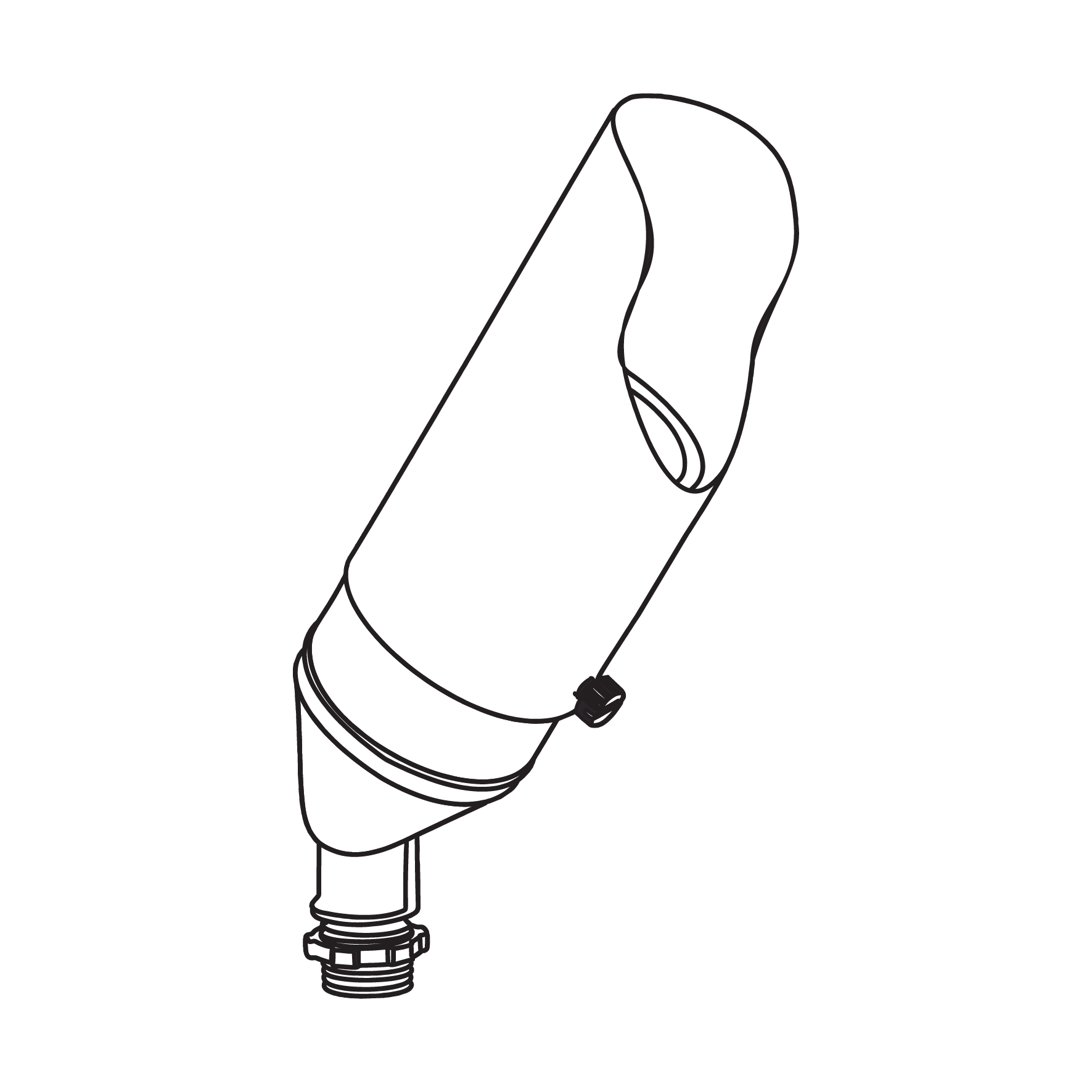

Q34
High Lumen Efficacy 100lm/W Housing - Brass Finished Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - Ill
Installation Instruction
Fixture(s) should be used "ONLY" with low voltage landscape power units
that do not exceed 25A, 15V.
The power units reduce the voltage from 120 volts to 12 volts.
The main cable from power units should be buried for less than 6 inches
under the ground level and can be purchased from your local electric
supply house.
FIELDS OF APPLICATION
Landscape Areas
ACCESSORIES
Brass glare shield, Honeycomb louvre
ground spike, tree belt, long stem ground spike
IP 66 IK 08 LED McA Step 4 AC / DC
11Q34-BR-27-12-1-A
Model Q34 |
11Q34-BR-27-12-1-A |
||||
|
Size |
A Ø60 X 180mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
12° | 29° | 48° |
|
|
|
Kelvin |
27 2700K |
40 4000K |
60 6000K |
||
|
Finishing |
Bronze/Brass |
|
|||
|
Wattage |
11 | ||||
