Q36
High Lumen Efficacy 100lm/W Housing - Brass Finished Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - Ill
Q36 wall washer is designed for landscape lighting. With beams from
narrow to wide, Q36 offers multiple optics options. Single white, RGB and RGB three types of light emitting modes are available. Also, DMX Control enables different applications. 1.8m length option with large power offers more possibilities, such as applies in car wash and entertainments. Optional Installation ways and accessories make it a satisfying product for facades.
FIELDS OF APPLICATION
Facades appearance, Square, Plaza, Business Street, Park, Advertising
Board, Bridge.
IP 66 OSRAM LED McA Step 4 AC220
36Q36-B-27-30-0-A
Model Q36 |
36Q36-B-27-30-0-A |
||||
|
Size |

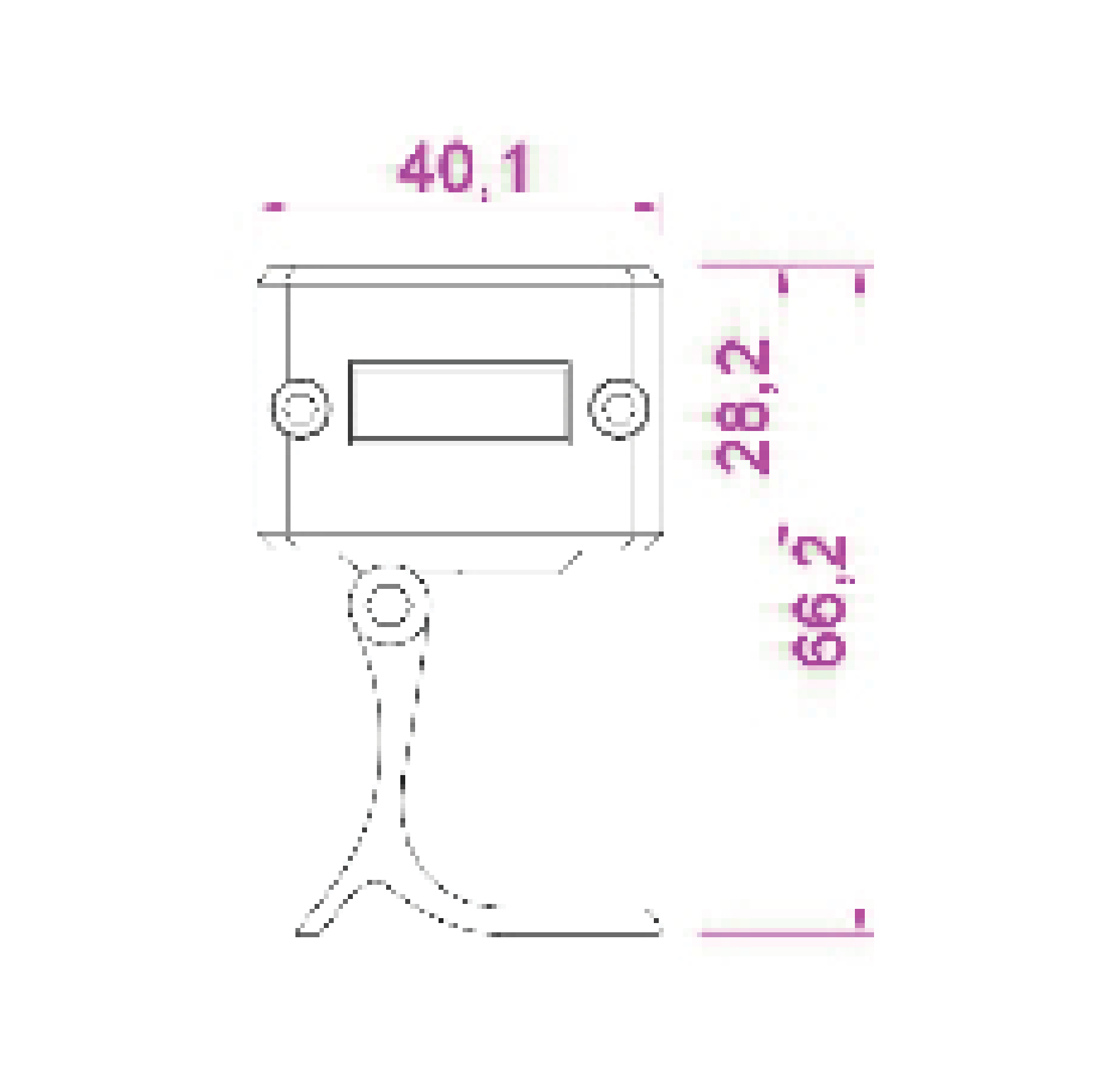

A W40 X H28 X L1000mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
15*30° |
|
|||
|
Kelvin |
27 2700K |
||||
|
Finishing |
White | Black | Special on Request |
|
|
|
Wattage |
36 | ||||
