R61
High Lumen Efficacy 110lm/W Body - Die Cast aluminum with treatment of corrosion protector Diffuser - Clear Glass Glowing Wire Test - 850° Temperature - ta=-20 °C ~ ta max=65 °C Class - I
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Gardens, Parks, Pathways,
IP 65 IK 10 LED McA Step 3 85~265V
6 5 R 6 1 - G - 3 0 - 1 2 0 - 0 - A
Model R61 |
6 5 R 6 1 - G - 3 0 - 1 2 0 - 0 - A |
||||
|
Size |

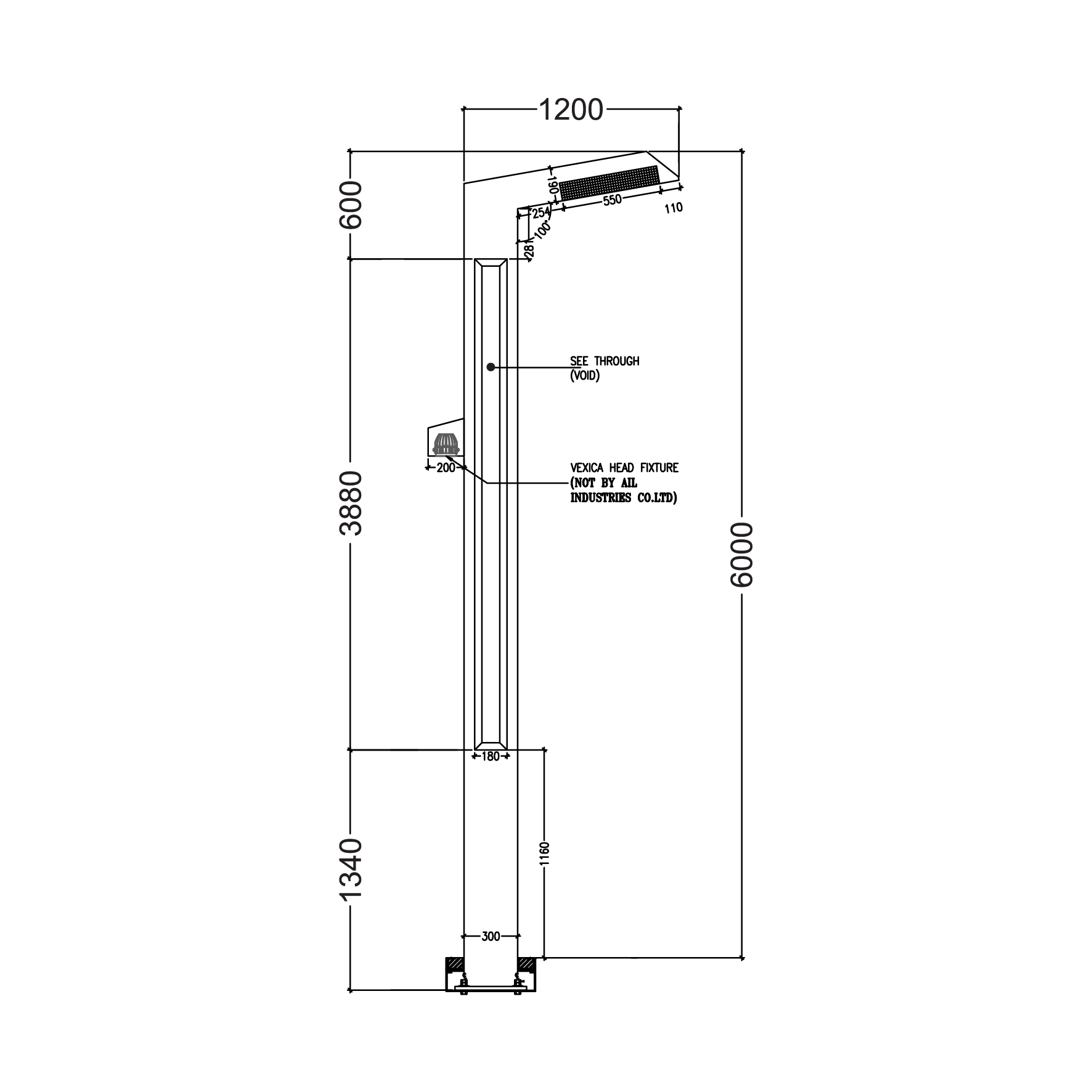

A 1200 X 220 X 6000mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
15° | 30° | |||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
||
|
Finishing |
Grey | ||||
|
Wattage |
65 (30 Lamp) | 85 (30 Lamp) | 105 (30 Lamp) | ||
