R72
High Lumen Efficacy 100~130lm/W Body - Aluminum Glowing Wire Test - 850° Temperature - ta=-20 °C ~ ta max=40 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Gardens, Parks, Pathways,
IP 66 IK 09 LED AC100~277V/AC120~240V
65R72-BK-30-120-0-A
Model R72 |
65R72-BK-30-120-0-A |
||||
|

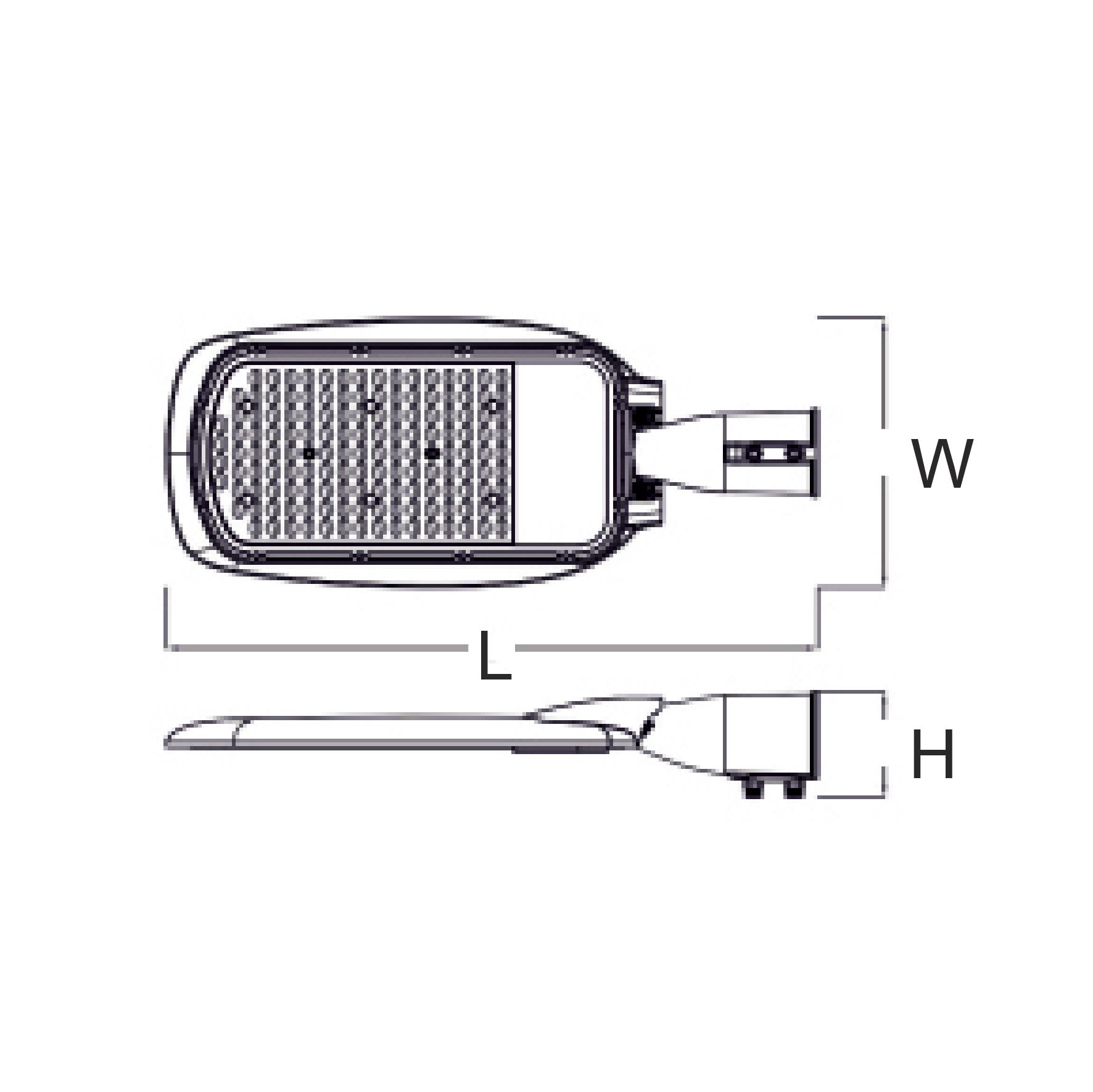

Size |
A L471 x W172 x H91mm |
B L557 x W230 x H91mm |
C L636 x W274 x H91mm |
( Pole Diameter: 50mm/60mm ) | |
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
Black | ||||
|
Wattage |
65 | 115 | 165 | ||
