R77
High Lumen Efficacy 100lm/W Body - Aluminum metal core PCB Diffuser - PC PV module - 5V / 8W (High-efficiencymonocrystalline solarpanel) Glowing Wire Test - 850° Temperature - ta=-20 °C ~ ta max=60 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Gardens, Parks, Pathways,
IP 66 LED DC4.2V LiFeP04 Battery Philips 3030 Chip
10R77-BK-30-120-0-A
Model R77 |
10R77-BK-30-120-0-A |
||||
|
Size |

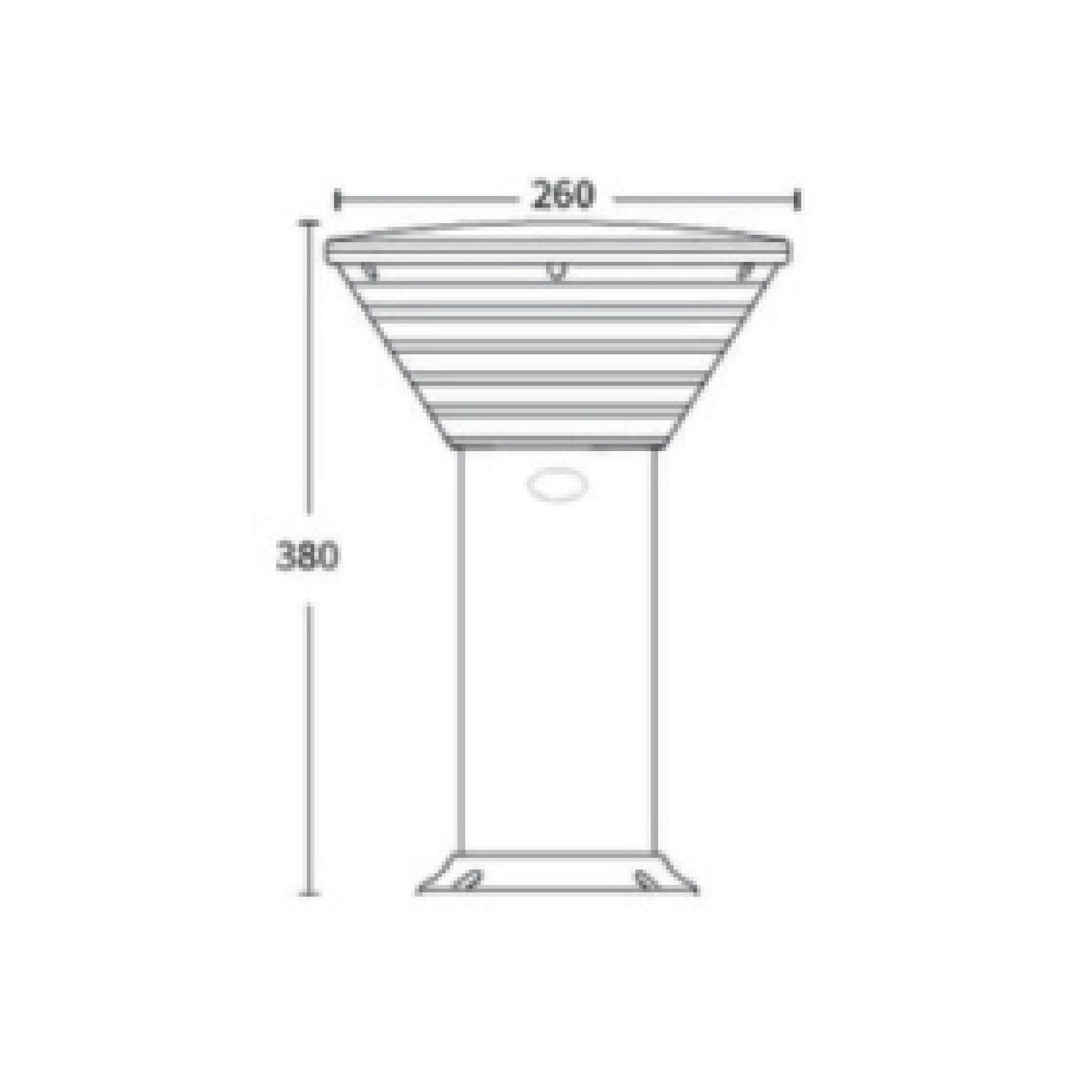

A Ø260 x H380mm ( Aluminum Pole ) |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
Black | ||||
|
Wattage |
10 | ||||
