U15
High Lumen Efficacy Body - Die Cast Aluminum Diffuser - PMMA optical Lens with tempered glass Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Used for 360° fountain jet lighting instead of bulky underwater floodlight.
The slim and fully sealed light provides the installer ease maintenance and installation.
IP 68 IK 09 SMD McA Step 3 DC 24V
1 2 U 1 5 - S S - 2 7 - 1 5 - 0 - A
Model U15 |
1 2 U 1 5 - S S - 2 7 - 1 5 - 0 - A |
||||
|
Size |

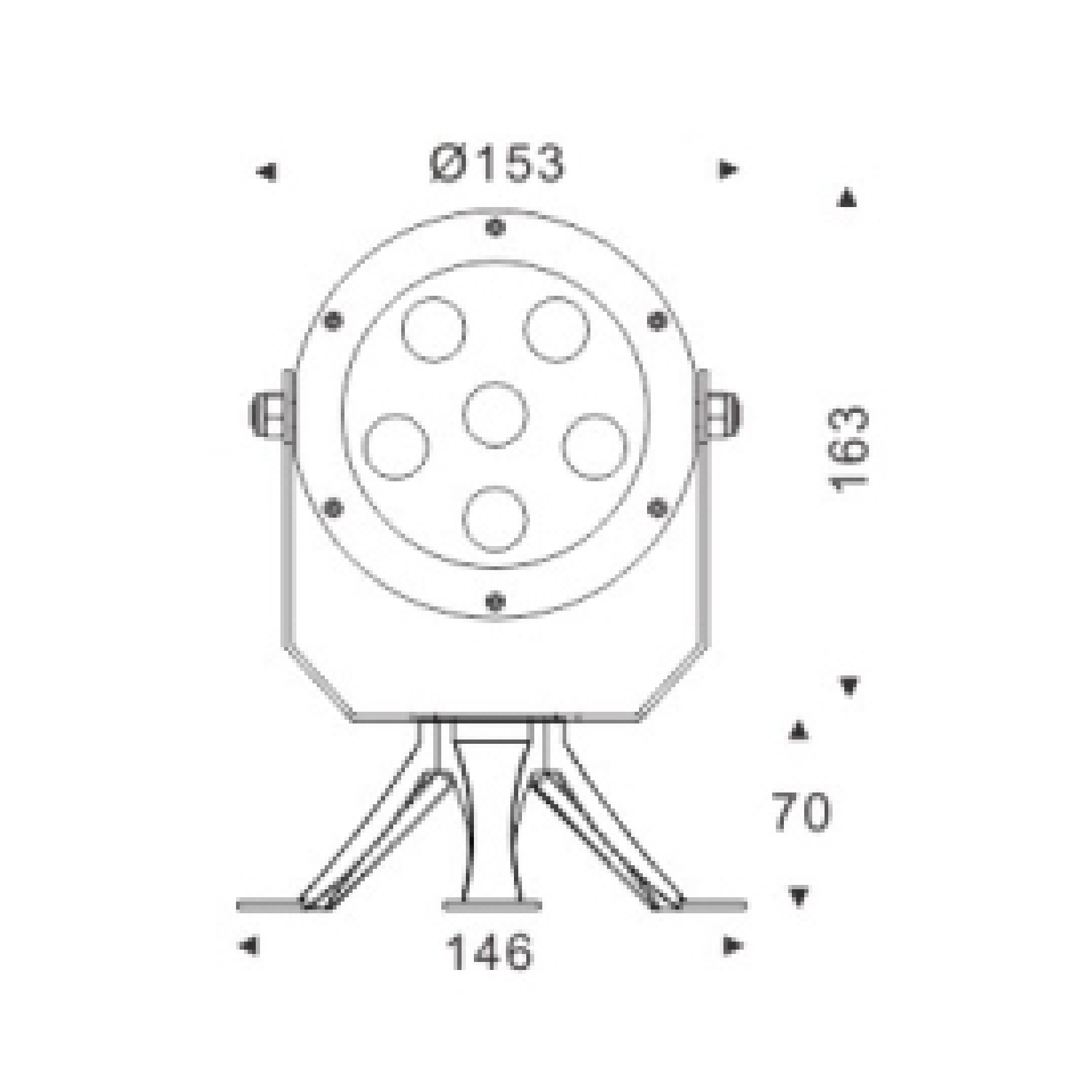

A 153 X 163mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
15° | 30° | 45° | 60° | |
|
Kelvin |
27 2700K |
65 6500K |
R RED |
G GREEN |
B BLUE |
|
Finishing |
SS316L | ||||
|
Wattage |
12 (6 PCS LED’s) | 18 (6 PCS LED’s) | 18 (9 PCS LED’s) | 27 (9 PCS LED’s) | |
