U16
High Lumen Efficacy Body - Die Cast Aluminum Diffuser - PMMA optical Lens with tempered glass Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Used for 360° fountain jet lighting instead of bulky underwater floodlight.
The slim and fully sealed light provides the installer ease maintenance and installation.
IP 68 IK 10 SMD McA Step 3 DC 12/24V
3 U 1 6 - S S - 3 0 - 1 0 - 0 - A
Model U16 |
3 U 1 6 - S S - 3 0 - 1 0 - 0 - A |
||||
|

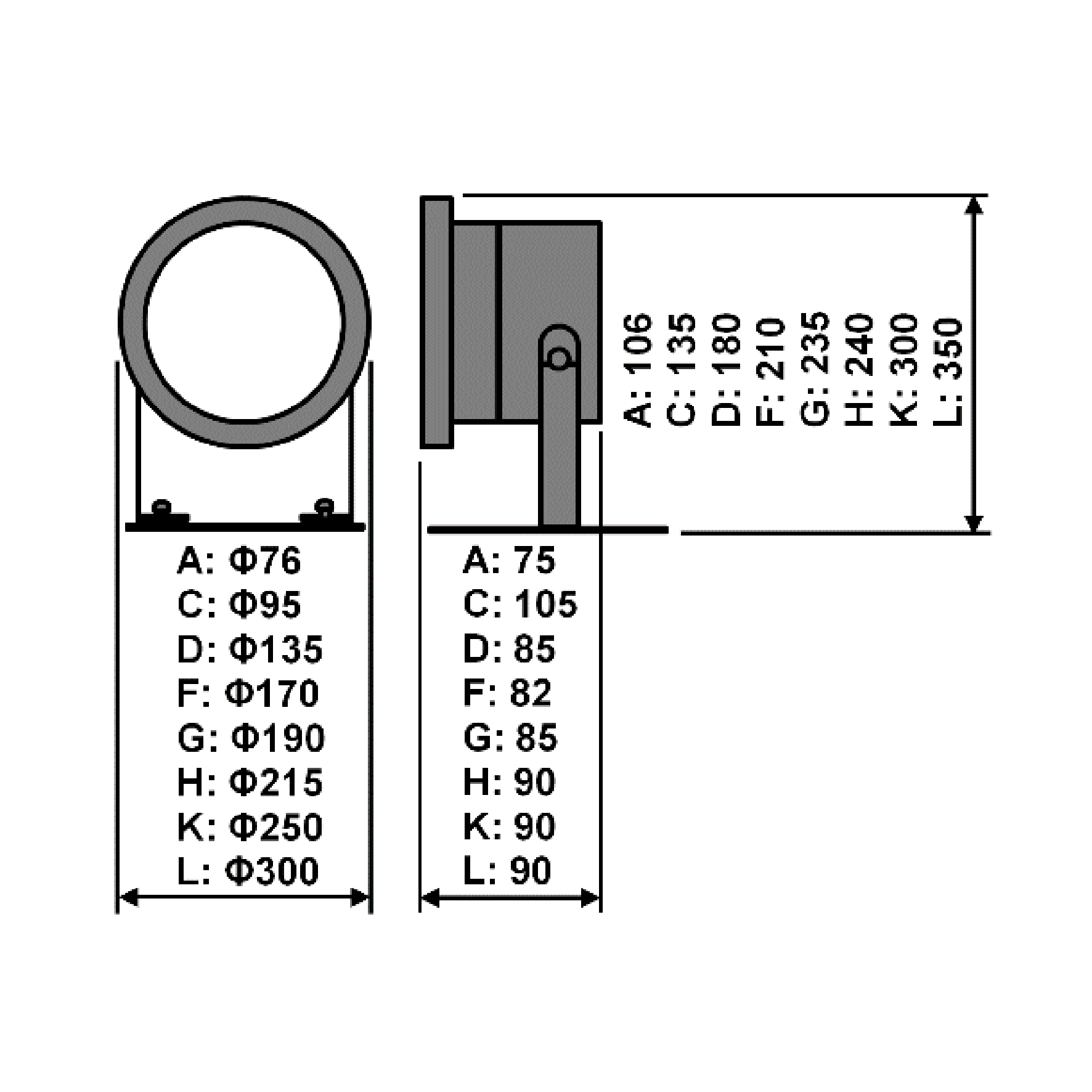

Size |
|||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
10° | 15° | 25° | 30° | 45° |
|
Kelvin |
30 3000K |
40 4000K |
65 6500K |
R RED |
G GREEN |
|
Finishing |
SS316L | ||||
|
Wattage |
03 | 06 | 09 | 12 | 18 |
