W15
High Lumen Efficacy 90lm/W Body - Die Cast Aluminum Diffuser - Clear Tempered Glass Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 07 LED McA Step 3 220~240V
2 X 8 W 1 5 - B - 3 0 - 4 8 - 0 - A
Model W15 |
2 X 8 W 1 5 - B - 3 0 - 4 8 - 0 - A |
||||
|
Size |

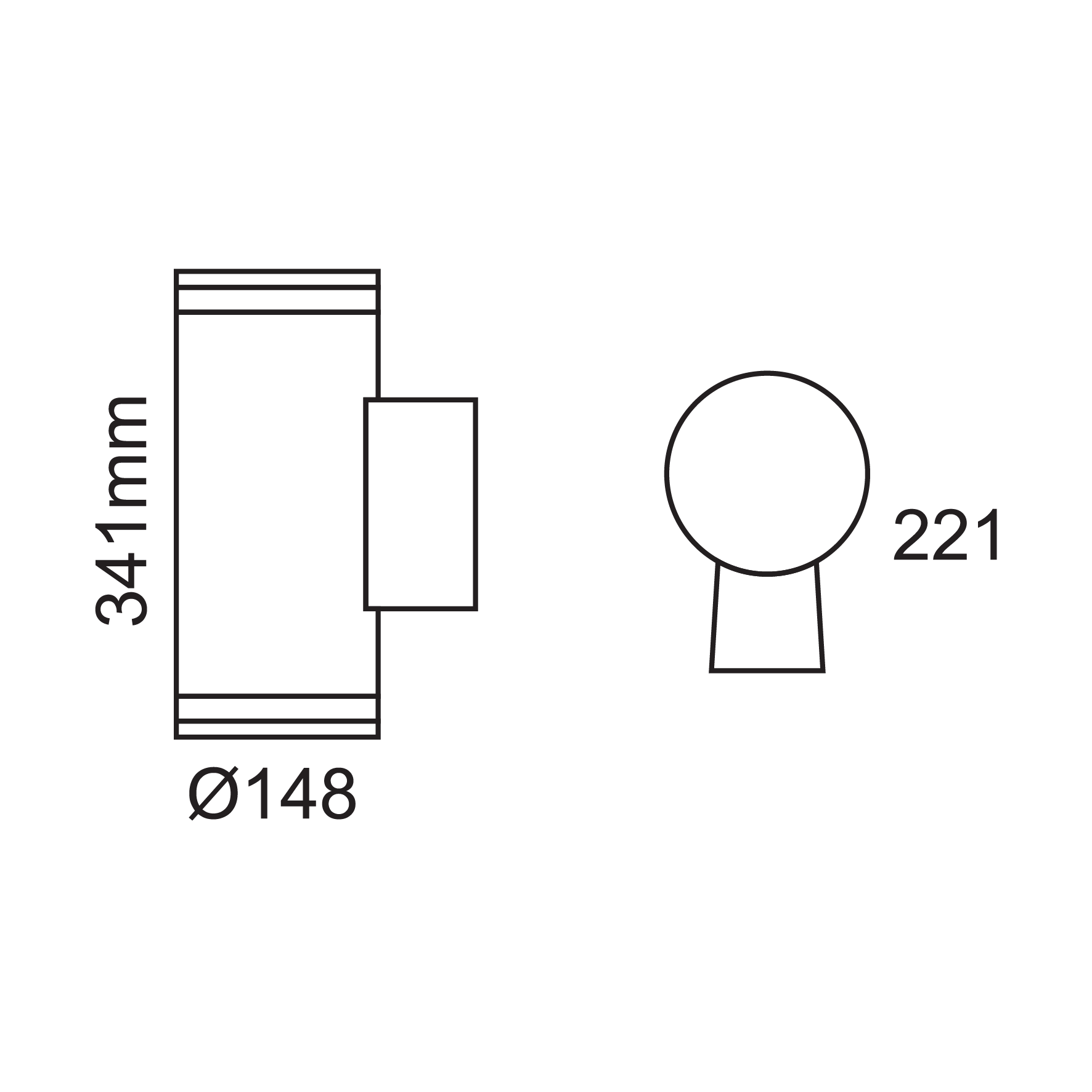

A Ø148 X 221 X 341mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
Finishing |
White | Dark Grey | Black | ||
|
Wattage |
2x8 (16W) | ||||
