W36

High Lumen Efficacy 120lm/W
Body - MARINE GRADE 6060 ALUMINUM
Diffuser - Opal polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - III

Wall surface is a new LED luminaire vandal-resistant up to 150 joules
(IK10++) and marine corrosion resistant thanks to its treatment approved to the Qualanod quality mark, Class 20. Particularly suitable for public transport infrastructures (stations, pedestrian subways, etc.) as well as public spaces and buildings requiring reinforced protection, Urbaline make it possible to provide precise illumination while reducing energy consumption, thanks to its latest-generation LED modules. Lighting management is optimized via optional functions like DALI dimming, switch dimming, and detection with warning and standby (consumption less than 0.5 W in standby). Recyclable and employing recycled materials, it is upgradeable thanks to its plug-in repairable components.

IP 65     IK 10     LED     McA Step 3     220~240V

1 1 W 3 6 - W - 3 0 - 0 - A



 Model W36

1 1 W 3 6 - W - 3 0 - 0 - A

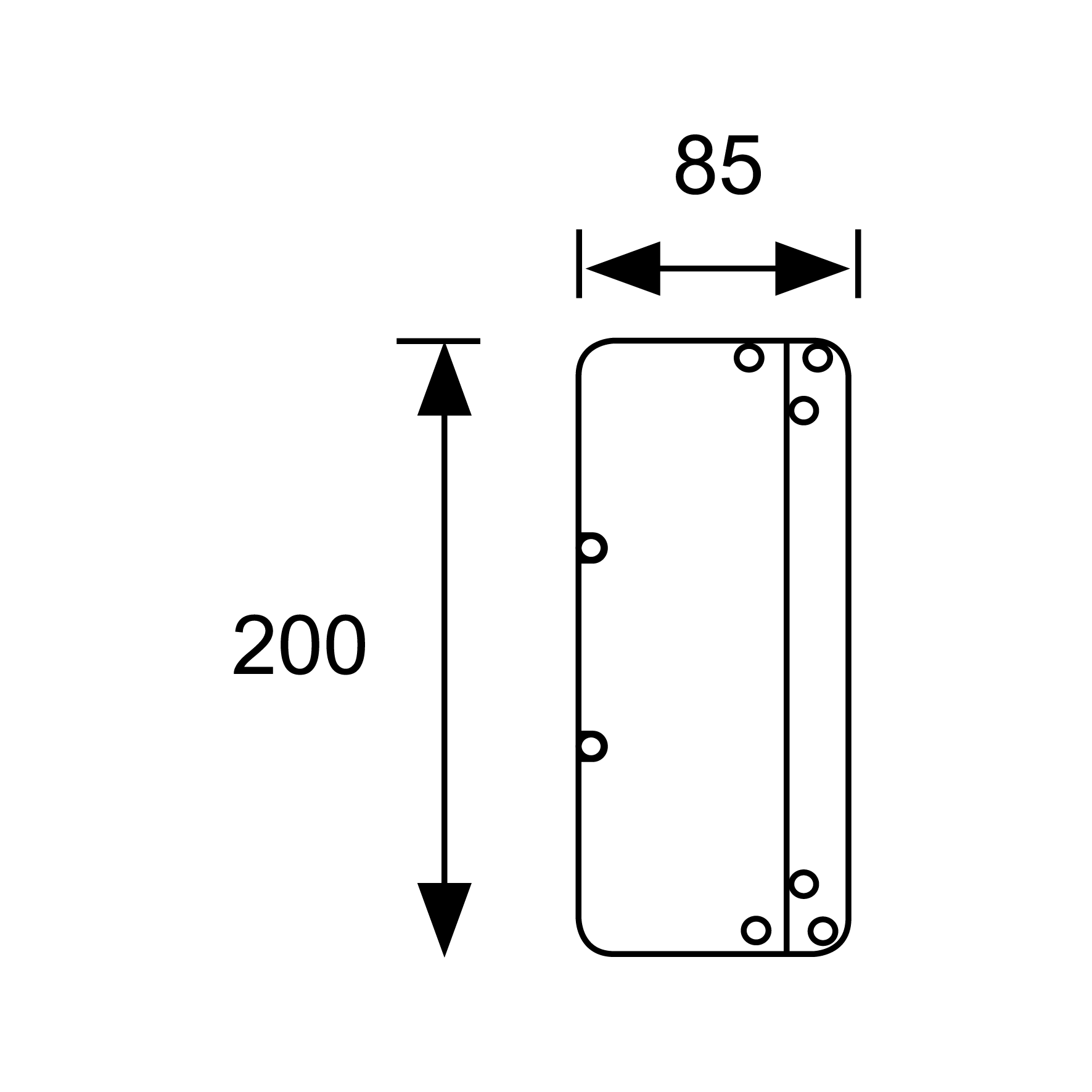

Size

A
370 / 435 X 85 X 200mm
B
650 / 715 X 85 X 200mm

C
930 / 995 X 85 X 200mm

D
1210 / 1275 X 85 X 200mm



Driver

0
On/Off
1
Dali
2
Dimmable
3
Phase Dimming
4
1-10

Beam Angle



Kelvin

30
3000K
40
4000K
60
6000K


Finishing

White Dark Grey Black

Wattage

12 18 20 43 30
