W37
High Lumen Efficacy 130lm/W Body - Steel Body powder coating with MARINE GRADE 6060 Diffuser - Opal polycarbonate Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Wall surface is a new LED luminaire vandal-resistant up to 150 joules
(IK10++) and marine corrosion resistant thanks to its treatment approvedto the Qualanod quality mark, Class 20.
Particularly suitable for public transport infrastructures (stations, pedestrian subways, etc.) as well as public spaces and buildings requiring reinforced protection, Urbaline make it possible to provide precise illumination while reducing energy consumption, thanks to its latest-generation LED modules. Lighting management is optimized via optional functions like DALI dimming, switch dimming, and detection with warning and standby (consumption less than 0.5 W in standby).
Recyclable and employing recycled materials, it is upgradeable thanks to its plug-in repairable components.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 65 IK 10 LED McA Step 3 220~240V
1 1 W 3 7 - A L U - 3 0 - 0 - A
Model W37 |
1 1 W 3 7 - A L U - 3 0 - 0 - A |
||||
|
Size |

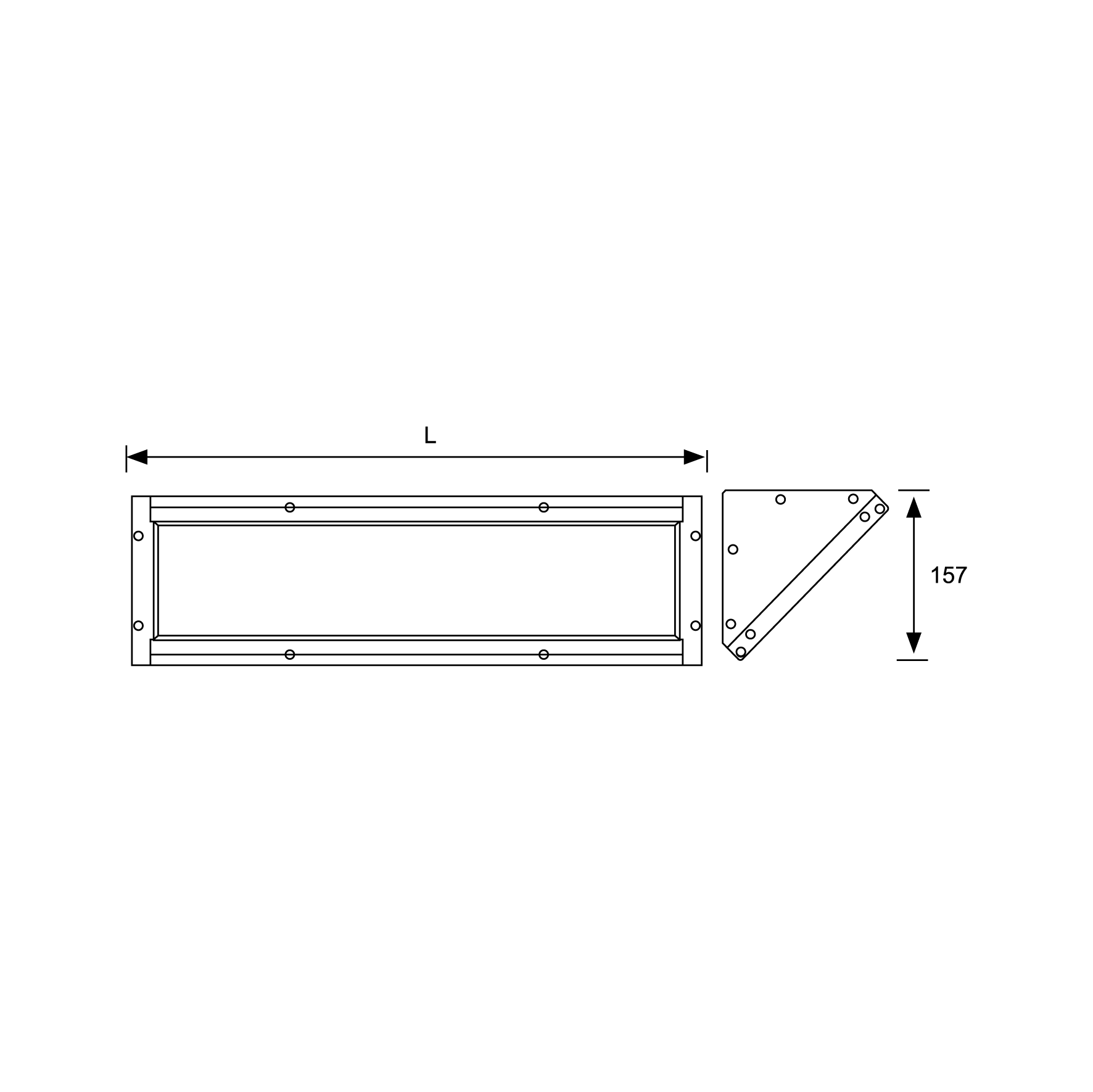

A 370 / 435 X 85 X 200mm |
B 650 / 715 X 85 X 200mm |
C 930 / 995 X 85 X 200mm |
D 1210 / 1275 X 85 X 200mm |
|
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
|||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
White | Dark Grey | Black | ||
|
Wattage |
11 | 17 | 21 | 43 | 31 |
