W96
High Lumen Efficacy 65lm/W Body - Aluminum Diffuser - PMMA Optical Lens Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - III
Simple and easy appearance, in line with contemporary aesthetic
concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
All indoor and outdoor wall areas
IP 54 IK 06 SMD 220-240V / 50/60Hz
6W96-B-30-90-0-A
Model W96 |
6W96-B-30-90-0-A |
||||
|
Size |

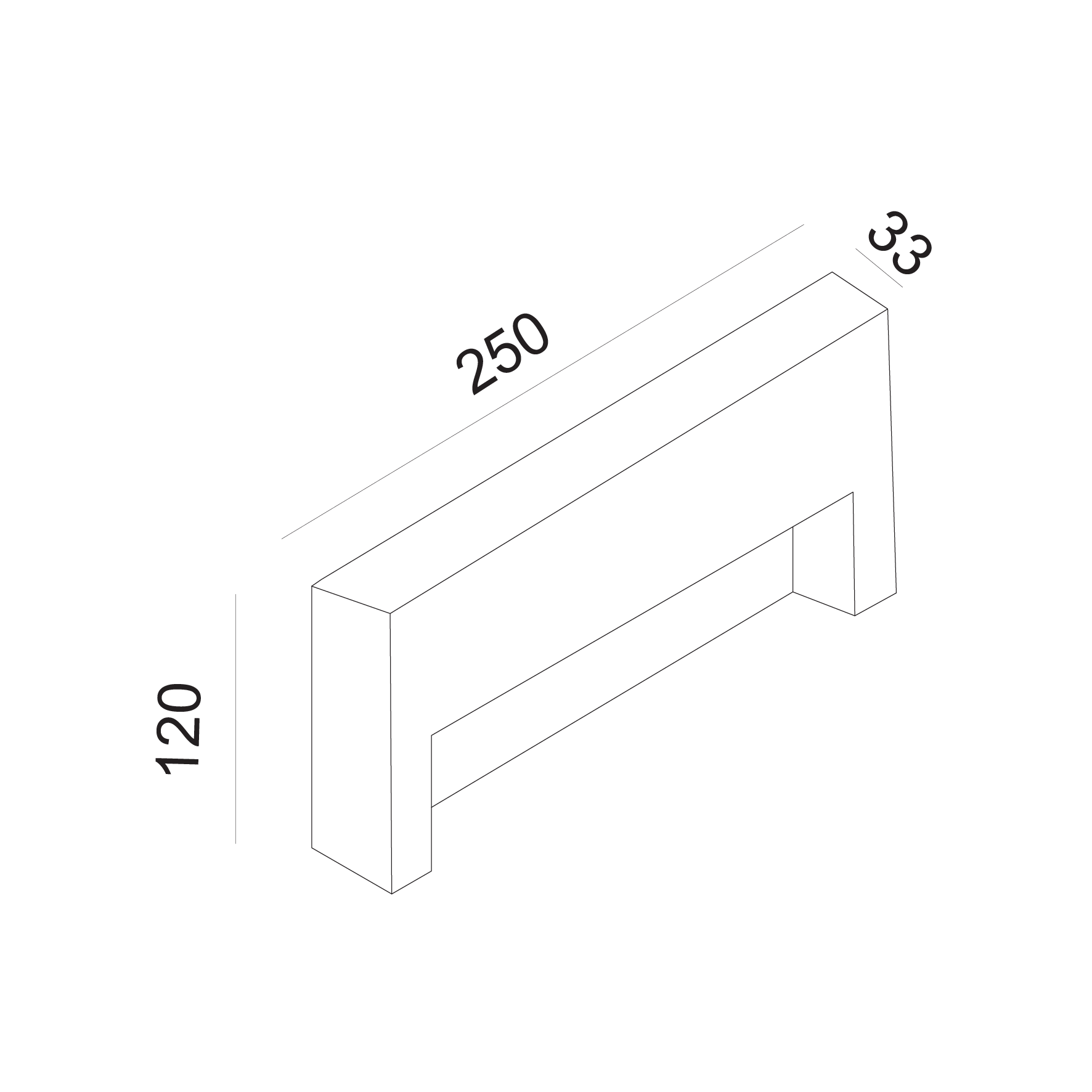

A 250 x 33 x 120mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
90° | ||||
|
Kelvin |
30 3000K |
40 4000K |
60 6000K |
||
|
Finishing |
Black | ||||
|
Wattage |
6 | ||||
