B117
High Lumen Efficacy 70lm/W
Body - Die cast aluminum
Reflector - Aluminum
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 54 COB McA Step 3 220~240V
3 B 1 1 7 - W - 3 5 - 2 8 - 0 - A
Model B117 |
3 B 1 1 7 - W - 3 5 - 2 8 - 0 - A |
||||
|
Size |

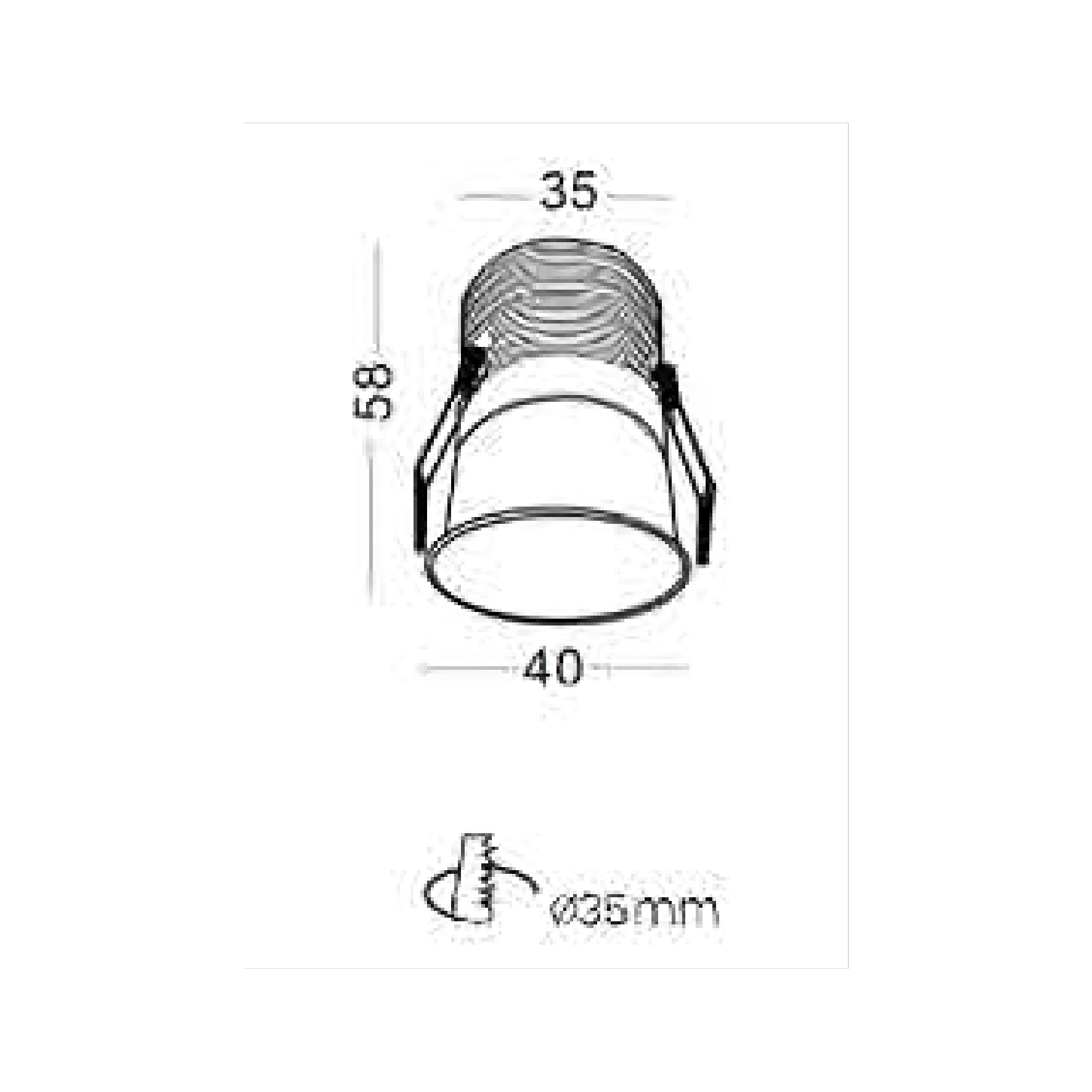

A Ø40 X 58mm / Cutout Ø35mm |
|
|||
|
Driver |
0 |
1 |
2 |
3 |
4 |
|
Beam Angle |
28° |
|
|||
|
Kelvin |
30 |
35 |
40 |
45 4500K |
60 6000K |
|
Finishing |
White | Gray | Black |
|
|
|
Wattage |
03 |
||||
