E317
High Lumen Efficacy
Body - Die cast aluminum
Diffuser - Polycarbonate
Glowing Wire Test - 850°
Temperature - ta=20 °C ~ ta max=50 °C
Class - Ill
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Office & Education, offices, open-plan offices, conference rooms,
conference rooms, reception areas, counters, galleries, hotels,
restaurants, living spaces
IP 20 IK 06 SMD McA Step 3 220~240V
3 0 E 3 1 7 - W - 3 0 - 3 7 - 0 - A
Model E317 |
3 0 E 3 1 7 - W - 3 0 - 3 7 - 0 - A |
||||
|
Size |

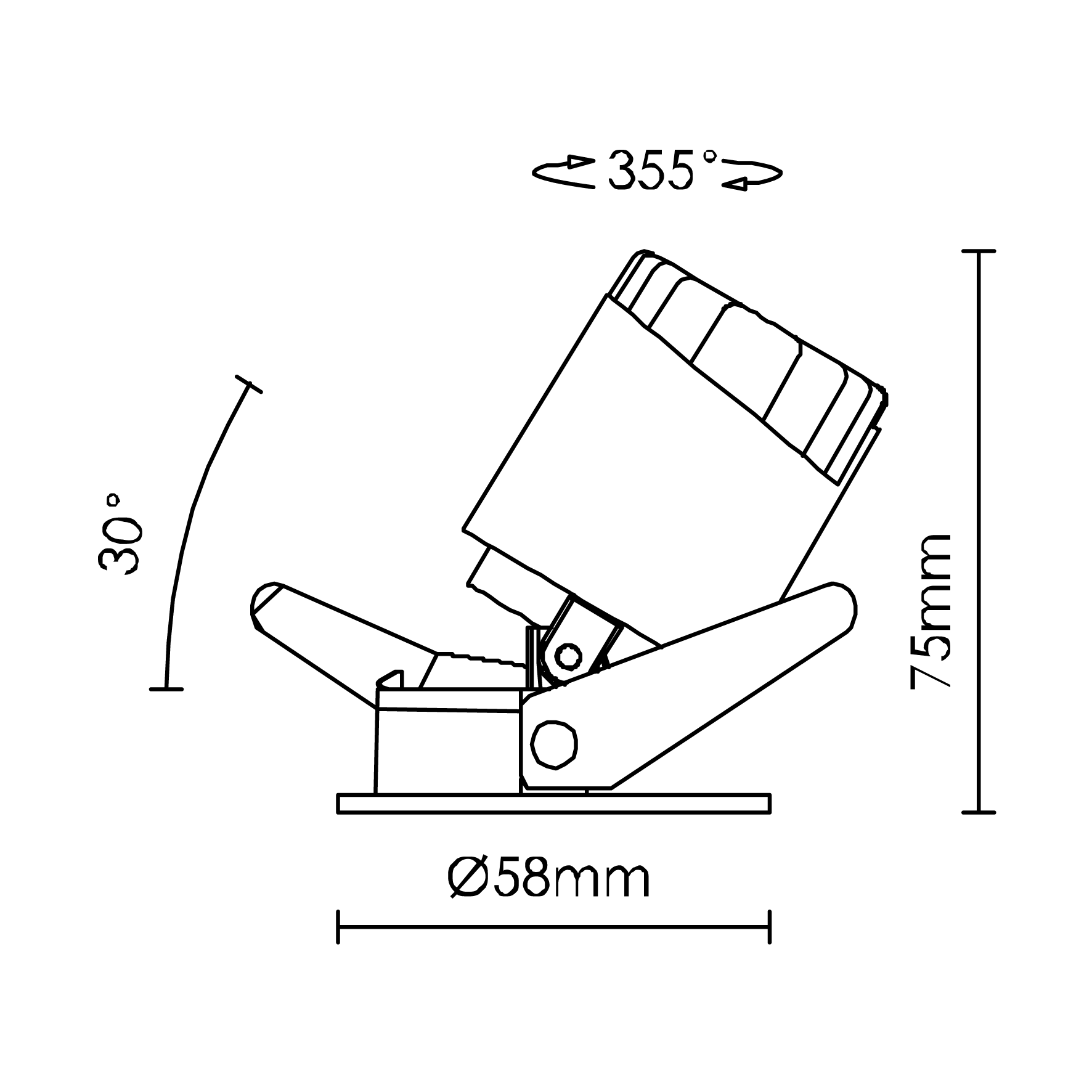

A Ø58 X 75mm - Cutout Ø52mm (Frame less) |
B Ø85 X 75mm - Cutout Ø52mm |
C Ø85 X 108mm - Cutout Ø75mm (Frame less) |
D Ø127 X 108mm - Cutout Ø75mm |
E Ø105 X 126mm - Cutout Ø95mm (Frame less) |
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
18° | 22° | 28° | 30° |
36° |
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
|
|
Finishing |
White |
|
|||
|
Wattage |
07 | 12 | 20 | 30 | |
