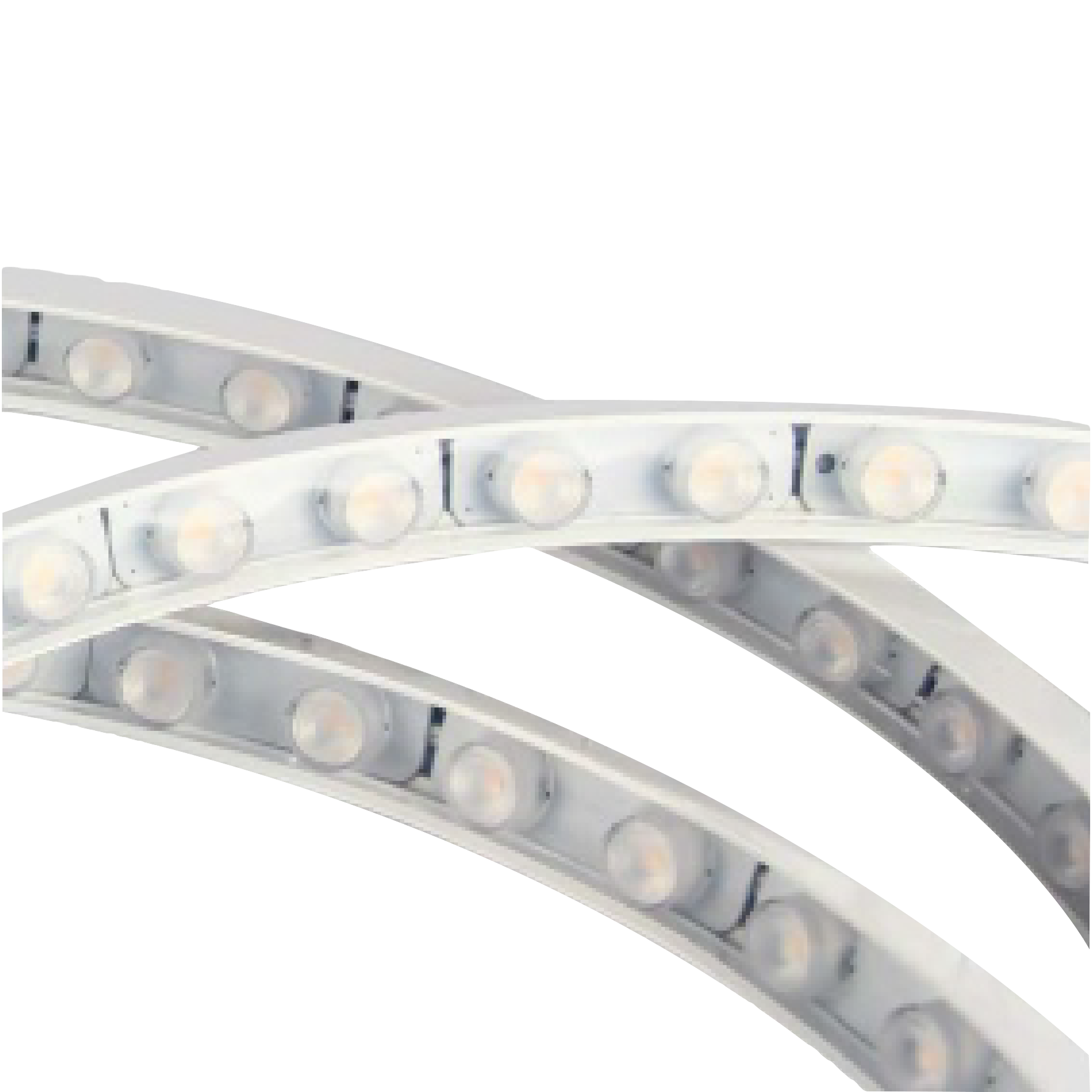

F16
High Lumen Efficacy
Body - Food grade silicone material, environmental protection,
high light transmittance, ultraviolet radiation resistance,
yellowing resistance, strong weather resistance
Glowing Wire Test - 850°
Temperature - ta=-20 °C ~ ta max=65 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Outdoor Gardens, Parks, Pathways,
IP 65 IK 06 SMD McA Step 2/3 24V DC
2 0 F 1 6 - G - 3 0 - 2 0 - 0 - A
Model F16 |
2 0 F 1 6 - G - 3 0 - 2 0 - 0 - A |
||||
|
Size |

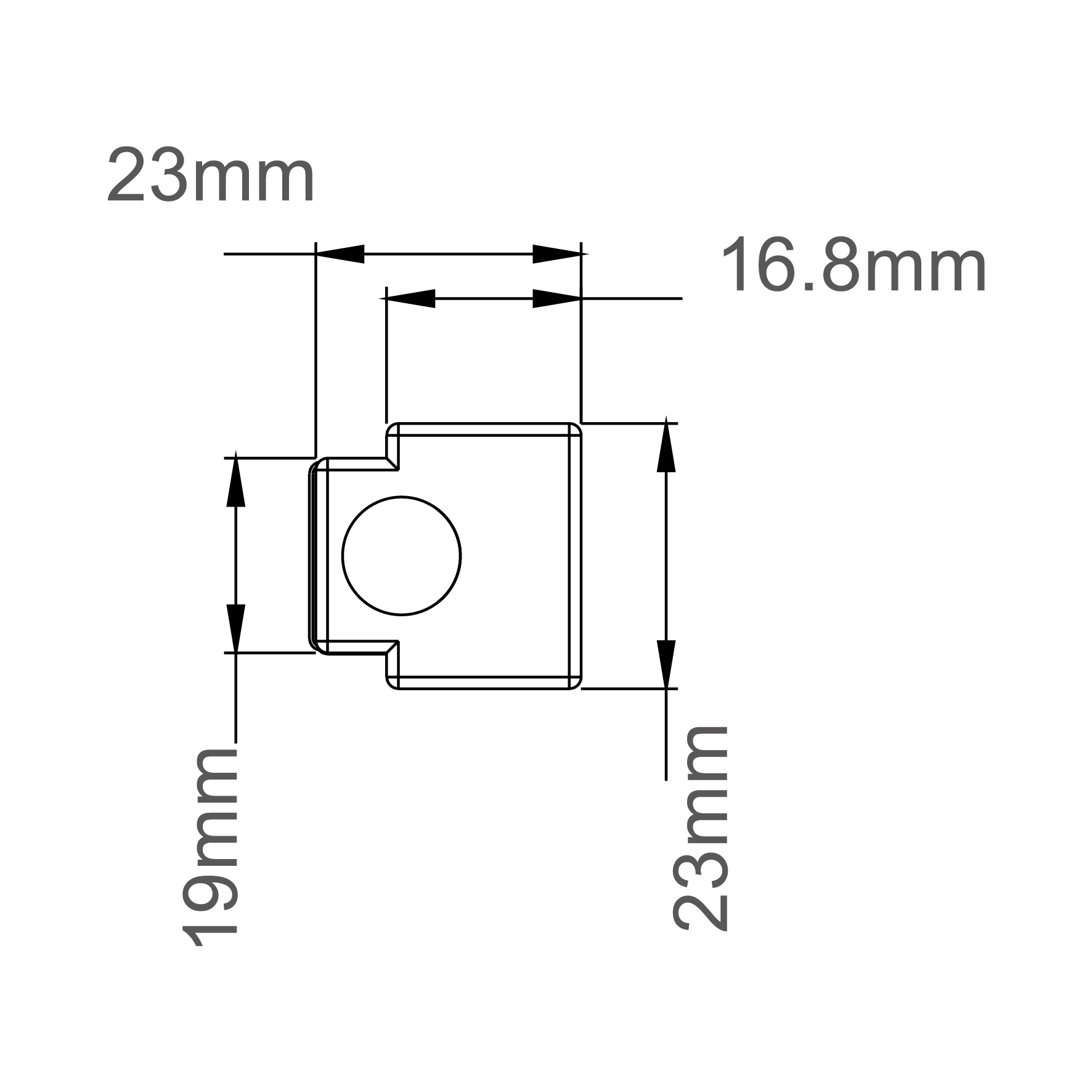

A As stated in drawing |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
20° | 30° | 45° | 10x30° |
|
|
Kelvin |
27 2700K |
30 3000K |
40 4000K |
60 6000K |
R RED |
|
Finishing |
White |
|
|||
|
Wattage |
20W/M | ||||
