F22
High Lumen Efficacy 85lm/W
Body - High Quality Stainless Steel
Diffuser - Tempered Glass
Glowing Wire Test - 850°
Temperature - ta=-10 °C ~ ta max=50 °C
Simple and easy appearance, in line with contemporary aesthetic concept. The product has the structure and appearance design patent. The lamp body adopts high-pressure cast aluminum and aluminum alloy, the surface is coated with outdoor used powder , double anti-corrosion to extend service life. This lawn lamp series uses LED. High efficiency constant current driver, ensure the light source is maximum used.
FIELDS OF APPLICATION
Facade Lights
IP 65/67 LED DC 24V
6F22-B-3000-180-0-A
Model F22 |
6F22-B-3000-180-0-A |
||||
|

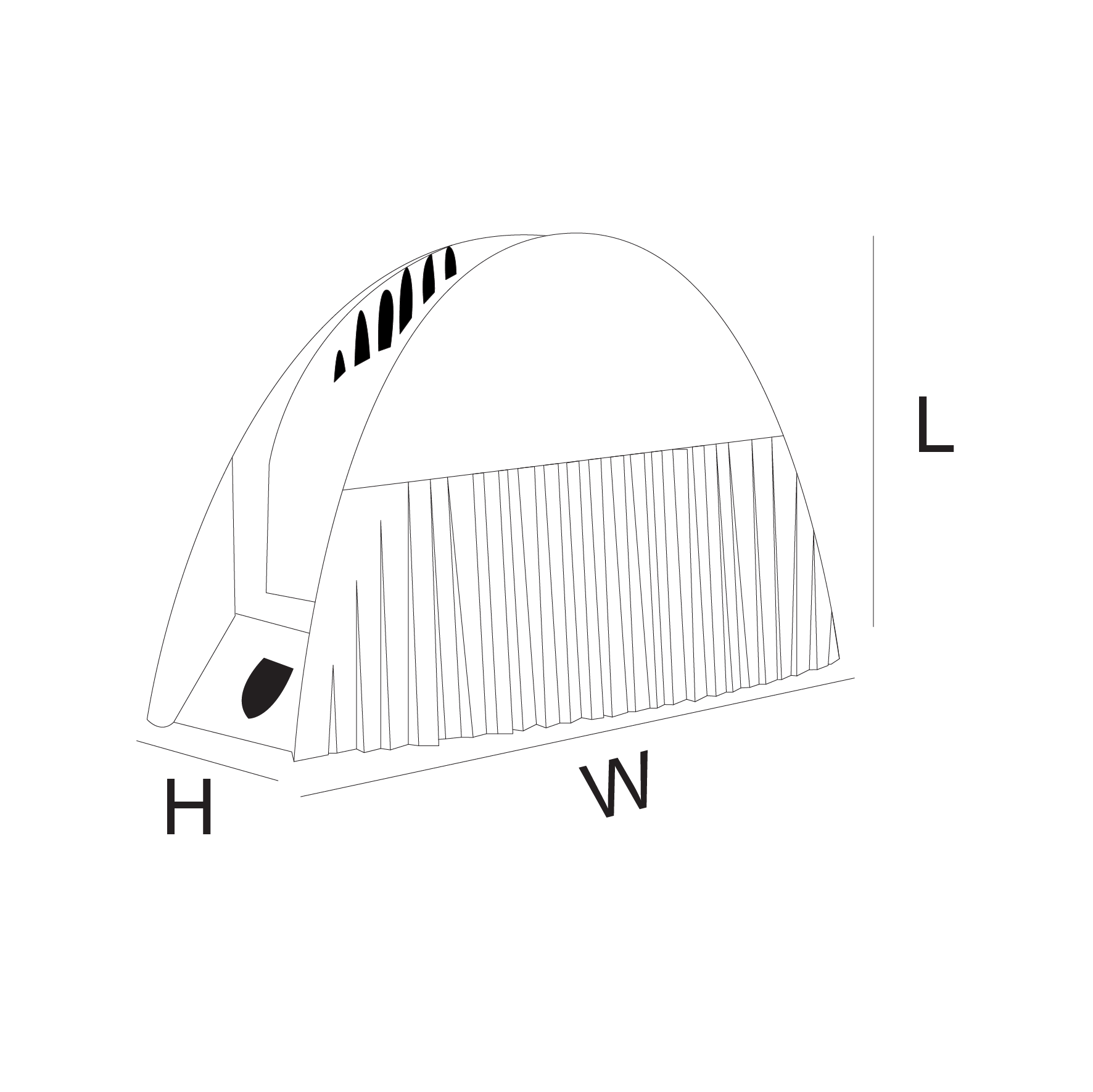

Size |
A W55 x H80 x L145mm |
||||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
2*180° |
|
|||
|
Kelvin |
30 3000K |
40 4000K |
50 5000K |
60 6000K |
RGB |
|
Finishing |
Black |
|
|||
|
Wattage |
6 | 12 | |||
