K59
High Lumen Efficacy Body - Stainless Steel Glowing Wire Test - 850° Temperature - ta=20 °C ~ ta max=50 °C Class - I
The main body shell material is made of stretched aluminum, the surface is anodized, anti-aging, anti-ultraviolet, lighttransmittance is 80%, anti-UV radiation. RGBW, RGB, Monochrome and other light source combination to meet more requirements.Imported material deffuser, uniform and soft light effect,to ensure surface brightness. Minmized glare pollution, increese visual confort. color resolution 16Bit,the picture more elicate and smooth. Build-in electronic driver with over-temperature overload protection
IP 65 IK 09 LED SMD McA Step 3 DC24V
3 K 5 9 A L U - R G B - 1 2 0 - A
Model K59 |
3 K 5 9 A L U - R G B - 1 2 0 - A |
||||
|

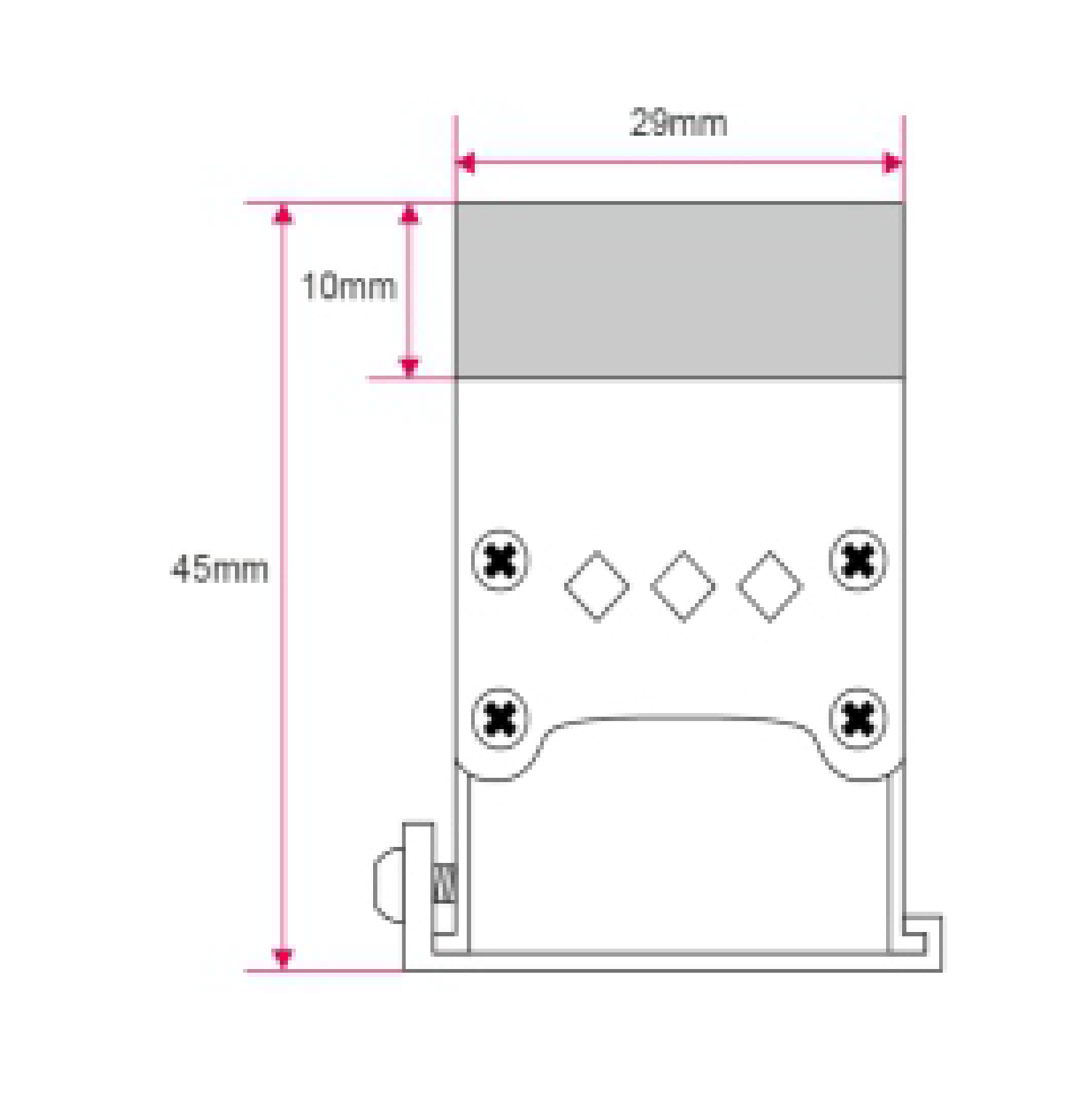

Size |
A 1000 x 29 x 45 mm |
B 500 x 29 x 45 mm |
C 300 x 29 x 45 mm |
||
|
Driver |
0 On/Off |
1 Dali |
2 Dimmable |
3 Phase Dimming |
4 1-10 |
|
Beam Angle |
120° | ||||
|
Kelvin |
30 3000K |
RGB | RGBW | ||
|
Finishing |
Aluminum | ||||
|
Wattage |
03 | 06 | 12 | ||
